Coreless Motor 7x20mm + Propeller (55mm) Pair

Part no. 10230107

$3.00
Sold out
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

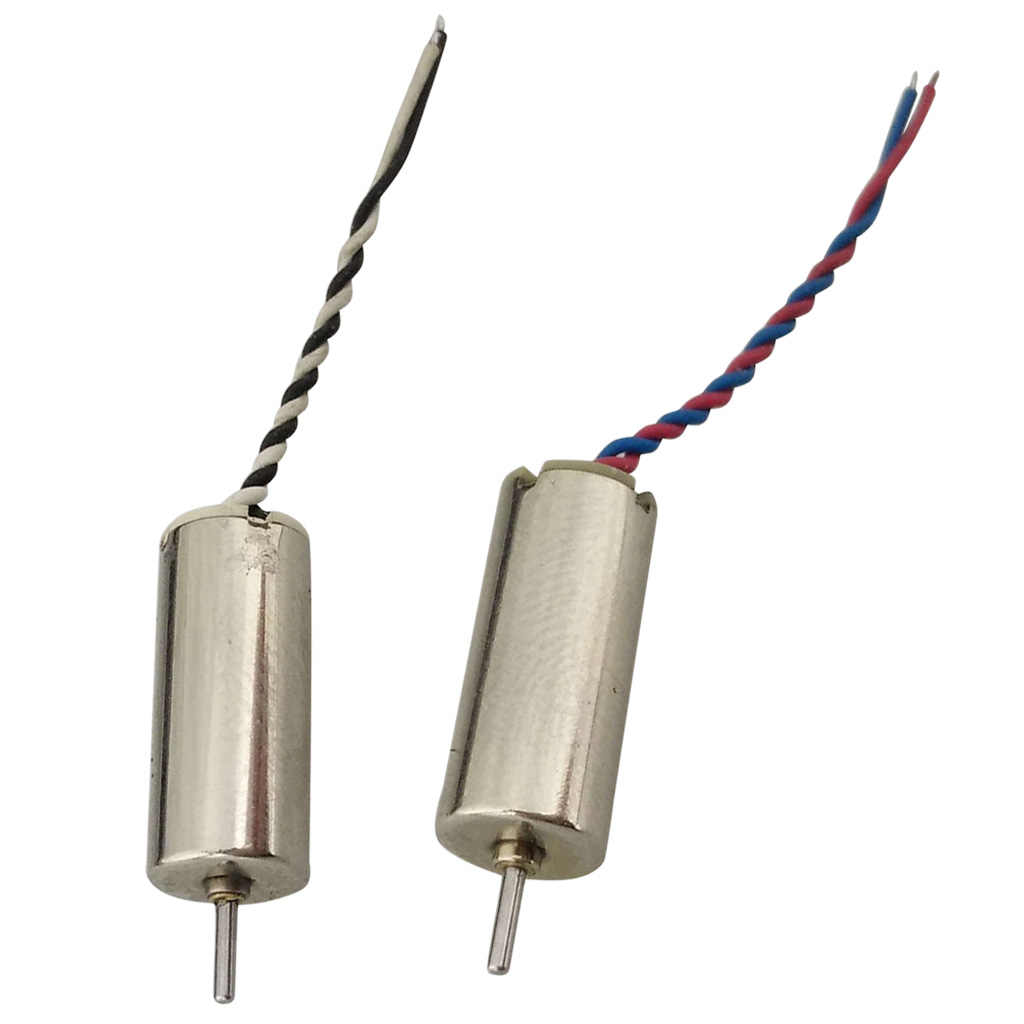

The Coreless Motor 7x20mm set pairs a small 7 × 20 mm coreless DC motor with a 55 mm propeller, sold as a pair. Coreless motors have no iron core in the rotor, so they are light, react quickly and spin at high speed, which is why this size is common in mini quadcopters and micro aircraft. It is a simple way to replace a worn drone motor or to build a small flying or air-propelled project.

Coreless Motor 7x20mm Specifications

  • Motor type: coreless DC motor
  • Motor size: 7 mm diameter × 20 mm long (often called 720 size)
  • Propeller diameter: 55 mm
  • Drive: 2-terminal DC; swapping the polarity reverses the direction
  • Sold as: pair (see What's in the Box)

Coreless Motor 7x20mm Applications

  • Replacement motors for mini quadcopters that use 7 × 20 mm motors
  • Micro RC planes and indoor flyers
  • Air-propelled cars, boats and school science projects
  • Small fans and DIY gadgets driven from a battery or microcontroller

What's in the Box

  • 1 × pair: 7 × 20 mm coreless motor and 55 mm propeller set

Tip: When driving it from an Arduino or ESP32, use a logic-level MOSFET with a flyback diode across the motor instead of a GPIO pin. Check the motor's rated voltage before powering it; motors of this size are usually run from a single-cell LiPo battery.
