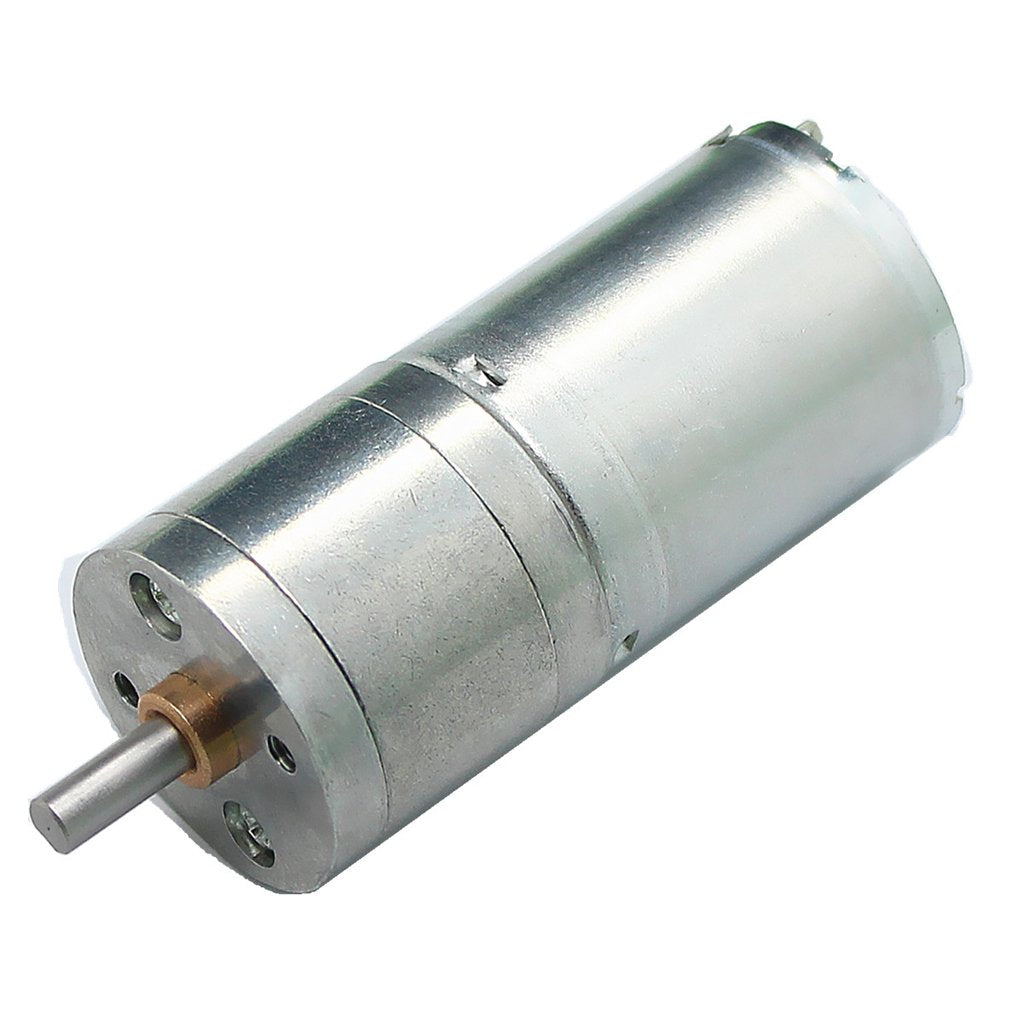

DC Motor 25GA-280 12V 1200rpm

The DC Motor 25GA-280 12V 1200rpm is a fast, compact 12 V DC gear motor from the 25GA series, with a gearbox that gives an output speed of about 1200 rpm. It is a little slower than the 1500 rpm version, so it offers slightly more turning force while still spinning quickly. Use it for fans, stirrers, spinning mechanisms and fast robot cars powered from 12 V.

DC Motor 25GA-280 12V 1200rpm Specifications

• Model: 25GA-280 gear motor
• Type: DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 1200 rpm at 12 V
• Gearbox: 25 mm diameter class (25GA series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-280 12V 1200rpm Applications

• Fans, blowers and stirrers
• Fast robot cars and racing rovers with small wheels
• Spinning displays and rotating mechanisms
• DIY tools and STEM projects

What's in the Box

• 1 × DC Motor 25GA-280 12V 1200rpm gear motor

Tip: Keep loads light, since fast gear motors give less torque than slow ones. Set the speed with PWM through a driver such as the L298N or TB6612FNG, and mount the motor with a 25GA motor bracket.
