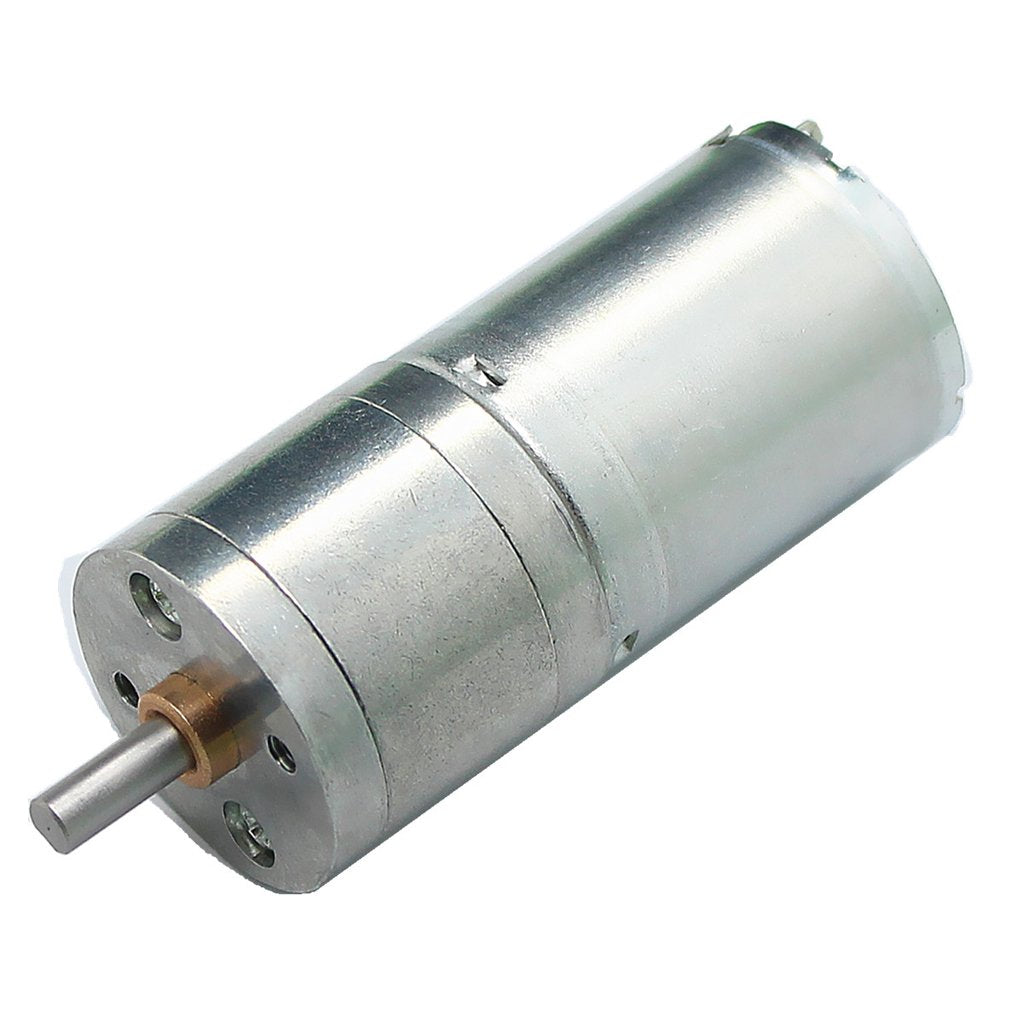

DC Motor 25GA-330T 3V 150rpm

The DC Motor 25GA-330T 3V 150rpm is a low-voltage DC gear motor with a 25GA series gearbox, rated for 3 V and turning at about 150 rpm at the output shaft. The 3 V rating lets it run from just two AA cells, which makes it handy for small battery-powered robots, toys and school projects where a light, simple power supply matters.

DC Motor 25GA-330T 3V 150rpm Specifications

• Model: 25GA-330T gear motor
• Type: DC motor with reduction gearbox
• Rated voltage: 3 V DC
• Output speed: about 150 rpm at 3 V
• Gearbox: 25 mm diameter class (25GA series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a low-voltage motor driver

DC Motor 25GA-330T 3V 150rpm Applications

• Small battery-powered robot cars
• Toys and moving models
• Light conveyors and turntables
• STEM and classroom projects

What's in the Box

• 1 × DC Motor 25GA-330T 3V 150rpm gear motor

Tip: Many motor drivers need more than 3 V on the motor supply; the DRV8833 works from 2.7 V, so it suits this motor. Running it well above 3 V makes it faster but hotter and shortens its life.
