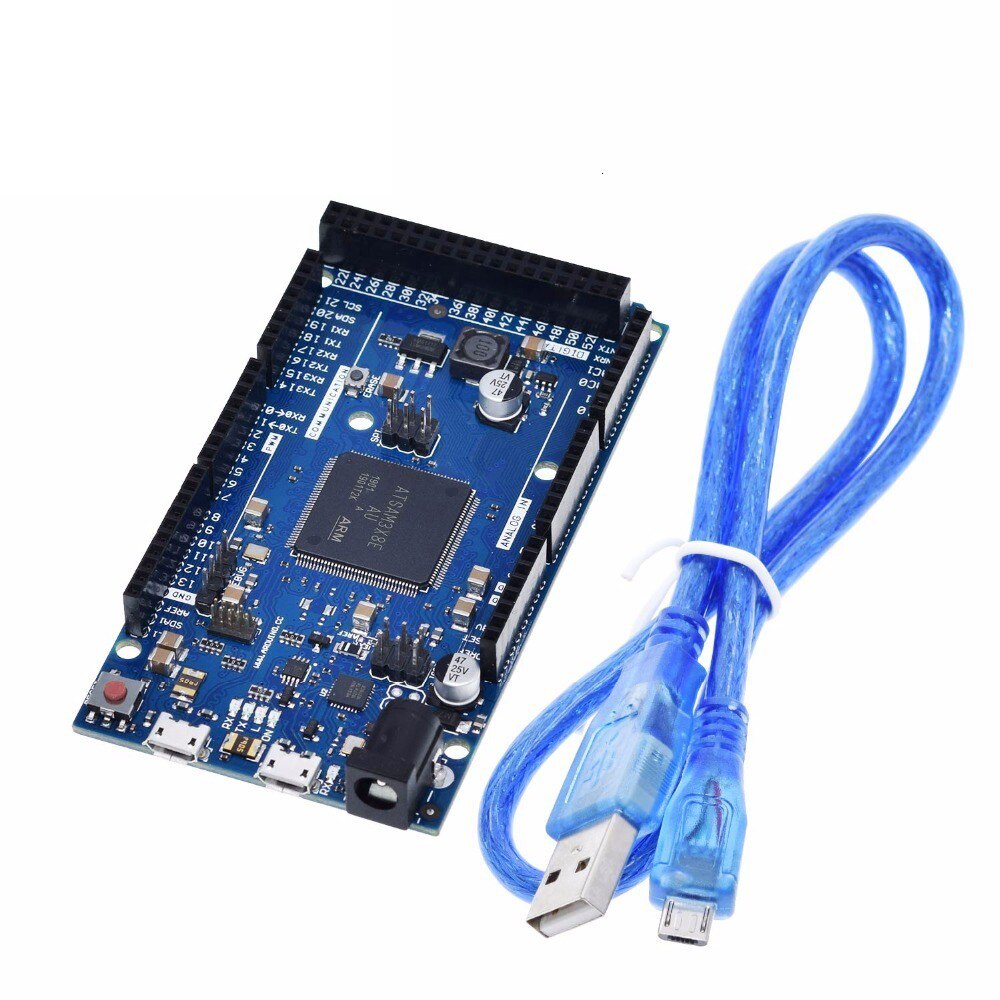

DUE 2013 + Micro USB Cable

The DUE 2013 is an Arduino Due compatible development board based on the AT91SAM3X8E, a 32-bit ARM Cortex-M3 microcontroller running at 84 MHz. With 54 digital pins, 12 analog inputs, two DAC outputs and 512 KB of flash, it is far more powerful than the UNO or Mega and suits fast control, audio and data projects. It comes with a micro USB cable for programming and power.

DUE 2013 Specifications

• Microcontroller: AT91SAM3X8E, 32-bit ARM Cortex-M3, 84 MHz
• Operating voltage: 3.3 V (I/O pins are not 5 V tolerant)
• Input voltage: 7–12 V recommended through the DC jack or VIN
• Digital I/O: 54 pins, 12 with PWM
• Analog: 12 inputs and 2 DAC outputs
• Memory: 512 KB flash, 96 KB SRAM
• Communication: 4 hardware UARTs, SPI, I2C and CAN
• USB: 2 micro USB ports, programming port and native USB port

DUE 2013 Applications

• Robotics and motion control that needs more speed than an 8-bit board
• Audio generation with the built-in DAC outputs
• Fast data acquisition and signal processing
• USB host and USB device projects on the native port

What's in the Box

• 1 × DUE 2013 board
• 1 × Micro USB cable

Tip: The Due runs at 3.3 V, so never connect 5 V signals to its I/O pins. Install "Arduino SAM Boards (32-bits ARM Cortex-M3)" in the Boards Manager and upload through the Programming Port, the micro USB port next to the DC jack.
