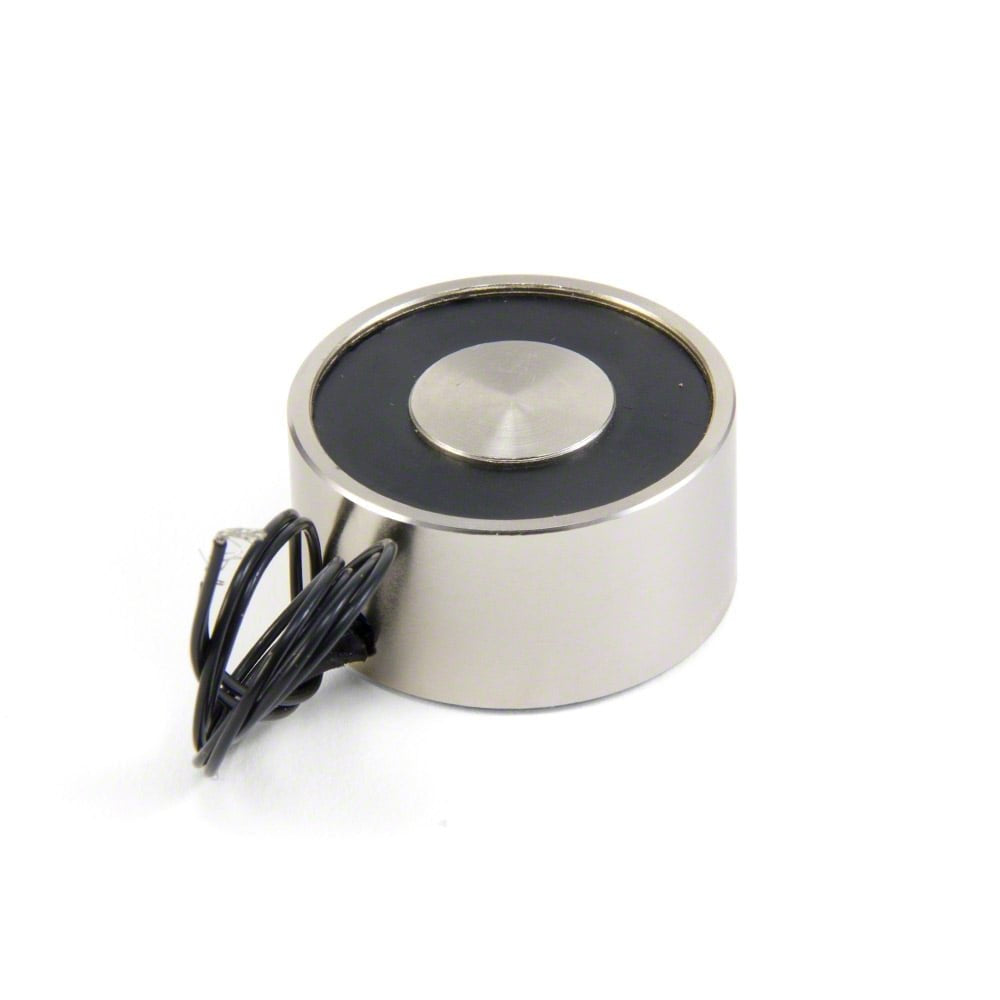

Electromagnet 24V 1212P-24V580 1kg Pull

The Electromagnet 24V 1212P-24V580 is a compact round holding electromagnet that runs on 24 V DC and gives up to 1 kg of pull on a steel surface. Its small size makes it easy to build into tight spaces, where it can hold light steel parts, latches or tokens while powered and release them as soon as the current is switched off.

Electromagnet 24V 1212P-24V580 Specifications

• Rated voltage: 24 V DC
• Holding force: up to 1 kg
• Diameter: 12 mm
• Model: 1212P-24V580
• Works with: iron and steel (magnetic metals) only
• Control: on and off by switching the 24 V supply

Electromagnet 24V 1212P-24V580 Applications

• Small electromagnetic latches and cabinet catches
• Light grippers for robot arms and pick-and-place demos
• Holding light steel parts in jigs and test fixtures
• Escape room puzzles and interactive props
• Physics and STEM teaching

What's in the Box

• 1 × 24 V electromagnet, 1212P-24V580

Tip: Drive the coil through a relay, transistor or MOSFET instead of a microcontroller pin, and fit a 1N4007 or similar diode across the coil (cathode to +) to absorb the switch-off spike. The holding force is highest on clean, flat steel in full contact with the face; even a small air gap or a layer of paint reduces it noticeably.
