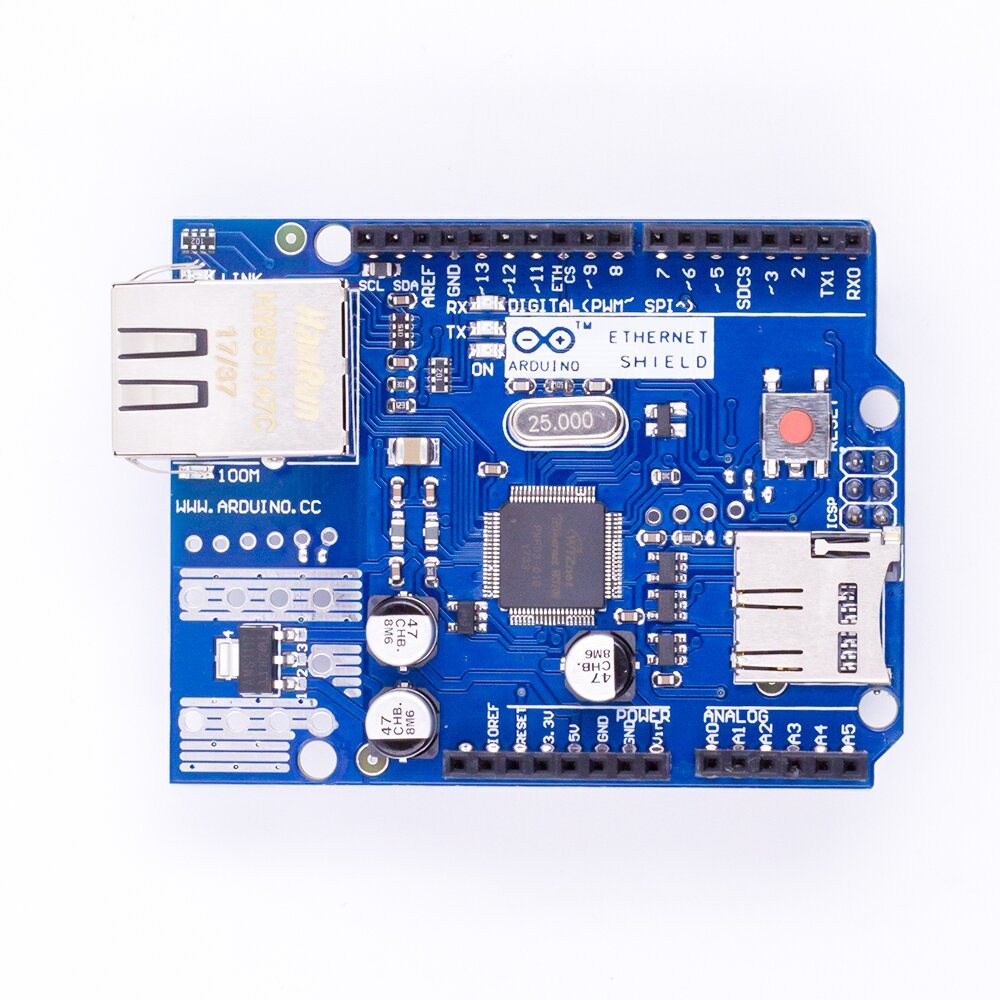

Ethernet W5100 R3 Ethernet & SD Shield

The Ethernet W5100 R3 Ethernet & SD shield connects an Arduino UNO or Mega to a wired network with a standard RJ45 cable. It uses the WIZnet W5100 chip, which handles the TCP/IP stack in hardware, and adds a micro SD card slot for storing web pages, logs or files. It works with the standard Arduino Ethernet library, so web servers and network clients take only a few lines of code.

Ethernet W5100 R3 Specifications

• Ethernet controller: WIZnet W5100 with hardware TCP/IP stack
• Speed: 10/100 Mbps
• Connections: up to 4 simultaneous sockets
• Buffer: 16 KB internal memory
• Interface: SPI through the ICSP header
• Pins used: D10 (Ethernet chip select) and D4 (SD card chip select), plus the SPI pins
• Storage: micro SD card slot
• Compatible boards: Arduino UNO and Mega 2560

Ethernet W5100 R3 Applications

• Small web servers to control relays and read sensors
• Sending data to cloud services and MQTT brokers
• Logging data to the SD card and serving it over the network
• Home automation and remote monitoring

What's in the Box

• 1 × Ethernet W5100 R3 Ethernet & SD shield

Tip: The Ethernet chip and the SD card share the SPI bus. If you use only the Ethernet part, set pin 4 as an output and HIGH to disable the SD card; if you use only the SD card, do the same with pin 10.
