Function Generator XR2206

The Function Generator XR2206 is a monolithic function generator IC that produces sine, triangle, square, ramp and pulse waveforms from a single chip. The frequency is set by one external resistor and capacitor, and the chip also has amplitude modulation (AM) and frequency-shift keying (FSK) inputs, which is why it sits at the heart of many DIY function generator kits and lab signal sources.

Function Generator XR2206 Specifications

• Waveforms: sine, triangle, square, ramp and pulse
• Frequency range: 0.01 Hz to more than 1 MHz
• Frequency setting: f = 1 / (R × C), external timing resistor and capacitor
• Sine distortion: about 0.5% typical, after trimming
• Duty cycle: adjustable from 1% to 99%
• Modulation: linear AM and TTL-compatible FSK
• Supply voltage: 10 V to 26 V single, or ±5 V to ±13 V split
• Pins: 16

Function Generator XR2206 Applications

• DIY function generators and audio signal sources
• Test signals for amplifiers, filters and oscilloscopes
• AM and FSK modulators
• Voltage-controlled oscillators and sweep generators
• Electronics labs and university courses

What's in the Box

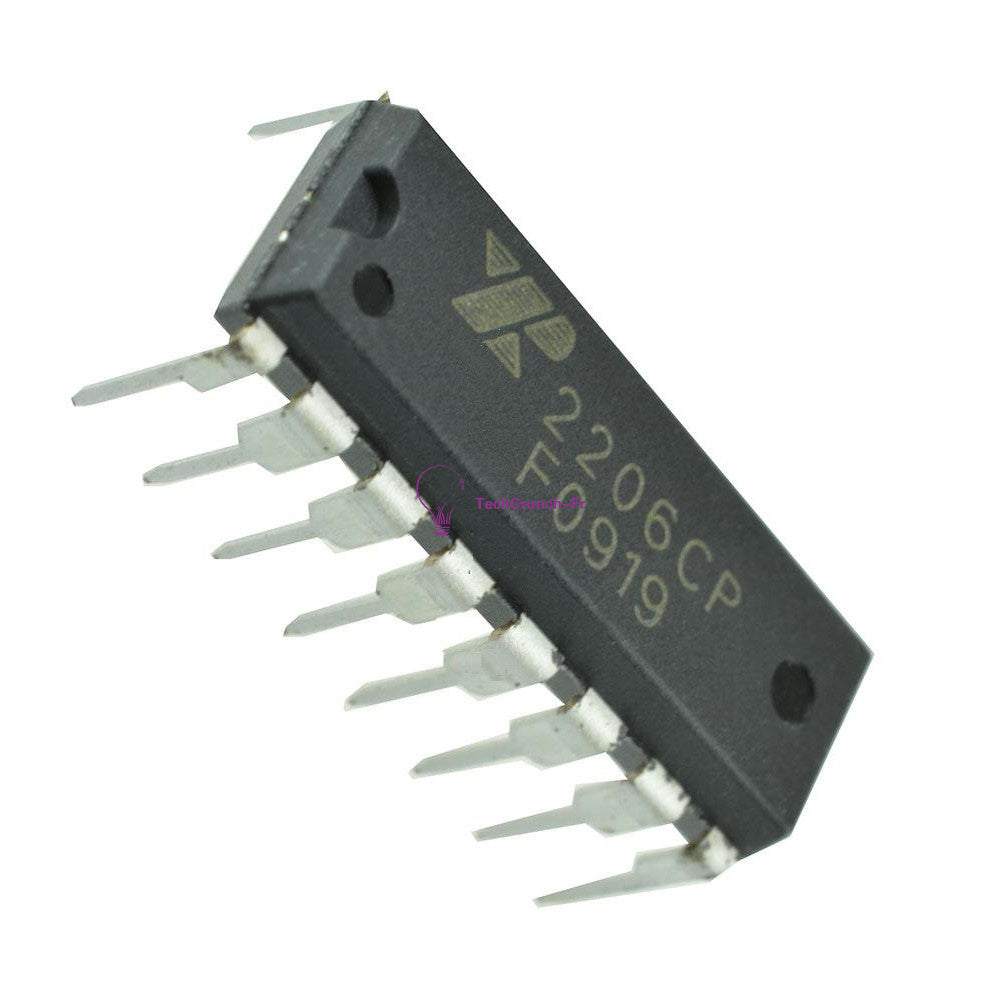

• 1 × XR2206 function generator IC

Tip: The square-wave sync output on pin 11 is open-collector, so add a pull-up resistor of a few kΩ to the positive supply. For a stable frequency, use a film timing capacitor and a timing resistor between about 4 kΩ and 200 kΩ.
