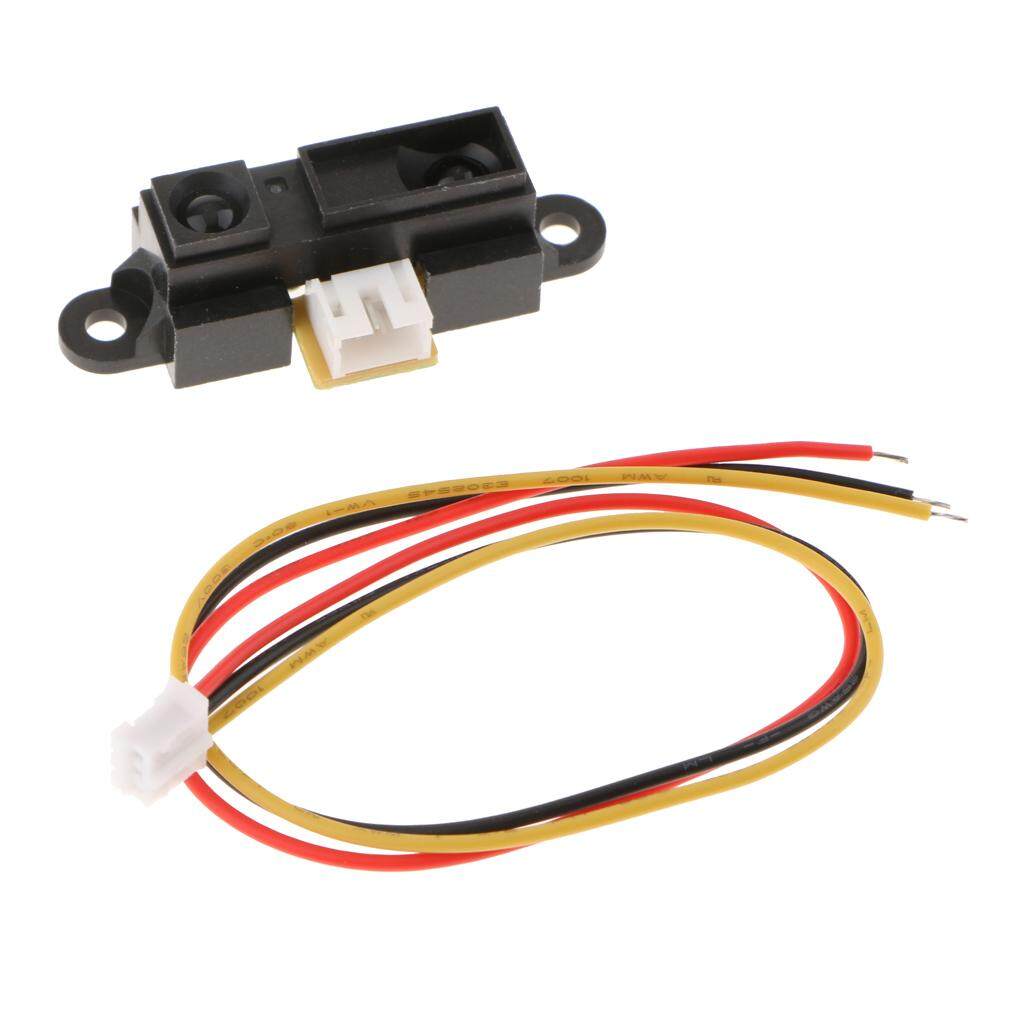

GP2Y0A710K0F 100-500cm IR distance sensor + Cable

The GP2Y0A710K0F is a long range infrared distance sensor that measures objects from about 1 m up to 5.5 m and outputs an analog voltage that changes with distance. It works by triangulation, so the reading is less affected by the colour and reflectivity of the target. It suits robots, presence detection and level sensing over longer distances, and it comes with its connection cable.

GP2Y0A710K0F IR Distance Sensor Specifications

• Measuring range: 100–550 cm (datasheet)
• Measuring method: infrared triangulation
• Supply voltage: 4.5–5.5 V
• Supply current: 30 mA typical, 50 mA max
• Output: analog voltage, about 2.5 V at 100 cm and falling as the distance increases
• Measuring cycle: about 16.5 ms
• Connector: 5-pin JST
• Size: 58 × 17.6 × 22.5 mm

GP2Y0A710K0F IR Distance Sensor Applications

• Long-range obstacle detection for robots
• People detection in doorways and corridors
• Level sensing in large tanks and bins
• Interactive displays and installations

What's in the Box

• 1 × GP2Y0A710K0F IR distance sensor
• 1 × connection cable

Tip: The output is not linear, so convert it with a calibration table or curve rather than a straight formula, and do not rely on readings closer than 100 cm. A capacitor of 10 µF or more across the supply close to the sensor smooths the current pulses of the IR LED.
