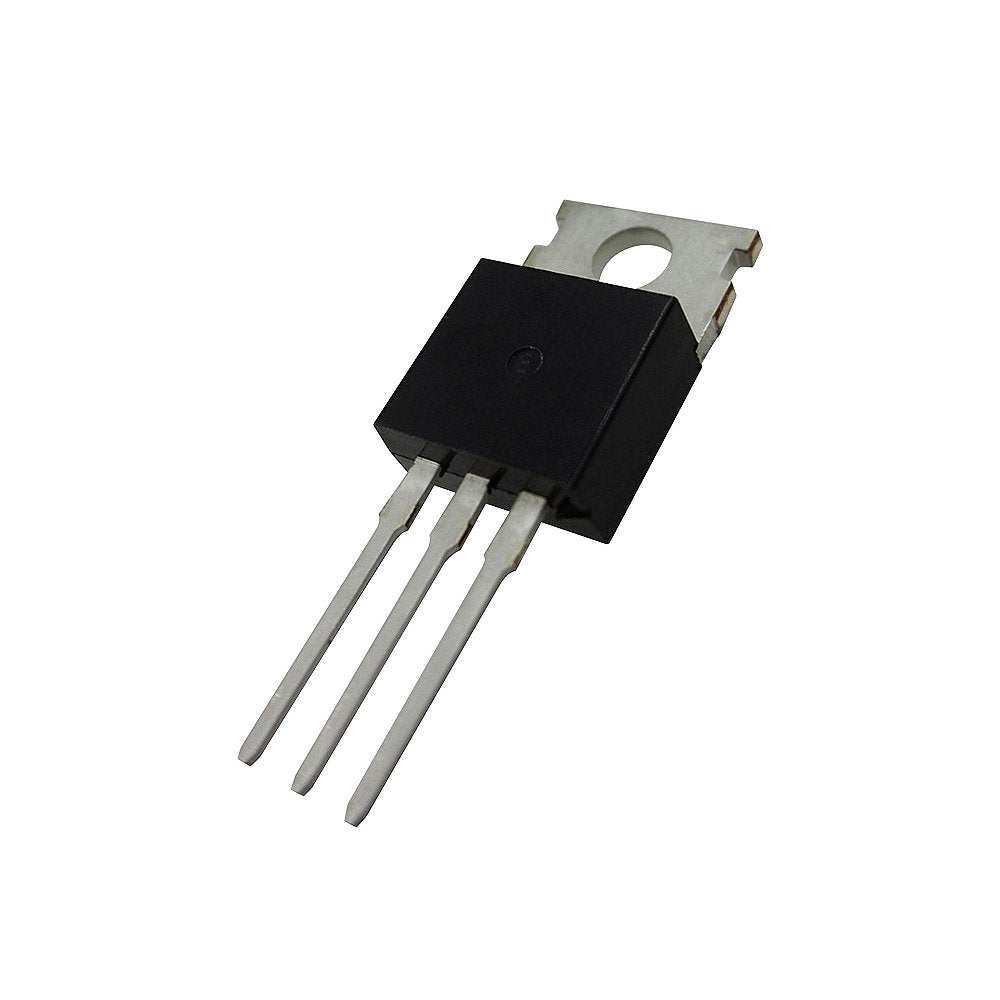

Mosfet Transistor IRLZ34N

The Mosfet Transistor IRLZ34N is a logic-level N-channel power MOSFET in a TO-220 package, rated 55 V and 30 A. Because it switches on well with a gate voltage of 4–5 V, it can be driven directly from an Arduino output pin to control motors, LED strips, solenoids and other DC loads.

Mosfet Transistor IRLZ34N Specifications

• Type: N-channel, logic-level power MOSFET
• Drain-source voltage: 55 V
• Continuous drain current: 30 A (25 °C case, with heat sink)
• On-resistance: 35 mΩ at 10 V gate, 46 mΩ at 5 V gate
• Gate threshold voltage: 1–2 V
• Gate-source voltage: ±16 V max
• Package: TO-220, pins gate, drain, source (left to right, front view)

Mosfet Transistor IRLZ34N Applications

• PWM speed control of DC motors and fans from Arduino
• Dimming 12 V LED strips
• Switching solenoids, relays, pumps and heaters
• Low-side load switching in robotics and automation
• Battery and power switching projects

What's in the Box

• 1 × IRLZ34N N-channel MOSFET

Tip: Use it as a low-side switch: source to ground, load between the drain and the positive supply. Add a 100–220 Ω gate resistor, a 10 kΩ pull-down from gate to source and a flyback diode across motors and solenoids, and fit a heat sink at high currents.
