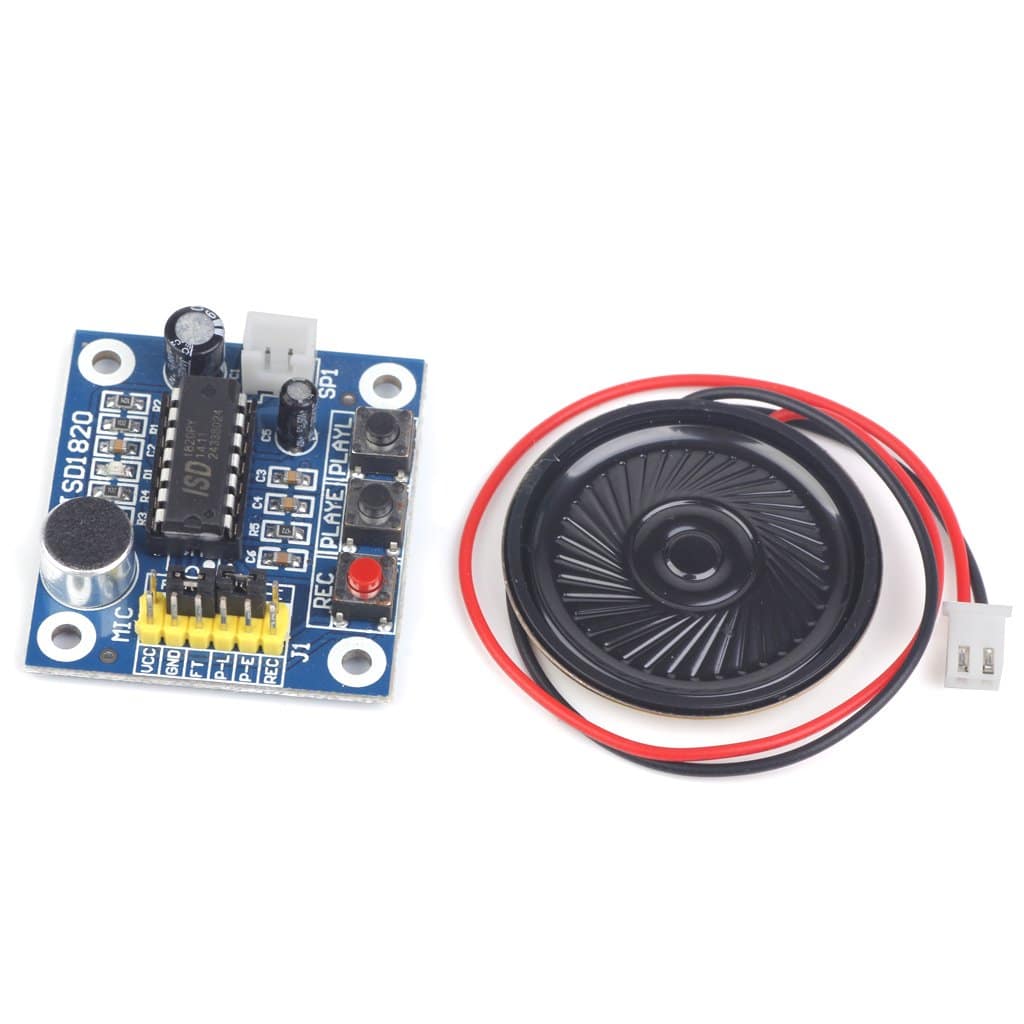

ISD1820 Recording Module Voice Board with Mic

The ISD1820 Recording Module is a voice record and playback board with a built-in microphone. Press the record button to store a short message, then play it back through a small speaker with a button press or a signal from an Arduino or ESP32. The recording is kept in the chip's non-volatile memory, so it stays saved when the power is off, which makes the module handy for talking toys, doorbells and spoken alerts.

ISD1820 Recording Module Specifications

• Chip: ISD1820 single-message voice recorder
• Recording time: about 10 seconds with the usual on-board settings (the chip supports 8–20 s)
• Microphone: built in
• Supply voltage: 3–5 V DC
• Speaker output: drives an 8 Ω speaker directly
• Control: on-board record and play buttons, plus REC, PLAYE (edge play) and PLAYL (level play) pins
• Memory: non-volatile, the message is kept without power

ISD1820 Recording Module Applications

• Talking toys, greeting cards and gifts
• Doorbells and spoken warning messages
• Voice prompts in Arduino and ESP32 projects
• School science and STEM projects

What's in the Box

• 1 × ISD1820 voice recording module with microphone

Tip: Connect an 8 Ω speaker to the speaker pins before testing. To control it from a microcontroller, take REC or PLAYE high from a digital pin, and hold REC high for the whole message while speaking clearly near the microphone.
