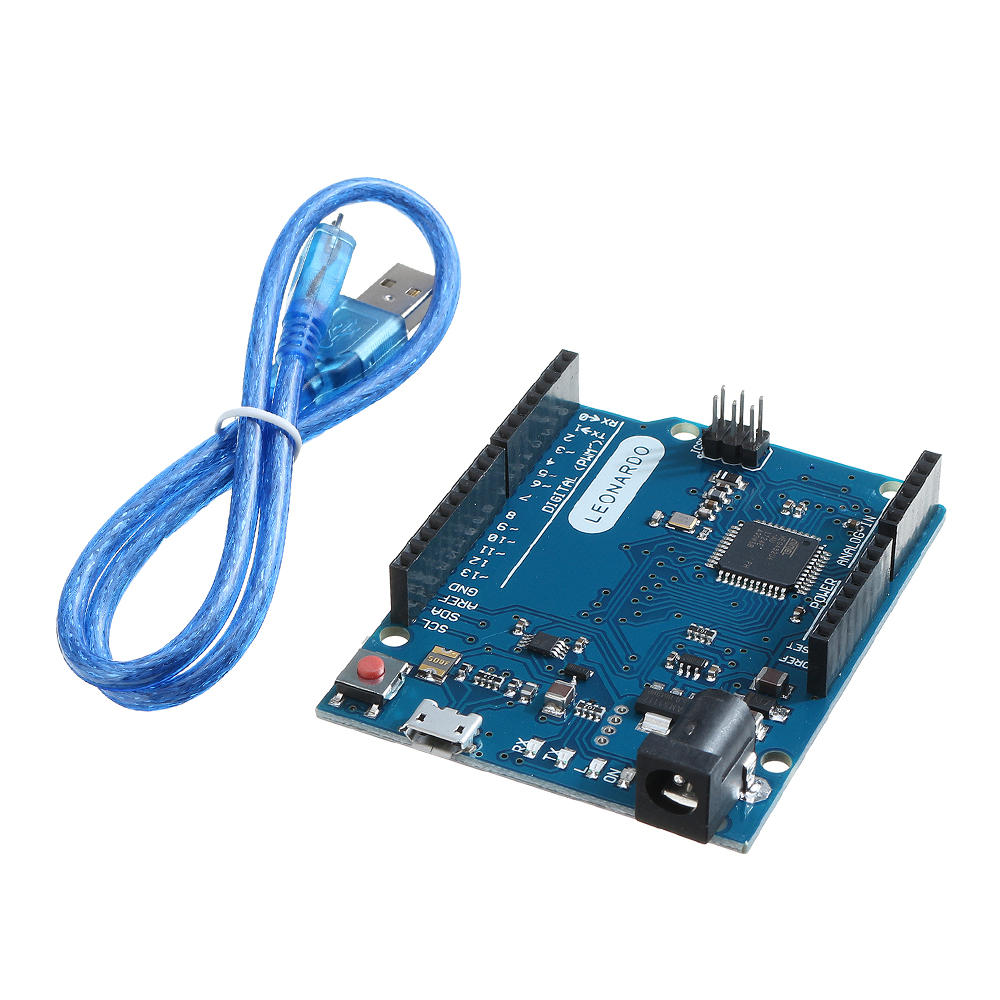

Leonardo R3 + Micro USB Cable

The Leonardo R3 is a development board based on the ATmega32U4 microcontroller, supplied here with a Micro USB cable. Unlike the Uno, the ATmega32U4 handles USB itself, so the Leonardo can appear to a computer as a keyboard, mouse or game controller as well as a serial port. It keeps the familiar Uno-size layout and is programmed in the Arduino IDE.

Leonardo R3 Specifications

• Microcontroller: ATmega32U4, 16 MHz
• Operating voltage: 5 V
• Input voltage (recommended): 7–12 V on the DC jack
• Digital I/O pins: 20, of which 7 provide PWM
• Analog inputs: 12
• Flash memory: 32 KB (4 KB used by the bootloader)
• SRAM / EEPROM: 2.5 KB / 1 KB
• USB: Micro USB with native USB support (HID)

Leonardo R3 Applications

• Custom USB keyboards, macro pads and game controllers
• Keyboard and mouse automation for a PC
• Projects that need many analog inputs
• Robotics, sensors and Arduino learning

What's in the Box

• 1 × Leonardo R3 board
• 1 × Micro USB cable

Tip: Select 'Arduino Leonardo' as the board in the Arduino IDE. Because the sketch runs the USB port, the COM port can change after a reset; if an upload fails, press the reset button just as the IDE starts uploading.
