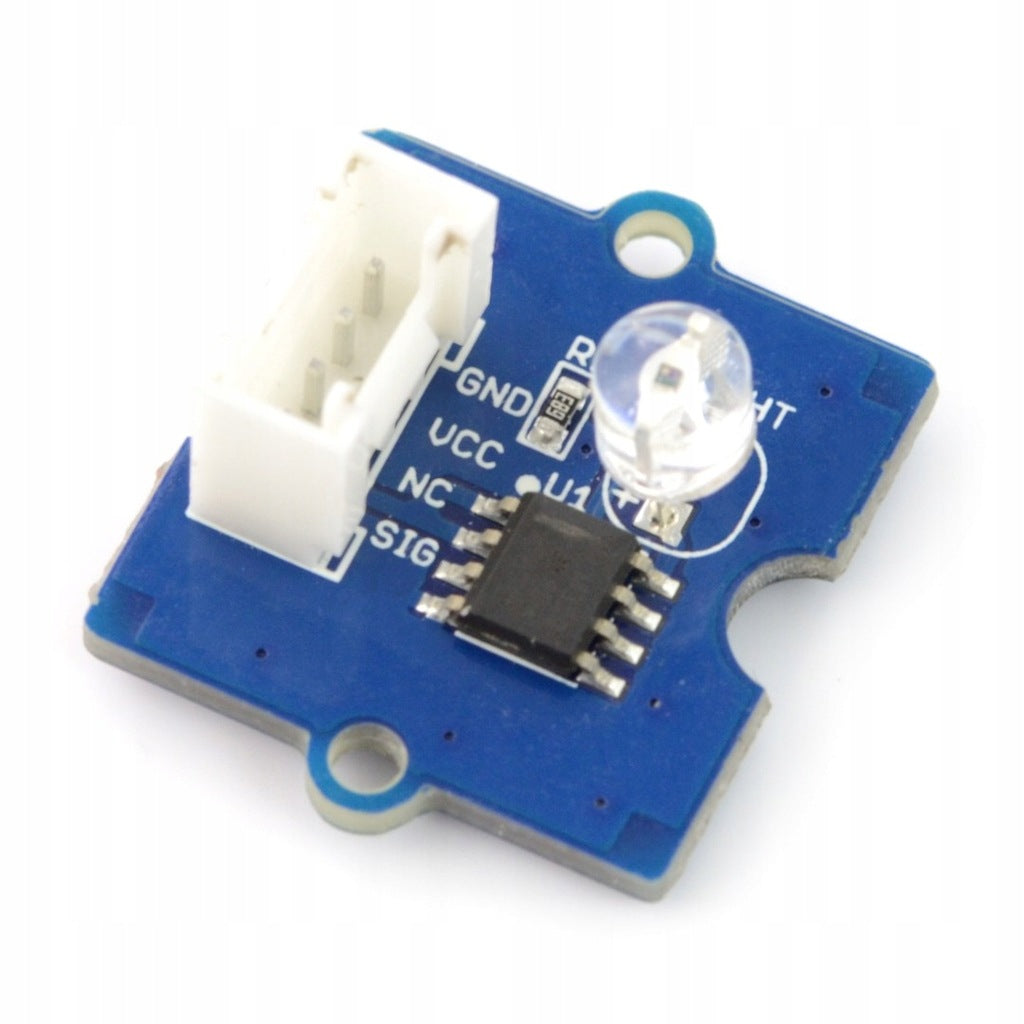

Light Sensor V1.2 LS06-S phototransistor Grove

The Light Sensor V1.2 LS06-S is a Grove module that measures ambient light with an LS06-S phototransistor. Its analog output voltage rises as the light gets brighter, so you can read light levels directly with an Arduino or other microcontroller analog input. The Grove connector plugs into a Grove Base Shield without soldering or breadboard wiring, which makes it ideal for classrooms and quick prototypes.

Light Sensor V1.2 LS06-S Specifications

• Sensor: LS06-S phototransistor
• Output: analog voltage, higher in brighter light
• Operating voltage: 3–5 V
• Operating current: 0.5–3 mA
• Response time: 20–30 ms
• Peak wavelength: 540 nm
• Connector: 4-pin Grove

Light Sensor V1.2 LS06-S Applications

• Automatic night lights and street-light models
• Day and night detection for smart home projects
• Light-seeking robots
• Logging light levels in plant and weather stations

What's in the Box

• 1 × Grove Light Sensor V1.2 (LS06-S) module

Tip: Plug the module into an analog port such as A0 on a Grove Base Shield and read it with analogRead(). The reading is relative, not in lux, so set your on and off thresholds by testing in the real room or location.
