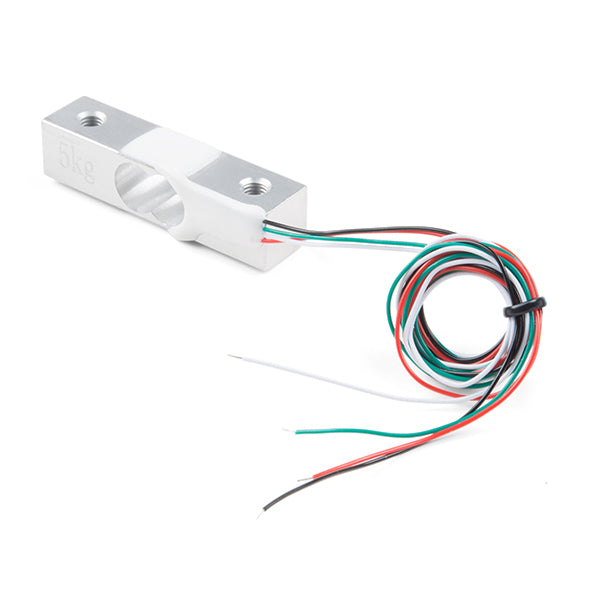

Load Cell Sensor 5Kg

The Load Cell Sensor 5Kg is a straight-bar strain gauge load cell that measures weight or force up to 5 kg. Strain gauges bonded to the aluminium bar form a Wheatstone bridge whose tiny output voltage changes with the load, so it is used with an amplifier such as the HX711 to build digital scales and force-measuring projects with Arduino, ESP32 or Raspberry Pi.

Load Cell Sensor 5Kg Specifications

• Capacity: 5 kg
• Type: straight bar (parallel beam) strain gauge load cell
• Material: aluminium alloy
• Size: 55 × 12.7 × 12.7 mm
• Wires: 4, red E+ (excitation +), black E− (excitation −), green A+ (signal +) and white A− (signal −)
• Cable length: about 200 mm

Load Cell Sensor 5Kg Applications

• Digital kitchen, parcel and letter scales
• Measuring force in robotics and mechanical experiments
• Smart pet feeders and container level monitoring by weight
• Physics and engineering lab projects
• Weighing stations for Arduino and IoT dashboards

What's in the Box

• 1 × 5 kg straight-bar load cell

Tip: Connect the four wires to an HX711 amplifier board (E+, E−, A+ and A−). Bolt one end of the bar to a fixed base and the other end to the weighing plate so the middle of the bar can flex, and calibrate with a known weight before taking readings.
