Longer version of 4 wd double layer smart car chassis: 2pcs 4WD smart car chassis 4pcs wheels 4pcs Gear motor 8pcs connection line 8pcs Fixed 28pcs Screw 8pcs nut 6pcs pillars

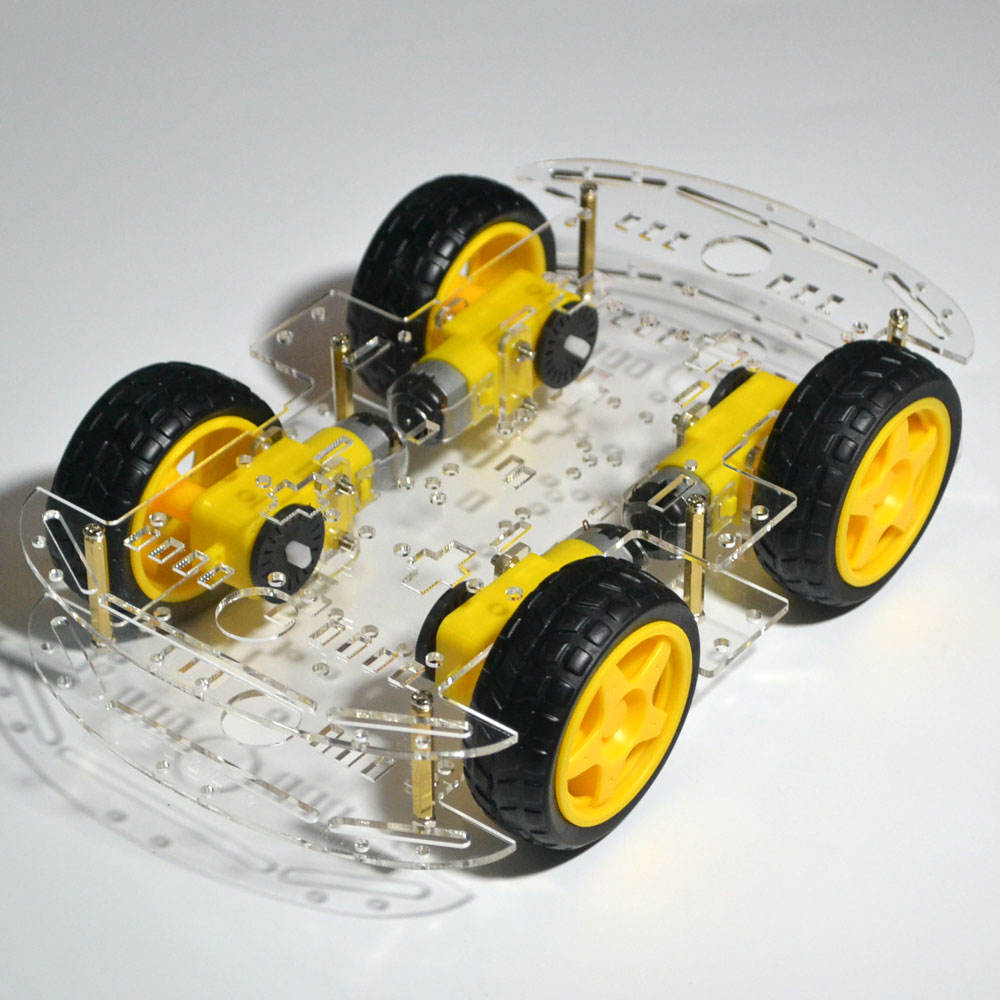

The double layer smart car chassis is the longer version of the popular 4WD robot car kit. It comes with two chassis plates, four gear motors with wheels and the pillars, screws and nuts needed to assemble a two-level platform: motors and batteries on the bottom, and an Arduino, ESP32 or Raspberry Pi with sensors on the top. It is a ready base for obstacle-avoiding, line-following and remote-controlled robot cars.

Double Layer Smart Car Chassis Specifications

• Drive: 4WD, one gear motor per wheel
• Layers: 2 chassis plates joined by 6 pillars
• Version: longer chassis
• Motors: 4 × DC gear motors
• Wheels: 4
• Assembly: screws and nuts included

Double Layer Smart Car Chassis Applications

• Obstacle-avoiding robots with an HC-SR04 ultrasonic sensor
• Line-following robots with IR tracking sensors
• Bluetooth or Wi-Fi remote-controlled cars with ESP32 or an HC-05 module
• Robotics classes, school projects and competitions
• Learning DC motor control with Arduino

What's in the Box

• 2 × chassis plates
• 4 × wheels
• 4 × gear motors
• 8 × connection wires
• 8 × motor fixing pieces
• 28 × screws
• 8 × nuts
• 6 × pillars

Tip: The motors draw more current than an Arduino pin can supply, so drive them through a motor driver such as the L298N or L9110S and power them from a separate battery pack, for example 2 × 18650 cells. Solder the wires to the motor terminals before mounting the motors.
