Mega Sensor Shield V2.0 for MEGA 2560 R3

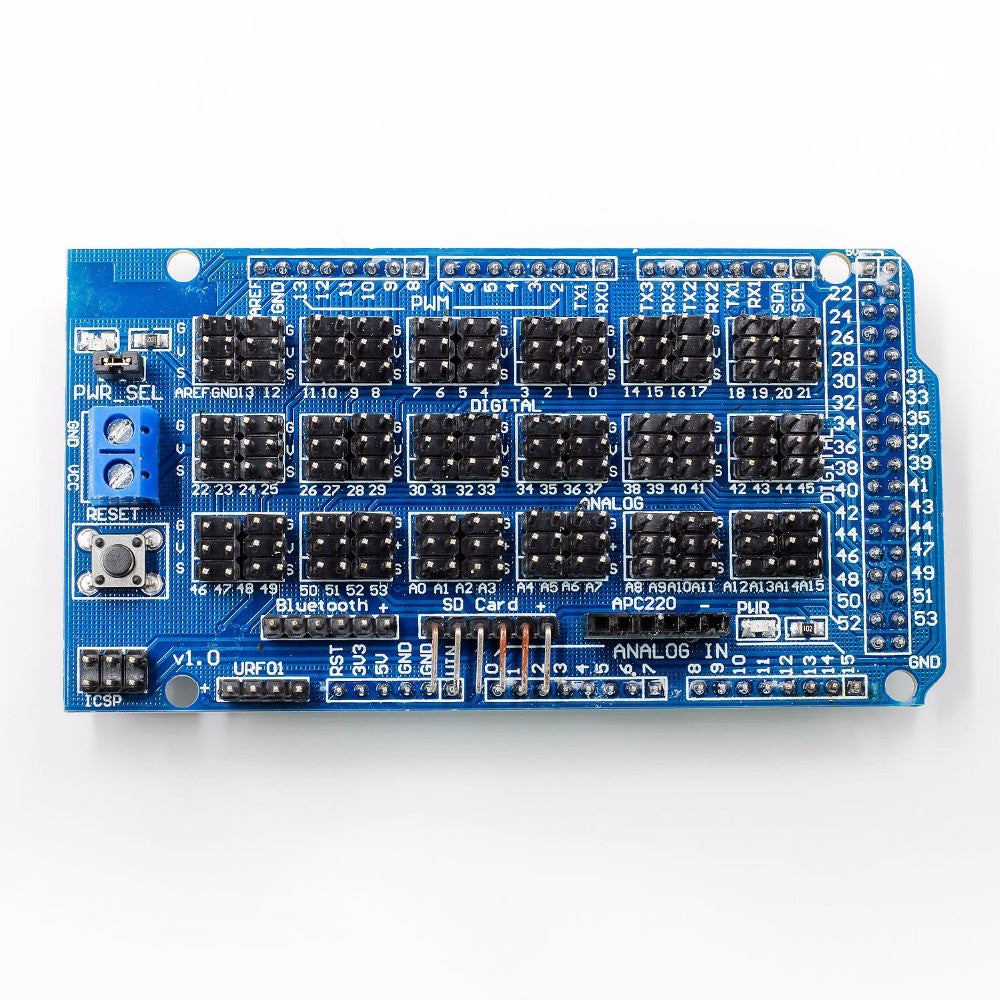

The Mega Sensor Shield V2.0 is an expansion board that plugs on top of an Arduino Mega 2560 R3 and breaks every digital and analog pin out to a 3-pin header with signal, VCC and GND. Sensors, servos and modules then connect with a single 3-wire cable instead of a breadboard full of jumper wires, which keeps robots, robot arms and multi-sensor projects neat and reliable.

Mega Sensor Shield V2.0 Specifications

• Compatible boards: Arduino Mega 2560 R3 and boards with the same header layout
• Digital I/O: D0–D53 broken out as 3-pin headers (signal, VCC, GND)
• Analog inputs: A0–A15 as 3-pin headers
• External power: screw terminal for a separate servo supply, with a selection jumper
• Extra interfaces: headers for I2C, serial (UART) and SPI modules

Mega Sensor Shield V2.0 Applications

• Robot arms, hexapods and other robots with many servos
• Projects with many sensors, such as ultrasonic, IR and line-tracking modules
• Using sensor kit modules without a breadboard
• Classroom and STEM kits built on the Arduino Mega

What's in the Box

• 1 × Mega Sensor Shield V2.0 (Arduino Mega not included)

Tip: Servos can draw more current than the Mega's 5 V regulator can supply, so power them from the external terminal and set the jumper accordingly. Check the labels beside each header for the order of signal, VCC and GND, and plug servo and sensor cables in to match.
