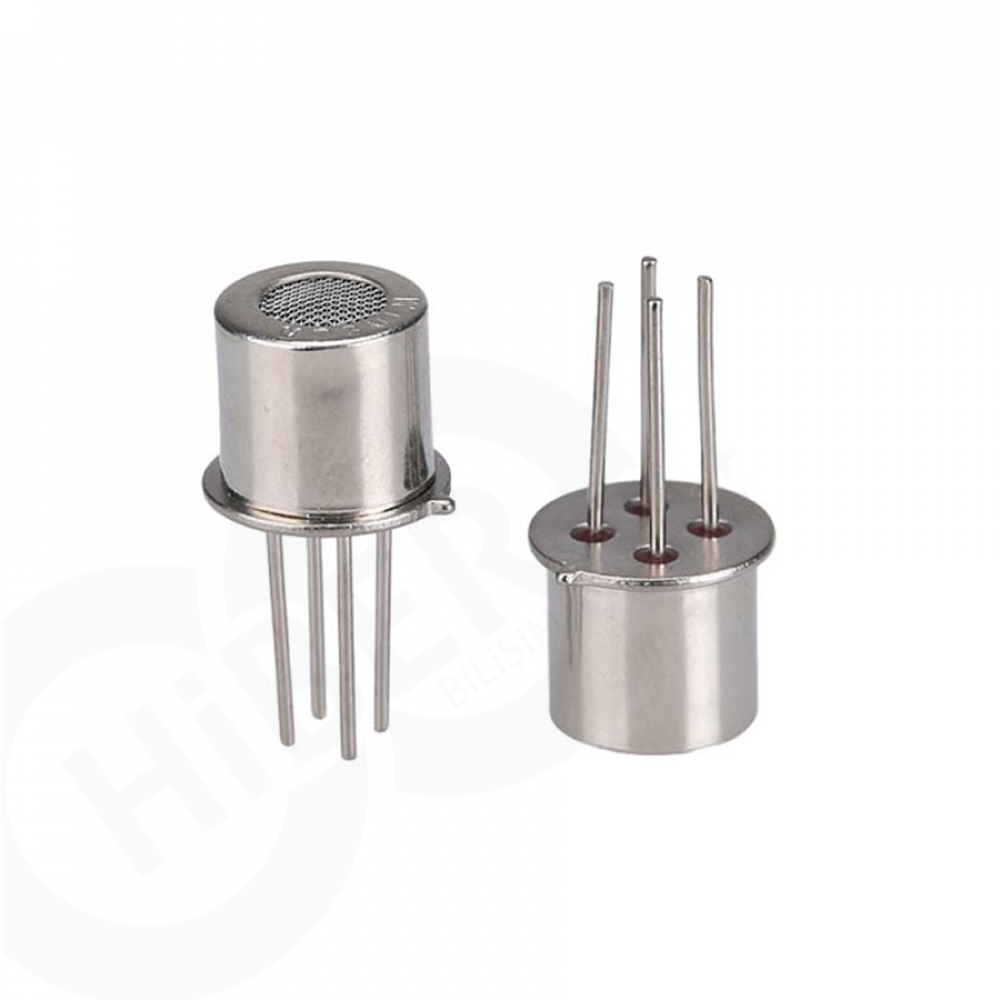

MP135 Air Pollution Gas Sensor DIP-4

The MP135 Air Pollution Gas Sensor is a flat-surface semiconductor gas sensor in a 4-pin DIP package, made for detecting indoor air pollutants. Its metal-oxide sensing layer changes resistance when gases such as hydrogen, alcohol vapour and carbon monoxide are present, so it suits air purifiers, fresh-air systems and indoor air quality monitors.

MP135 Air Pollution Gas Sensor Specifications

• Sensor type: semiconductor (metal-oxide) gas sensor on a ceramic substrate
• Target gases: hydrogen (H2), alcohol and carbon monoxide (CO)
• Detection range: 10–500 ppm H2, 5–500 ppm alcohol, 10–500 ppm CO
• Heater voltage: 5.0 V ±0.1 V, AC or DC
• Heater power: 300 mW max
• Loop voltage: up to 24 V DC
• Package: DIP-4

MP135 Air Pollution Gas Sensor Applications

• Air purifiers and fresh-air ventilation systems
• Indoor air quality (IAQ) monitors for homes and offices
• Automatic exhaust fan control
• Gas detection experiments with Arduino or ESP32

What's in the Box

• 1 × MP135 air pollution gas sensor, DIP-4

Tip: This is a bare sensor: connect a load resistor in series with the sensing element and read the voltage across it with an analog input. Let the heater warm up before taking readings, set your clean-air reference in a well-ventilated room, and remember that the sensor gets hot in use.
