DF Player Mini MP3 Player Module
Part no. L1: D12-1-1 / L2: - / L3: - (10060872)
- Pick up in Msaitbeh, Beirut
- Delivery across Lebanon
- Bulk and education pricing on request
Description

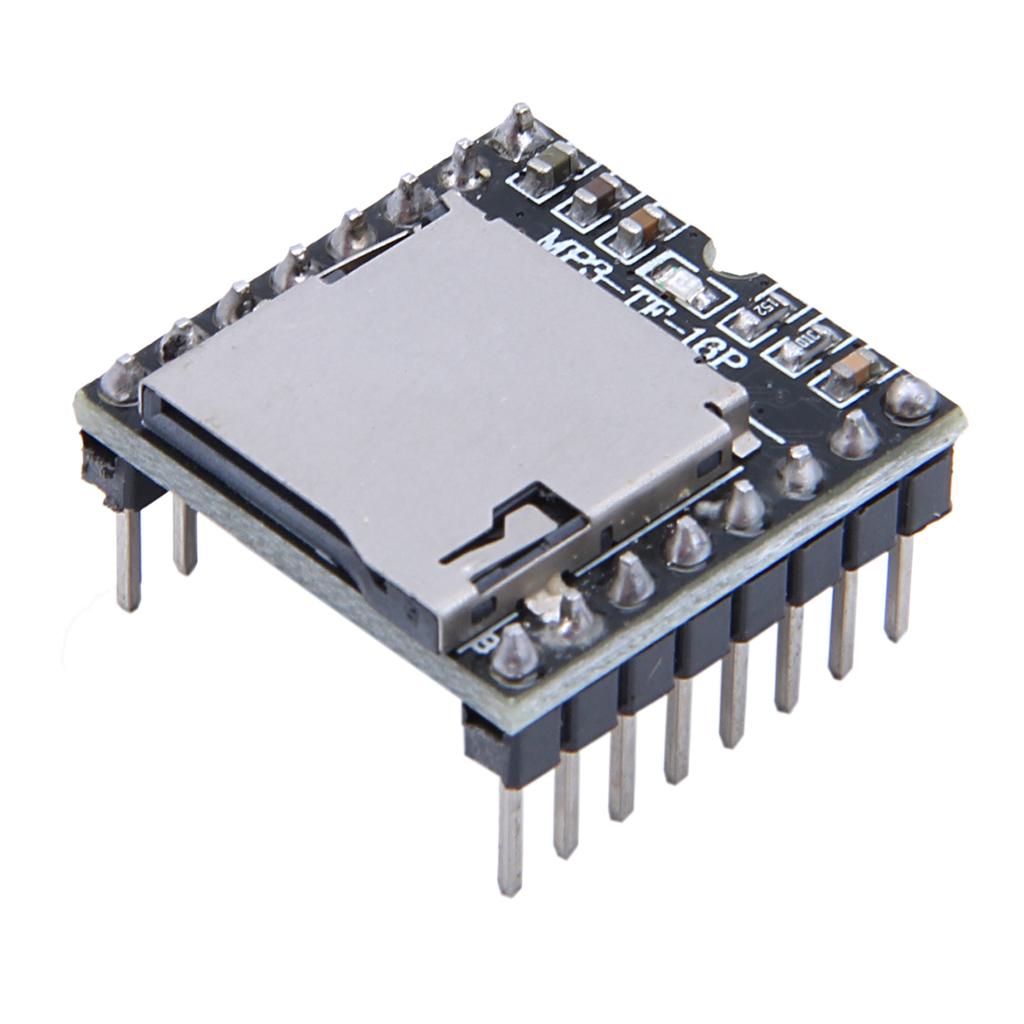

The DF Player Mini MP3 Player Module is a small, low-cost audio player that plays MP3, WAV and WMA files from a micro SD card. It has a built-in 3 W amplifier that drives a small speaker directly, and you control it from an Arduino, ESP32 or other microcontroller over a simple serial connection, or with push buttons for stand-alone use.
DF Player Mini MP3 Player Module Specifications
- Supply voltage: 3.2–5 V
- Audio formats: MP3, WAV and WMA
- Storage: micro SD card up to 32 GB, FAT16 or FAT32
- Speaker output: built-in 3 W mono amplifier
- Line output: DAC outputs for headphones or an external amplifier
- Control: UART serial at 9600 baud, or I/O and AD key inputs
- Volume: 30 levels, with 6 equaliser presets
- Also known as: MP3-TF-16P
DF Player Mini MP3 Player Module Applications
- Talking projects, voice prompts and alarms
- Doorbells, music boxes and sound effects for props
- Robots and interactive classroom or museum displays
- Arduino and ESP32 audio projects
What's in the Box
- 1 × DF Player Mini MP3 player module
Tip: When using a 5 V Arduino, add a 1 kΩ resistor in series with the module's RX pin to reduce noise. Use the DFRobotDFPlayerMini library, and name your files 0001.mp3, 0002.mp3 and so on inside an "mp3" folder for reliable track ordering.
