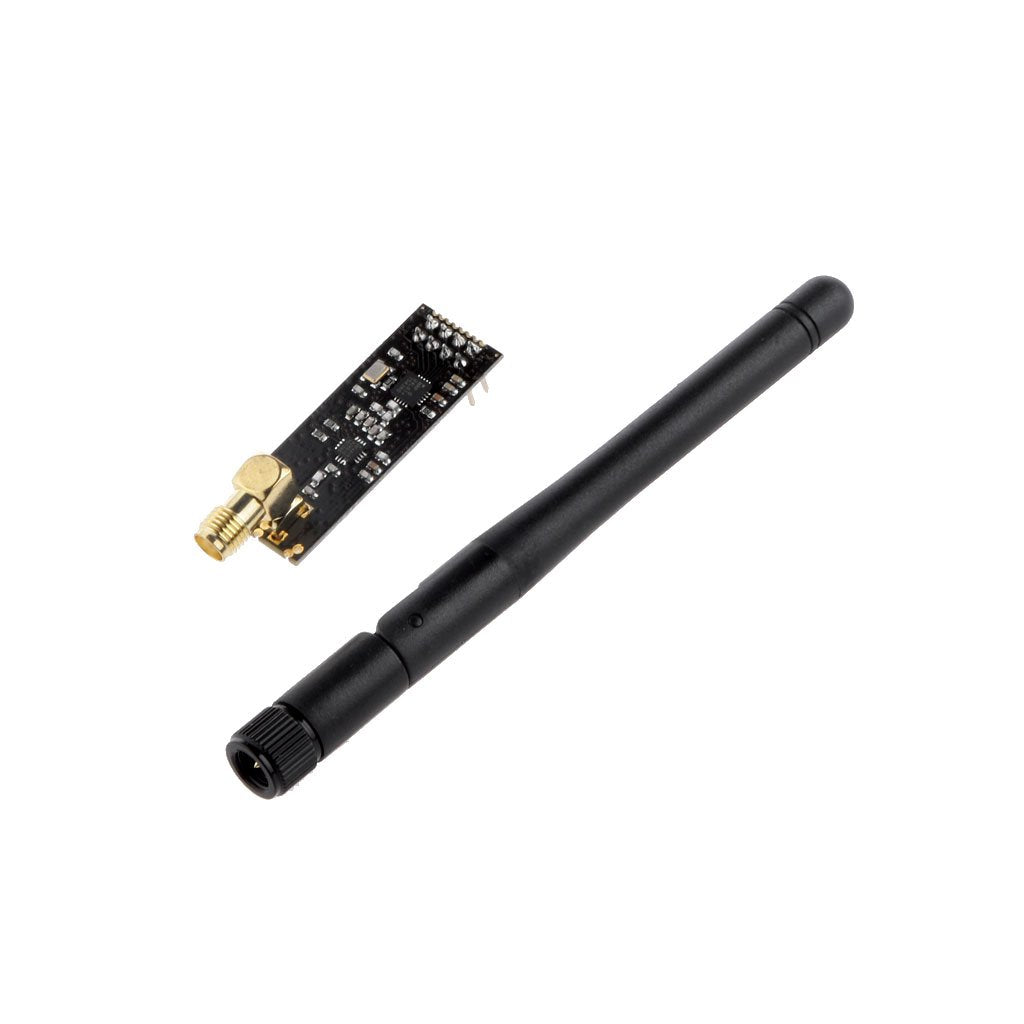

NRF24L01+PA+LNA with Antenna 1100 Meters

Part no. 10051023

$5.50
Sold out
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The NRF24L01+PA+LNA with antenna is a long-range version of the popular nRF24L01+ 2.4 GHz wireless transceiver. It adds a power amplifier (PA), a low-noise amplifier (LNA) and an external antenna, giving a range of up to 1100 m in open space according to the product title. It talks to Arduino, ESP32 and Raspberry Pi over SPI and is used for remote controls, sensor networks and robot links.

NRF24L01+PA+LNA Specifications

  • Transceiver chip: Nordic nRF24L01+
  • Frequency: 2.4 GHz ISM band, 125 selectable channels
  • Data rate: 250 kbps, 1 Mbps or 2 Mbps
  • Supply voltage: 1.9–3.6 V (3.3 V recommended)
  • Interface: SPI on an 8-pin 2 × 4 header, 2.54 mm pitch
  • Range: up to 1100 m line of sight, as stated in the title; real range depends on data rate and surroundings
  • Antenna: external 2.4 GHz antenna

NRF24L01+PA+LNA Applications

  • Long-range remote controls for RC cars, boats and robots
  • Wireless sensor networks and weather stations
  • Home automation links between Arduino nodes
  • Telemetry and data logging from remote sites

What's in the Box

  • 1 × NRF24L01+PA+LNA module
  • 1 × 2.4 GHz antenna

Tip: Power the module from a stable 3.3 V supply, never 5 V, and fit a 10–100 µF capacitor across VCC and GND close to the module; the Arduino 3.3 V pin often cannot supply enough current while it transmits. Use the RF24 library and set a low power level when testing two modules close together.
