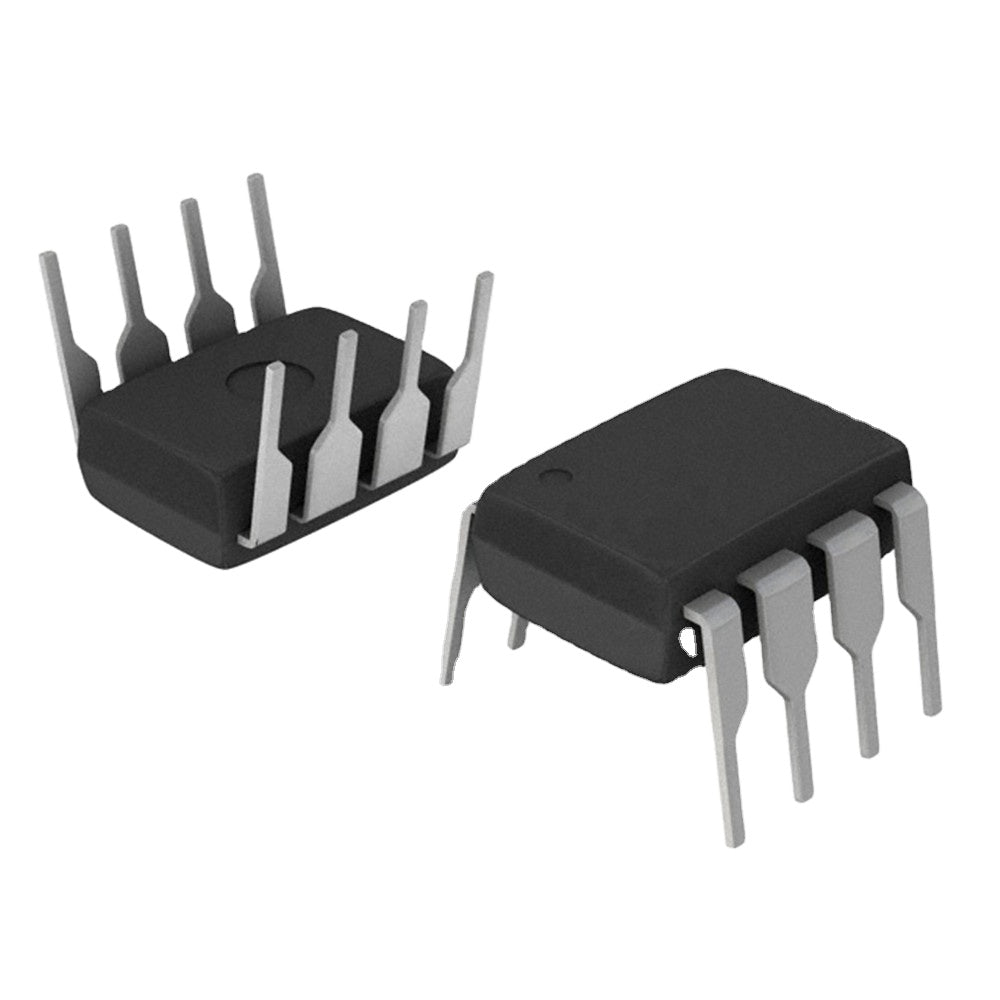

OP Amp 4.5MHZ CA3240

The OP Amp 4.5MHZ CA3240 is a dual BiMOS operational amplifier that combines MOSFET inputs with a bipolar output stage. It is the dual version of the CA3140, with a 4.5 MHz gain-bandwidth product, very high input impedance, input currents in the picoamp range and an input range that reaches below the negative supply. That makes it a good fit for sensor buffers, timers, sample-and-hold circuits and single-supply designs.

OP Amp 4.5MHZ CA3240 Specifications

• Type: dual operational amplifier, MOSFET input and bipolar output (BiMOS)
• Gain-bandwidth product: 4.5 MHz typical
• Slew rate: 9 V/µs typical
• Supply voltage: 4 V to 36 V single, or ±2 V to ±18 V split
• Input impedance: about 1.5 TΩ
• Input current: about 10 pA typical at ±15 V
• Common-mode input range: reaches about 0.5 V below the negative supply rail
• Package: 8-pin DIP (CA3240E) or 14-pin DIP (CA3240E1); check the marking

OP Amp 4.5MHZ CA3240 Applications

• Buffers for pH probes, photodiodes and other high-impedance sensors
• Sample-and-hold circuits and peak detectors
• Long-period timers and integrators, thanks to the very low input current
• Active filters and comparators running from a single supply
• Analog electronics labs and instrumentation projects

What's in the Box

• 1 × CA3240 dual op-amp IC

Tip: The MOSFET inputs are sensitive to static, so handle the chip by its body and keep it in conductive foam until it is fitted. Do not drive the inputs beyond the supply rails, and if you use only one amplifier, wire the second as a voltage follower tied to a fixed voltage so it does not oscillate.
