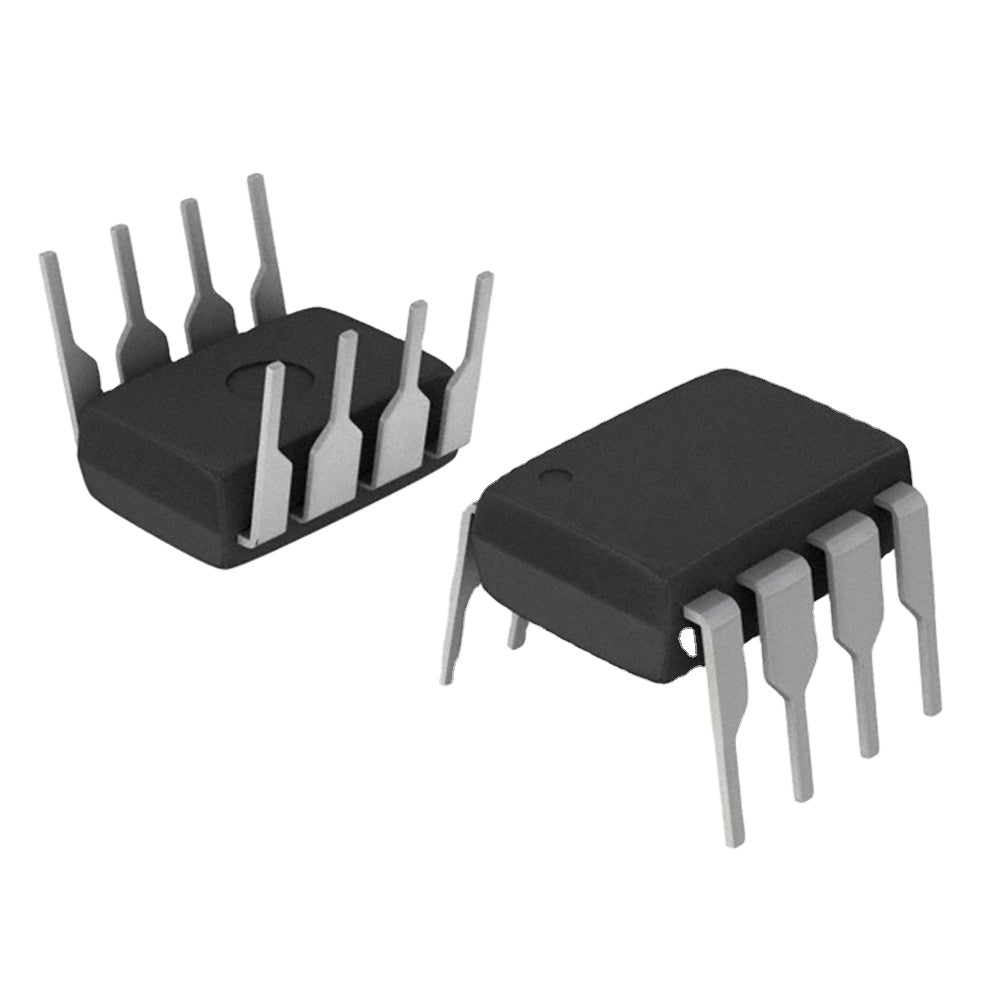

OP-Amp Buffer LM310

The OP-Amp Buffer LM310 is a voltage follower IC: an operational amplifier with its feedback connected internally for a fixed gain of 1. It has a very low input current and a low output impedance, so it can copy a signal from a high-impedance source, such as a sensor, a capacitor or a resistor divider, and drive a load without disturbing that source. Its high speed also suits fast signals and sample-and-hold circuits.

OP-Amp Buffer LM310 Specifications

• Function: unity-gain voltage follower (buffer)
• Slew rate: 30 V/µs
• Small-signal bandwidth: 20 MHz
• Input current: 7 nA maximum at 25 °C
• Supply voltage: ±5 V to ±18 V (dual supply)
• Output swing: ±10 V with a ±15 V supply and a 10 kΩ load
• Pins: 8

OP-Amp Buffer LM310 Applications

• Buffering high-impedance sensors and voltage dividers
• Sample-and-hold and peak detector circuits
• Driving cables, ADC inputs and filters from weak sources
• Buffer stages in active filters
• Analog electronics labs

What's in the Box

• 1 × LM310 voltage follower IC

Tip: The LM310 needs a dual supply of at least ±5 V, and its gain is fixed at 1, so it cannot amplify. Place 0.1 µF decoupling capacitors close to both supply pins, and check the connection diagram in the datasheet before wiring, because it has no inverting input and uses booster and balance pins instead.
