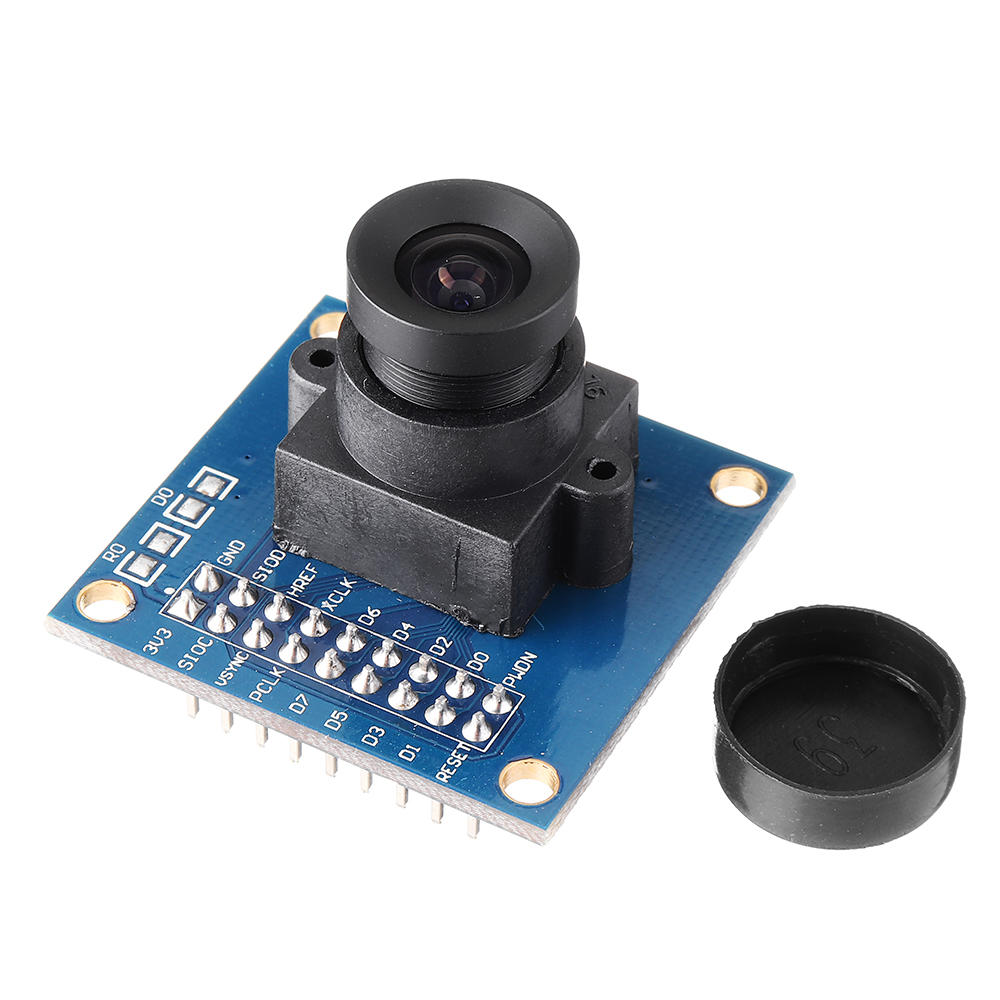

OV7670 VGA Camera Module

The OV7670 VGA Camera Module is a low-cost image sensor board built around the OmniVision OV7670 chip. It captures VGA images at up to 640 × 480 pixels, is configured over an SCCB (I2C-compatible) bus and sends image data through an 8-bit parallel port, which makes it a popular choice for learning how cameras work with microcontrollers.

OV7670 VGA Camera Module Specifications

• Image sensor: OmniVision OV7670 CMOS
• Resolution: 640 × 480 (VGA), 0.3 MP
• Frame rate: up to 30 fps at VGA
• Output formats: RGB565/555/444, YUV/YCbCr 4:2:2 and raw RGB
• Control interface: SCCB, compatible with I2C
• Data interface: 8-bit parallel with PCLK, HREF and VSYNC signals
• Logic level: 3.3 V

OV7670 VGA Camera Module Applications

• Image capture with ESP32, STM32 and Arduino boards
• Simple colour and object detection
• Robot vision and line tracking experiments
• University projects on image processing

What's in the Box

• 1 × OV7670 VGA camera module

Tip: Power the module from 3.3 V and use level shifting or resistor dividers on its inputs when connecting it to a 5 V Arduino. Versions without a FIFO buffer need an external clock on XCLK and a fast microcontroller to keep up with the data, so an ESP32 or STM32 is often easier than an Uno.
