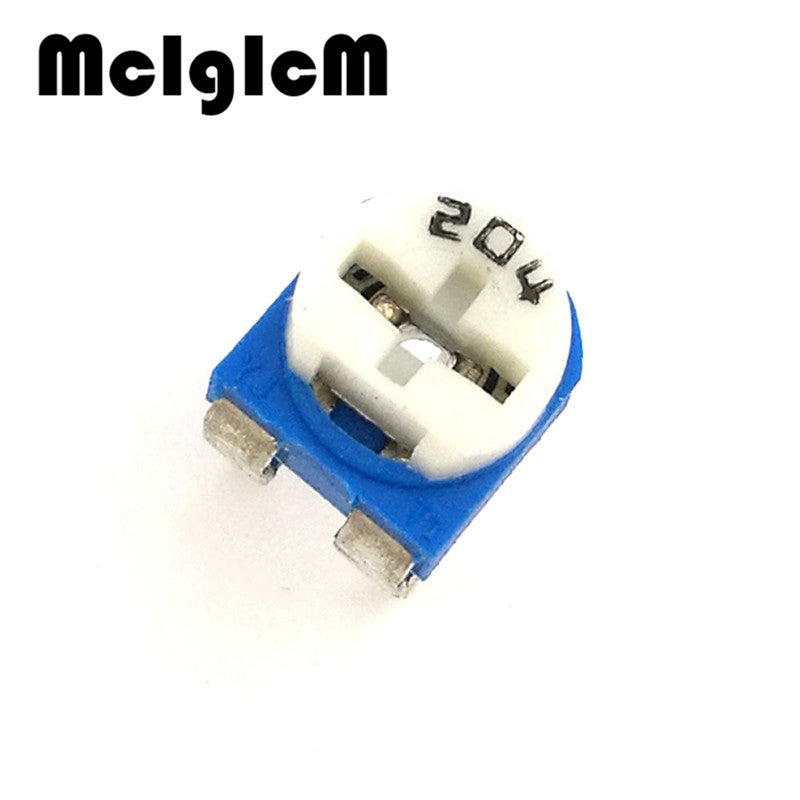

POTENTIOMETER 200K

The POTENTIOMETER 200K is a variable resistor with a total resistance of 200 kΩ between its two outer terminals. Adjusting it moves the wiper along the resistive track, so the middle pin gives an adjustable resistance or voltage. The high 200 kΩ value is useful in high-impedance circuits such as timers, op-amp gain settings and audio controls, where only a small current should flow through the potentiometer.

POTENTIOMETER 200K Specifications

• Resistance: 200 kΩ (between the outer pins)
• Terminals: 3 (two track ends and a wiper)
• Function: adjustable voltage divider or variable resistor (rheostat)
• Polarity: none

POTENTIOMETER 200K Applications

• Timing adjustment in 555 timer and oscillator circuits
• Gain and threshold setting in op-amp and comparator circuits
• Level and tone controls in high-impedance audio circuits
• Adjustable voltage dividers and reference voltages
• Electronics education and prototyping

What's in the Box

• 1 × 200 kΩ potentiometer

Tip: For a voltage divider, connect the outer pins to the supply and ground and take the output from the middle pin. For Arduino analog readings a 10 kΩ potentiometer gives steadier results; 200 kΩ is better suited to low-current circuits.
