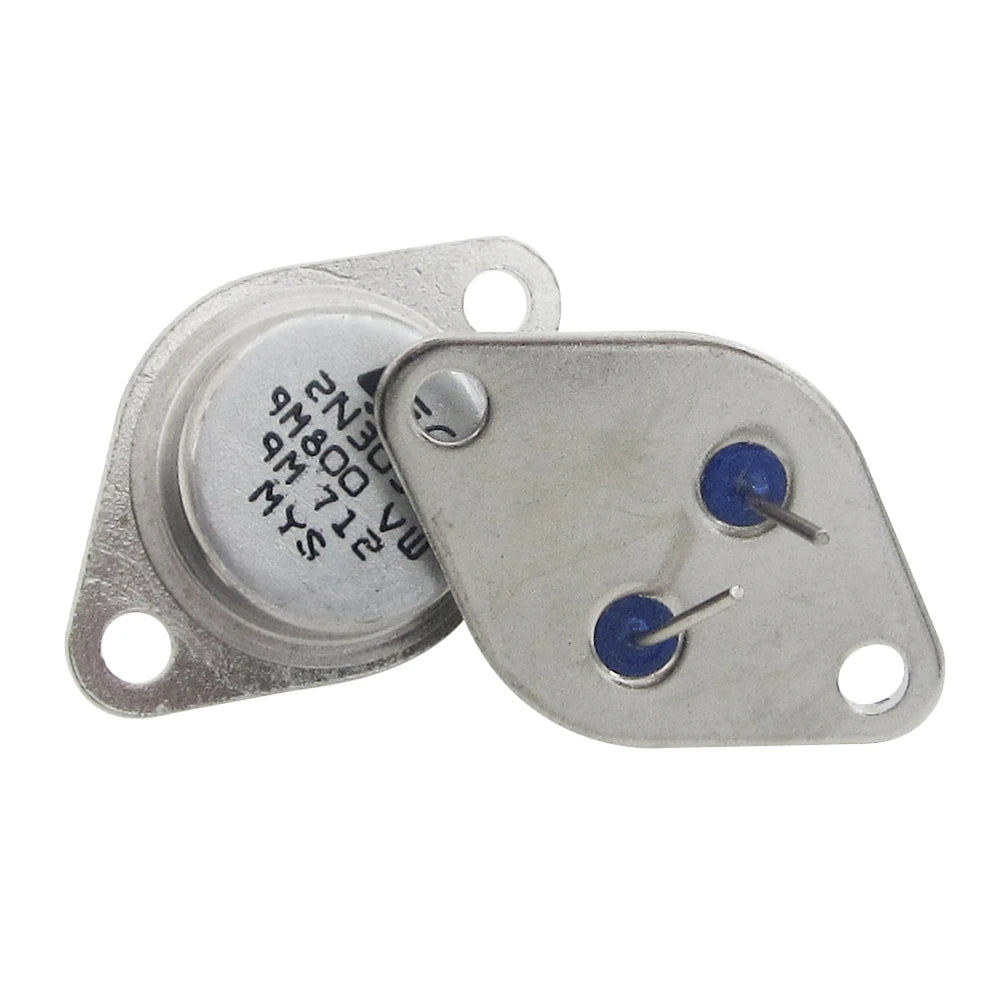

Power Transistor 2N3055 100V 15A

The Power Transistor 2N3055 is a classic NPN silicon power transistor in a TO-3 metal case, rated for 15 A of collector current and 115 W of power dissipation with a good heatsink. It has been used for decades in linear power supplies, audio power amplifiers and motor drivers, and it is still a common replacement part for repairs.

Power Transistor 2N3055 Specifications

• Type: NPN bipolar power transistor
• Package: TO-3 metal case (the case is the collector)
• Collector–base voltage (VCBO): 100 V
• Collector–emitter voltage (VCEO): 60 V
• Emitter–base voltage (VEBO): 7 V
• Collector current (IC): 15 A continuous
• Power dissipation: 115 W with the case at 25 °C
• DC gain (hFE): 20–70 at IC = 4 A
• PNP complement: MJ2955

Power Transistor 2N3055 Applications

• Series pass element in linear regulated power supplies
• Audio power amplifier output stages, paired with the MJ2955
• Driving DC motors, solenoids and other high-current loads
• Battery chargers, inverters and repair of older equipment

What's in the Box

• 1 × 2N3055 NPN power transistor

Tip: Always mount the 2N3055 on a heatsink, using a mica or silicone insulator and insulating bushes, because the metal case is connected to the collector. Its gain is low, so drive the base through a smaller driver transistor or a Darlington stage when switching high currents from a microcontroller.
