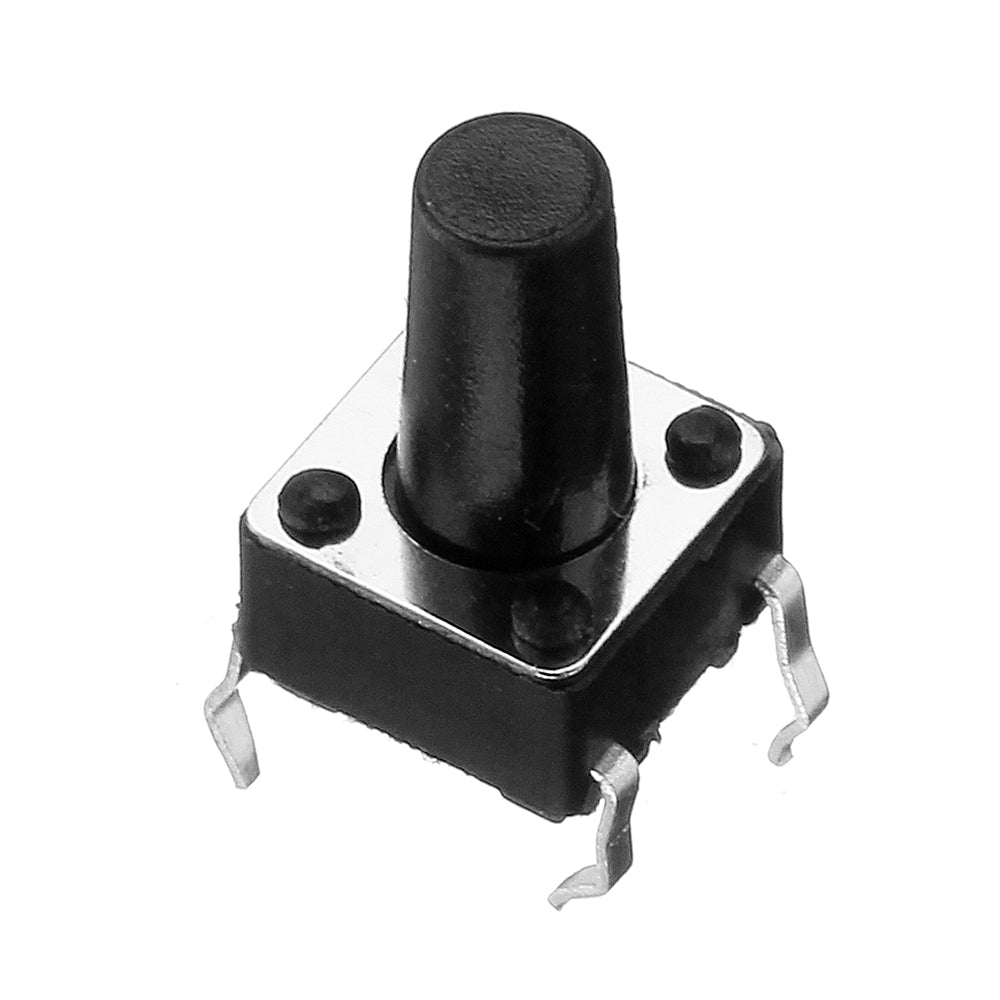

Push Button (5pcs) 6x6x10mm

The Push Button (5pcs) 6x6x10mm pack contains five momentary tactile switches with a 6 × 6 mm body and a total height of 10 mm. Each button closes the circuit only while it is pressed and springs back when released. They plug into breadboards and solder onto PCBs, making them a standard input for Arduino, ESP32 and Raspberry Pi projects, and the taller 10 mm height makes them easier to reach through a panel or case.

Push Button (5pcs) 6x6x10mm Specifications

• Type: momentary tactile push button (normally open)
• Body size: 6 × 6 mm
• Height: 10 mm
• Mounting: through-hole
• Pack size: 5 pieces

Push Button (5pcs) 6x6x10mm Applications

• User input buttons for Arduino, ESP32 and Raspberry Pi
• Reset and mode buttons on custom PCBs
• Buttons that need to reach through a panel or enclosure lid
• Electronics classes and prototyping on breadboards

What's in the Box

• 5 × 6 × 6 × 10 mm tactile push buttons

Tip: Some pins are joined together inside the switch, so check with a multimeter which pins connect when the button is pressed. Use a 10 kΩ pull-down resistor, or the microcontroller's internal pull-up, so the input does not float when the button is released.
