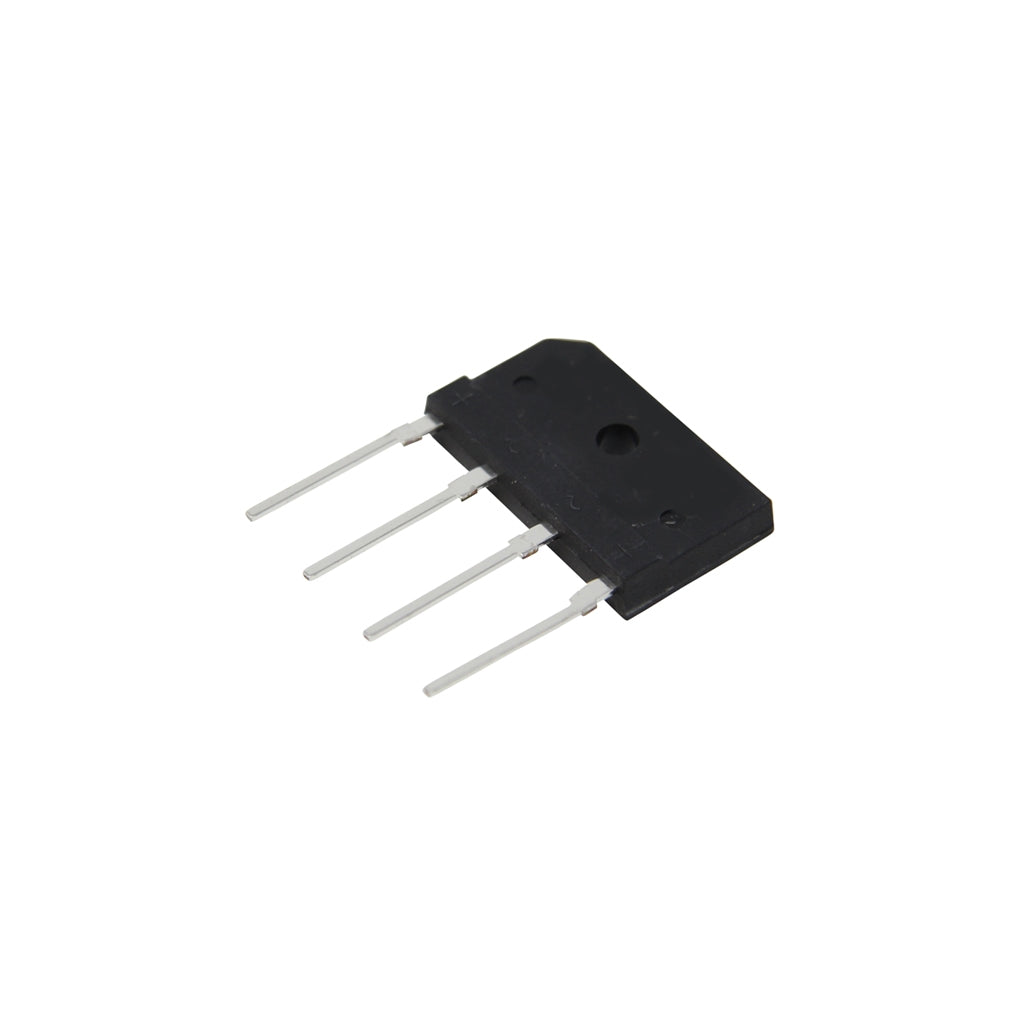

Rectifier Bridge GBJ1510 15A

The Rectifier Bridge GBJ1510 15A is a high-current single-phase full-wave bridge rectifier rated for 15 A average output current. The 10 at the end of the part number marks the 1000 V peak reverse voltage version of the GBJ15 series. Its flat single in-line GBJ package has a hole for bolting it to a heatsink, making it a good choice for power supplies, battery chargers and motor drives that need more current than small bridges can handle.

Rectifier Bridge GBJ1510 15A Specifications

• Type: single-phase full-wave bridge (4 diodes)
• Average output current: 15 A (with a suitable heatsink)
• Peak repetitive reverse voltage: 1000 V
• Maximum RMS input voltage: 700 V
• Package: GBJ, flat single in-line, 4 leads, heatsink mounting hole
• Terminals: two ~ AC inputs, + and − outputs

Rectifier Bridge GBJ1510 15A Applications

• High-current DC power supplies with a mains transformer
• Lead-acid battery chargers
• DC motor and solenoid supplies
• Inverter, UPS and power board repair
• Power electronics projects

What's in the Box

• 1 × GBJ1510 bridge rectifier

Tip: Bolt the bridge to a heatsink with thermal paste whenever the load is more than a few amps, as the full 15 A rating depends on good cooling. The + and − leads are marked on the body; connect the two ~ leads to the AC source and add a large smoothing capacitor after the bridge.
