Resistor Array 103G 9pin 10Kohm

Part no. 10253458

$0.30
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

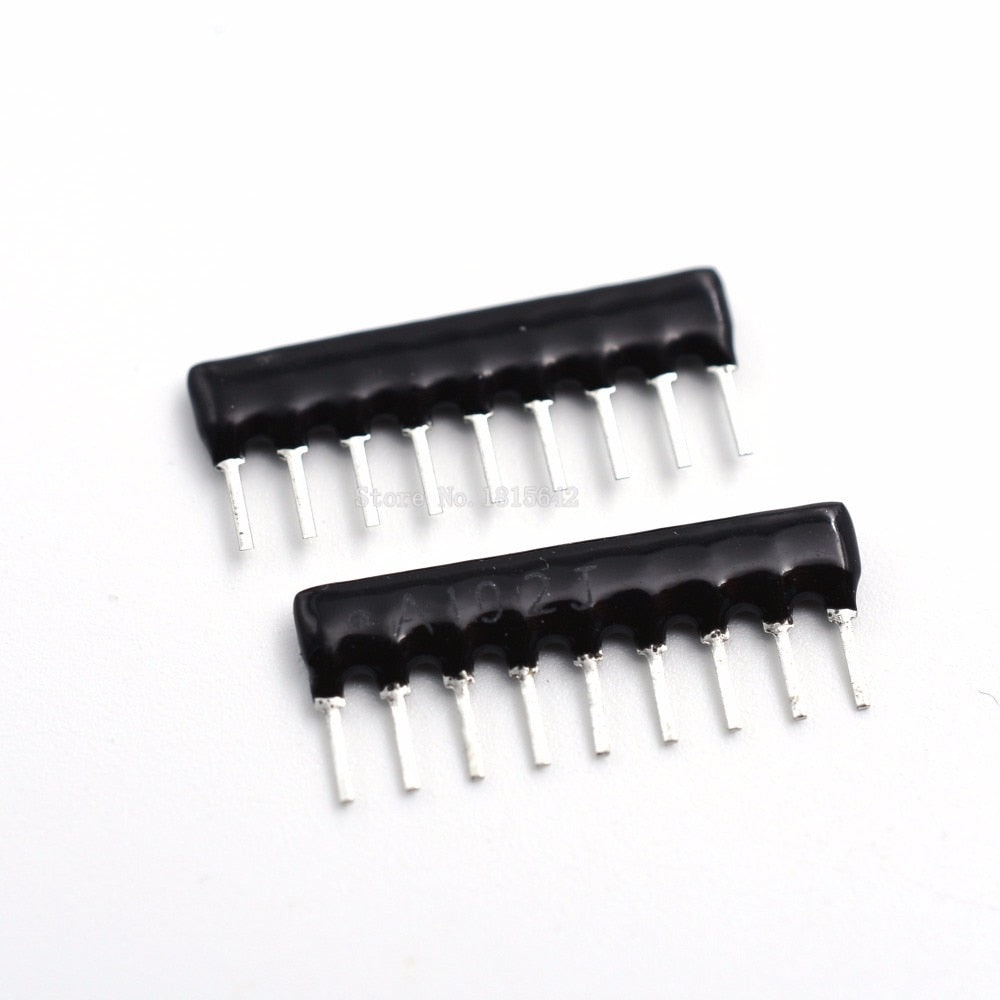

The Resistor Array 103G 9pin 10Kohm is a single in-line (SIP) resistor network that packs several 10 kΩ resistors into one compact 9-pin part. With 9 pins it is the bussed type: 8 resistors share one common pin, so a single part can pull up or pull down a full group of 8 inputs. It saves board space and soldering compared with 8 separate resistors.

Resistor Array 103G 9pin 10Kohm Specifications

  • Resistance: 10 kΩ per resistor (code 103 = 10 followed by 3 zeros, in ohms)
  • Tolerance code: G, the standard letter for ±2%
  • Pins: 9, single in-line, 2.54 mm pitch
  • Circuit: bussed, 8 resistors with one common pin
  • Pin 1: the common pin, usually marked with a dot or line on the body

Resistor Array 103G 9pin 10Kohm Applications

  • Pull-up resistors for 8 inputs at once, such as DIP switches, buttons or a data bus
  • Pull-downs on microcontroller ports
  • Keypad and button matrix circuits
  • Open-collector and open-drain outputs that need a pull-up
  • Repairing older logic and computer boards that use SIP networks

What's in the Box

  • 1 × 9-pin 10 kΩ resistor array (103G)

Tip: Connect the common pin (pin 1, next to the dot) to 5 V or 3.3 V for pull-ups, or to GND for pull-downs, and wire each of the other 8 pins to one input. To confirm the orientation, use a multimeter: pin 1 reads 10 kΩ to every other pin, while any two of the other pins read about 20 kΩ to each other.
