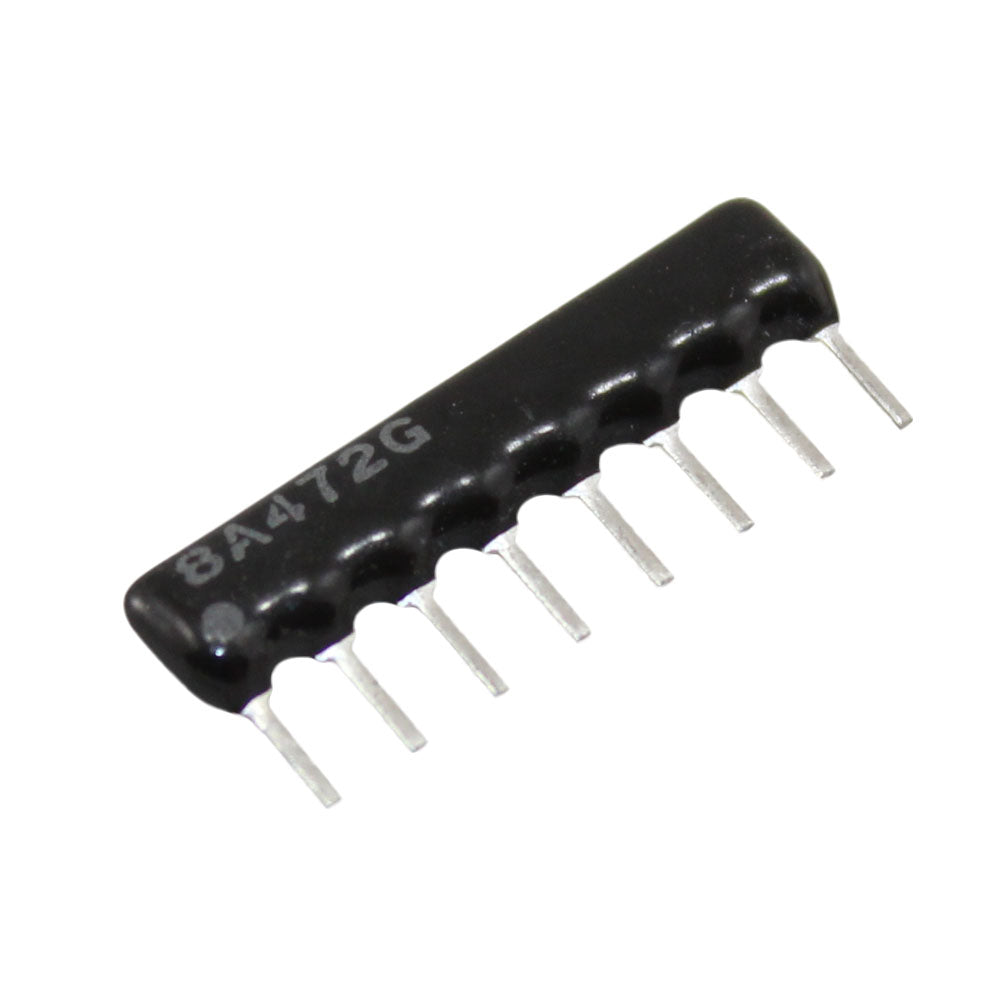

Resistor Array 8pin 10Kohm

The Resistor Array 8pin 10Kohm is a resistor network that combines several 10 kΩ resistors in one compact 8-pin part. Using one array instead of a row of separate resistors saves board space and soldering, which makes it a tidy choice for the pull-up and pull-down resistors used with buttons, switches and microcontroller inputs.

Resistor Array 8pin 10Kohm Specifications

• Resistance: 10 kΩ per resistor
• Pins: 8
• Circuit: 8-pin networks are made either bussed, with 7 resistors sharing pin 1, or isolated, with 4 separate resistors; see the tip to check which one you have
• Pin 1: usually marked with a dot or line on the body

Resistor Array 8pin 10Kohm Applications

• Pull-up resistors for push buttons and DIP switches
• Pull-downs that stop microcontroller inputs from floating
• Pull-ups for open-collector and open-drain outputs
• Keypad and button matrix circuits
• Repairing boards that use resistor networks

What's in the Box

• 1 × 8-pin 10 kΩ resistor array

Tip: Check the layout with a multimeter before wiring. Measure pin 1 to pin 2 and pin 1 to pin 3: if both read about 10 kΩ, the array is bussed and pin 1 is the common pin; if pin 1 to pin 3 reads open, it is isolated, with resistors on pins 1–2, 3–4, 5–6 and 7–8.
