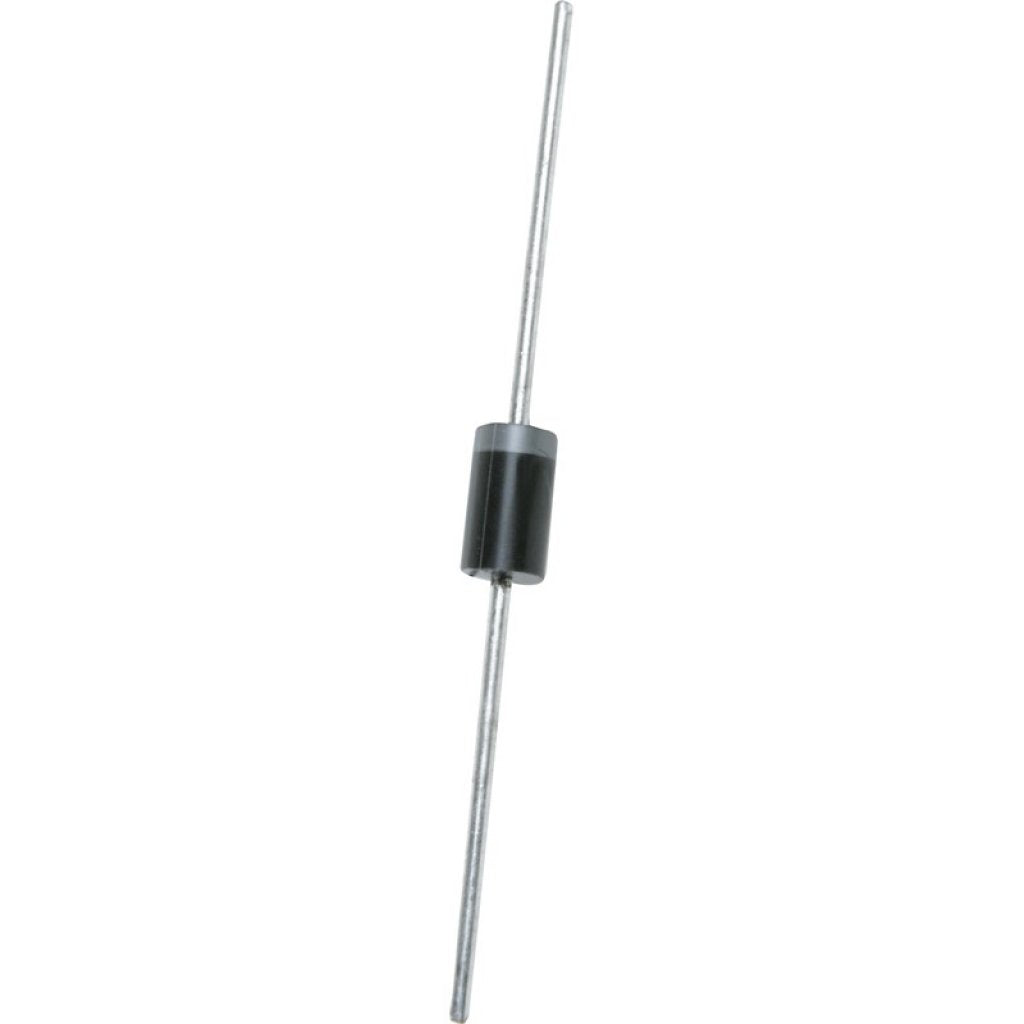

Schottky Barrier Diode 1N5821 30V 3A

The Schottky Barrier Diode 1N5821 is a 3 A, 30 V Schottky rectifier with a much lower forward voltage than standard silicon diodes such as the 1N4007. The lower voltage drop means less power lost as heat, and its fast switching makes it a popular catch diode in DC-DC converters, solar chargers and low-voltage power supplies.

Schottky Barrier Diode 1N5821 Specifications

• Type: Schottky barrier rectifier diode
• Peak repetitive reverse voltage: 30 V
• Average forward current: 3 A
• Forward voltage: about 0.5 V at 3 A
• Peak surge current: 80 A (8.3 ms half sine wave)
• Package: DO-201AD axial, through-hole

Schottky Barrier Diode 1N5821 Applications

• Catch (freewheeling) diode in buck converters and switching regulators
• Reverse-polarity protection for battery-powered devices
• Blocking diode for small solar panels
• OR-ing two power sources
• Low-voltage, high-current rectifiers

What's in the Box

• 1 × 1N5821 Schottky diode

Tip: The band on the body marks the cathode. Schottky diodes leak more current in reverse than silicon diodes, especially when hot, so keep the reverse voltage comfortably below 30 V and give the leads some copper area for cooling at full current.
