Speaker Grove

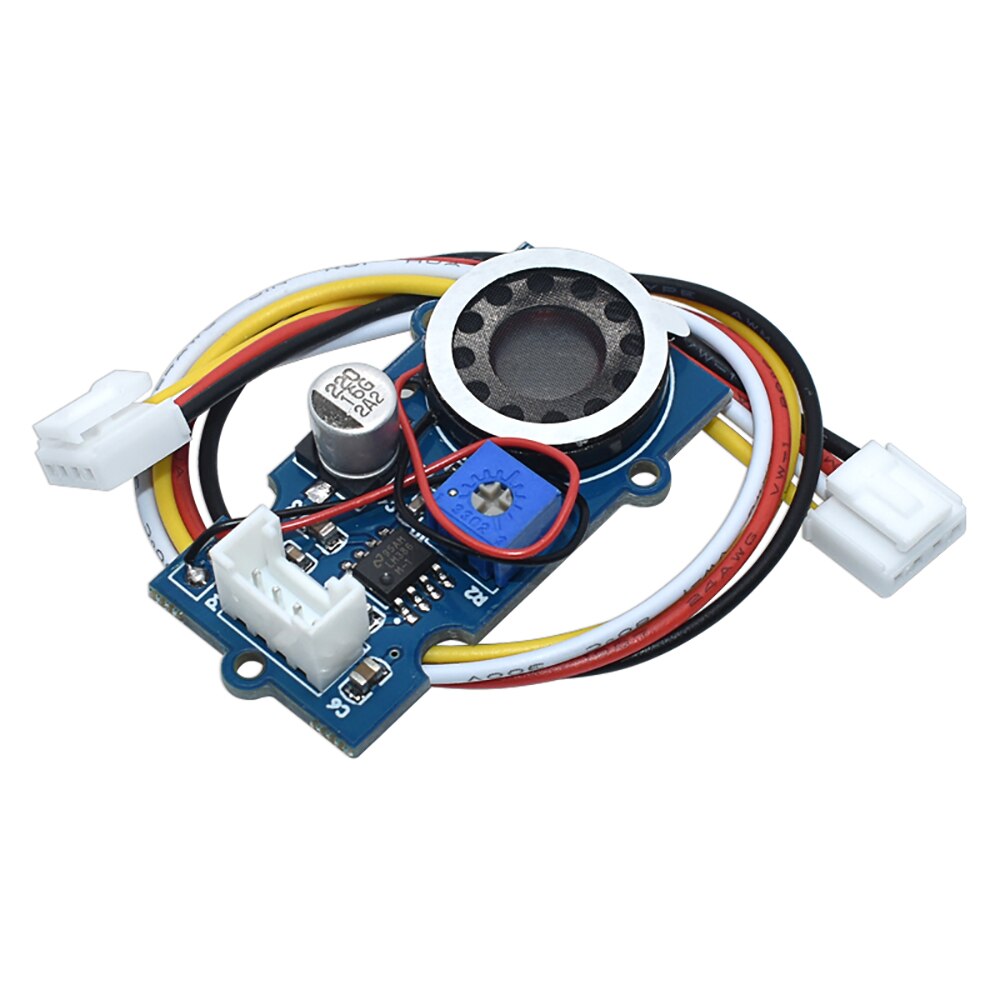

The Speaker Grove module combines a small speaker with an on-board audio power amplifier and a Grove connector. Plug it into a Grove base shield or a Grove-compatible board with one cable, then drive the signal pin to play tones, melodies, alarms and simple sound effects. The loudness is set with the on-board potentiometer, so no extra parts are needed.

Speaker Grove Specifications

• Operating voltage: 4.0–5.5 V (5 V typical)
• Amplifier voltage gain: up to 46 dB
• Bandwidth: up to 20 kHz
• Volume control: on-board potentiometer
• Interface: Grove 4-pin connector, sound signal on the SIG pin

Speaker Grove Applications

• Alarms and alerts with a fuller sound than a buzzer
• Playing melodies with the Arduino tone() function
• Doorbells, timers and game sound effects
• Sound feedback for robots and interactive projects
• Grove classroom kits and STEM labs

What's in the Box

• 1 × Speaker Grove module

Tip: Connect the module to a digital Grove port with PWM, such as D3, and use the Arduino tone() function to play notes. Run it from 5 V, because 3.3 V is below the module's 4 V minimum.
