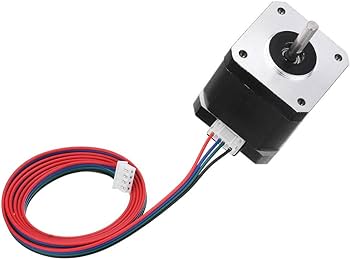

Stepper Motor 17HS8401S-D150S nema 17

The Stepper Motor 17HS8401S-D150S nema 17 is a bipolar hybrid stepper motor in the standard NEMA 17 frame, with a 1.8° step angle for precise, repeatable positioning. It is a common choice for 3D printer axes and extruders, small CNC machines, laser engravers, camera sliders and robots, driven by stepper drivers such as the A4988, DRV8825 or TMC2208.

Stepper Motor 17HS8401S-D150S nema 17 Specifications

• Model: 17HS8401S-D150S
• Frame size: NEMA 17, 42 × 42 mm faceplate
• Mounting: 4 × M3 holes on 31 mm spacing
• Step angle: 1.8° (200 full steps per revolution)
• Type: 2-phase bipolar hybrid stepper, 4 wires
• Shaft diameter: 5 mm

Stepper Motor 17HS8401S-D150S nema 17 Applications

• 3D printer X, Y and Z axes and extruders
• Desktop CNC routers and laser engravers
• Camera sliders, turntables and pan/tilt heads
• Robotics, conveyors and automation projects

What's in the Box

• 1 × 17HS8401S-D150S NEMA 17 stepper motor

Tip: Set the current limit on your stepper driver to match the motor's rated current before running it, and never connect or disconnect the motor wires while the driver is powered, because this can destroy the driver.
