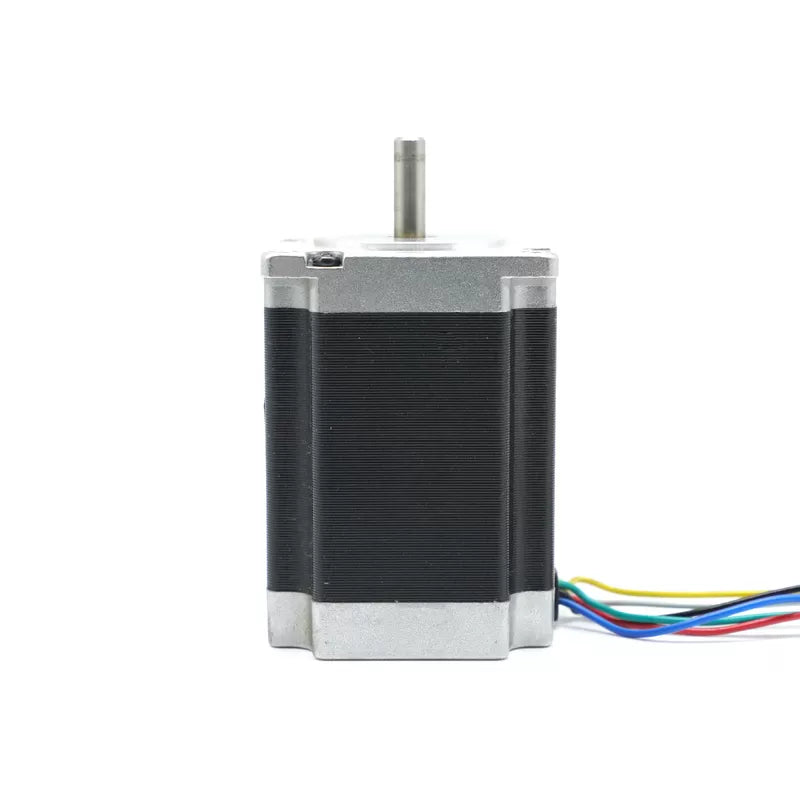

Stepper Motor Nema23 2-Phase 0.9 deg 2.8A 57BYGHM604-09

The Stepper Motor Nema23 2-Phase 0.9 deg (model 57BYGHM604-09) is a 2-phase hybrid stepper motor with a 0.9° step angle, which gives 400 full steps per revolution: twice the resolution of a standard 1.8° motor. Rated at 2.8 A per phase in the popular NEMA 23 frame, it is a good choice for CNC machines, laser engravers and other builds that need fine, repeatable positioning.

Stepper Motor Nema23 2-Phase 0.9 deg Specifications

• Model: 57BYGHM604-09
• Frame size: NEMA 23 (57 mm square)
• Phases: 2
• Step angle: 0.9° (400 steps per revolution in full-step mode)
• Rated current: 2.8 A per phase
• Mounting: standard NEMA 23 pattern, 4 holes on 47.14 mm centres

Stepper Motor Nema23 2-Phase 0.9 deg Applications

• CNC routers and milling machines
• Laser engravers and cutters
• Camera sliders, telescope mounts and linear stages
• Large-format 3D printers
• Automation and robotics projects that need precise angles

What's in the Box

• 1 × NEMA 23 stepper motor, model 57BYGHM604-09

Tip: Use a stepper driver rated for at least 2.8 A, such as a DM542 or TB6600, and set its current limit to 2.8 A. Microstepping on the driver makes motion smoother and quieter. Never connect the motor coils directly to an Arduino or ESP32 pin.
