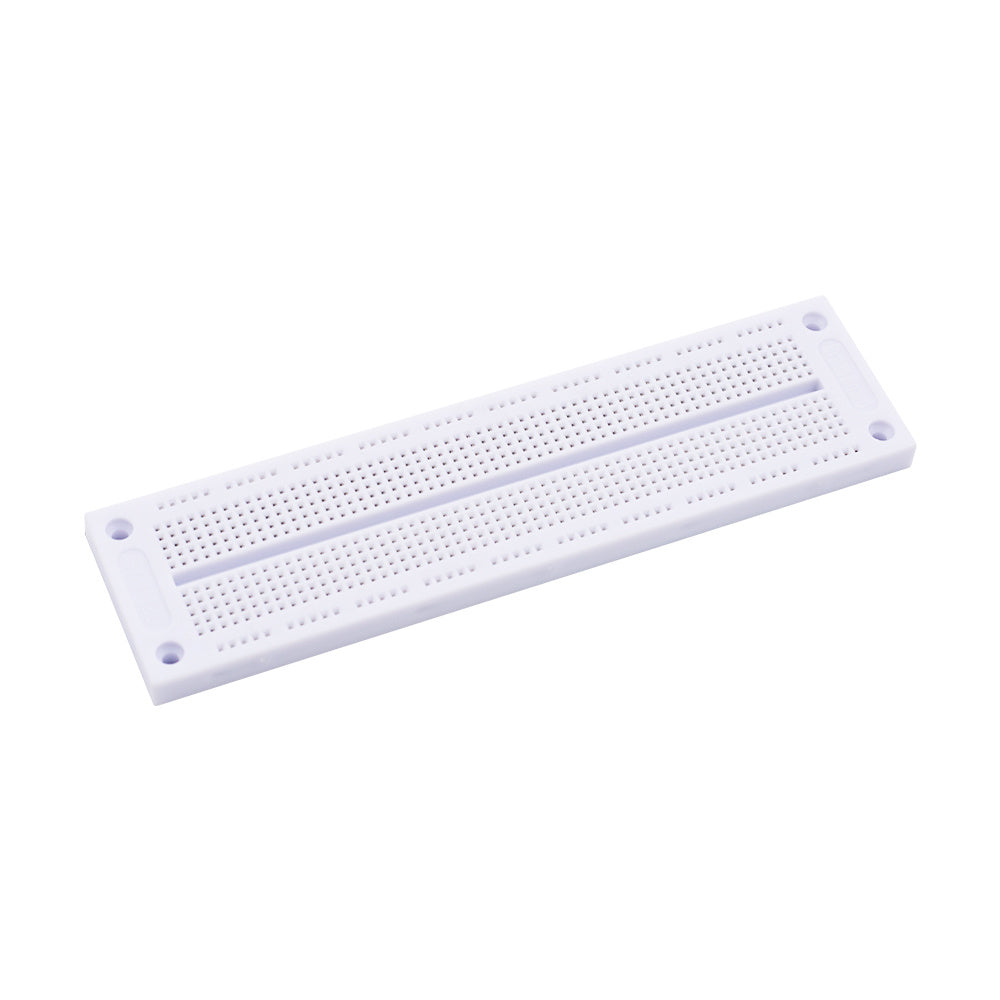

SYB-120 700 Points Breadboard

The SYB-120 700 Points Breadboard is a solderless breadboard with 700 tie points for building and testing circuits without soldering. It sits between half-size and full-size boards in capacity, giving enough room for an Arduino Nano or a few DIP ICs plus sensors, LEDs and resistors, and every part can be pulled out and reused.

SYB-120 700 Points Breadboard Specifications

• Model: SYB-120
• Tie points: 700 in total
• Layout: terminal strips on both sides of a centre channel that fits DIP ICs
• Power rails: distribution strips along the top and bottom edges for VCC and GND
• Hole pitch: 2.54 mm (0.1 in)
• Wire size: accepts 20–29 AWG solid wire and component leads
• Mounting: corner mounting holes

SYB-120 700 Points Breadboard Applications

• Arduino Nano, Pro Mini and ESP8266 prototypes
• Testing logic ICs, op-amps and 555 timer circuits
• School labs and university electronics courses
• Trying out sensors and modules before making a PCB

What's in the Box

• 1 × SYB-120 700-point solderless breadboard

Tip: Use 22 AWG solid-core jumper wire for the most reliable contact; stranded wire and very thick leads can loosen the spring clips over time. Check whether the power rails are split in the middle before relying on them along the full length.
