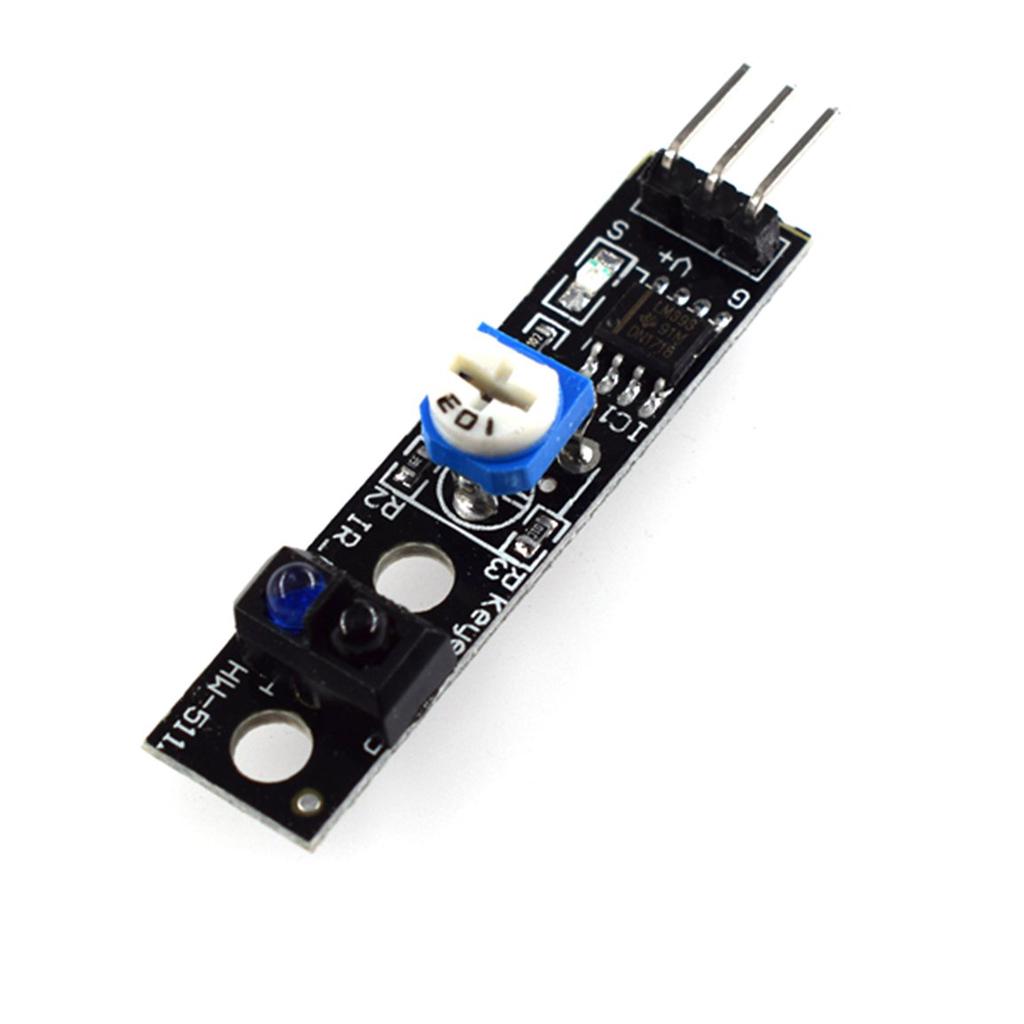

TCRT5000 Tracking Module Digital

The TCRT5000 Tracking Module Digital is an infrared reflective sensor board for line-following robots and short-range object detection. The TCRT5000 sensor pairs an infrared LED with a phototransistor, and an LM393 comparator on the board turns the reflected light into a clean digital signal that an Arduino, ESP32 or Raspberry Pi can read directly. A potentiometer on the board sets the switching threshold.

TCRT5000 Tracking Module Digital Specifications

• Sensor: TCRT5000 reflective optical sensor (infrared LED + phototransistor)
• Infrared wavelength: 950 nm
• Comparator: LM393, digital output (D0)
• Sensitivity: adjustable with the on-board potentiometer
• Supply voltage: 3.3–5 V
• Sensing distance: short range; the TCRT5000 works best at about 2.5 mm from the surface, with a usable range of a few millimetres up to about 15 mm

TCRT5000 Tracking Module Digital Applications

• Line-following and track-following robots
• Detecting black and white marks or edges
• Counting objects or wheel rotations with a reflective mark
• Short-range presence detection in STEM and robotics projects

What's in the Box

• 1 × TCRT5000 tracking module (digital output)

Tip: Mount the sensor a few millimetres above the track and turn the potentiometer while watching the output until it switches cleanly between the black line and the white floor. Strong sunlight contains infrared and can upset the readings, so test under the lighting you will actually use.
