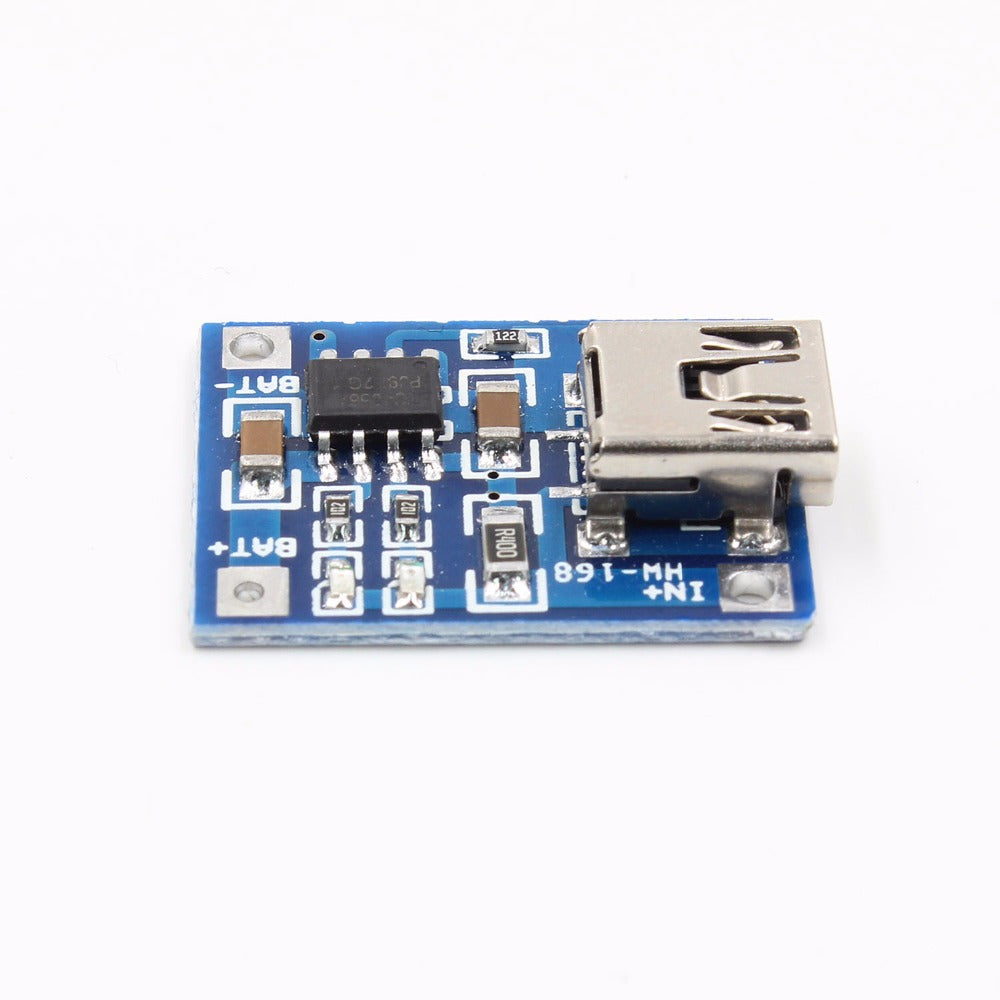

TP4056 1A Lipo Battery Charging Board Mini USB

The TP4056 1A Lipo Battery Charging Board is a small charger module for single-cell 3.7 V lithium-ion and lithium-polymer (LiPo) batteries, with a Mini USB input. Based on the TP4056 linear charger IC, it charges the cell with constant current and then constant voltage up to 4.2 V, at up to 1 A. It is a simple way to add USB charging to Arduino, ESP32 and other battery-powered projects.

TP4056 1A Lipo Battery Charging Board Specifications

• Charger IC: TP4056
• Input: 5 V via Mini USB or the input solder pads
• Battery: 1 cell Li-ion or LiPo, 3.7 V nominal
• Charge voltage: 4.2 V
• Charge current: up to 1 A (set by a 1.2 kΩ programming resistor)
• Charge method: constant current / constant voltage (CC/CV)
• Indicators: two LEDs for charging and charge complete

TP4056 1A Lipo Battery Charging Board Applications

• USB charging for 18650 cells and LiPo packs
• Battery-powered Arduino, ESP32 and ESP8266 projects
• Portable sensors, lights and DIY power banks
• Robotics and STEM kits

What's in the Box

• 1 × TP4056 charging board, Mini USB

Tip: Connect the battery to the battery pads with the correct polarity, as reversing it can destroy the board. For smaller cells, lower the charge current by changing the programming resistor (for example 2 kΩ gives about 580 mA), and add a protection circuit if your cell does not already have one.
