Transistor TIP3055 15A 60V NPN

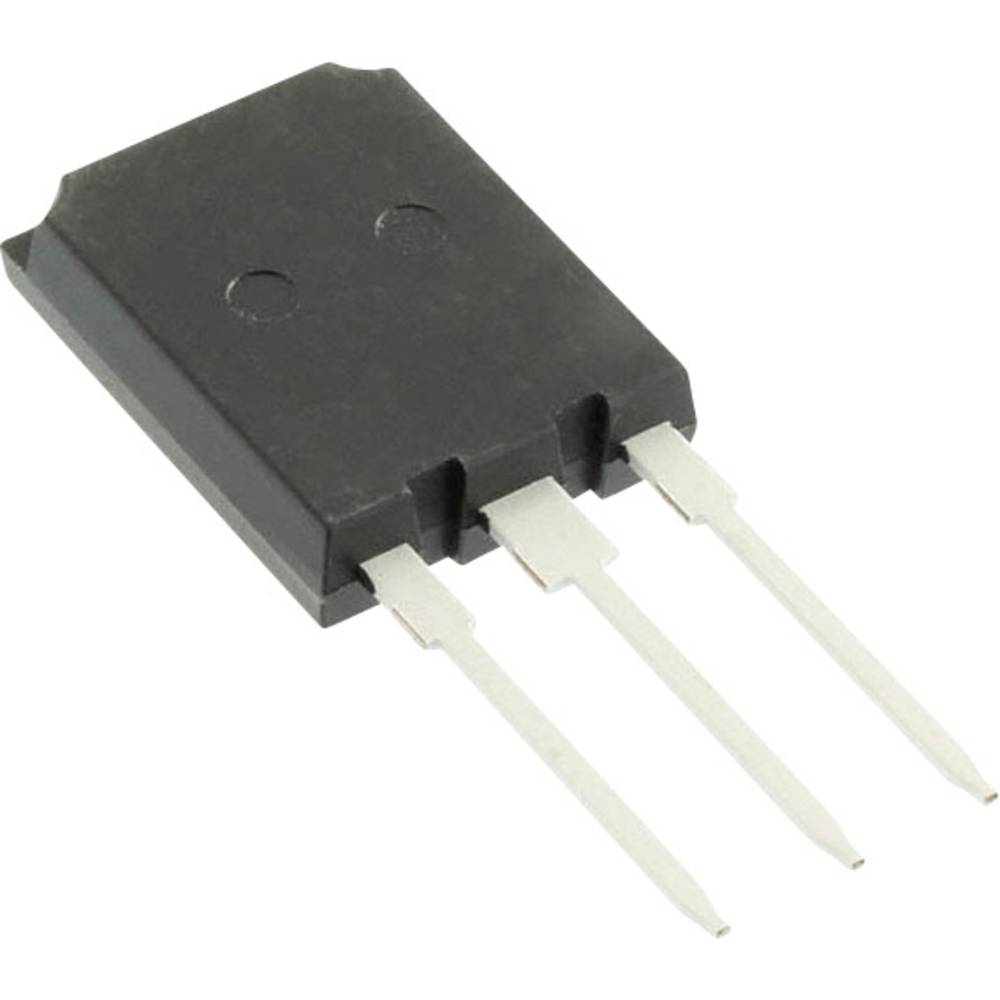

The Transistor TIP3055 15A 60V NPN is a high-power NPN bipolar transistor rated 60 V and 15 A continuous collector current, with 90 W of power dissipation. It is the plastic-package counterpart of the classic 2N3055 and the complement of the PNP TIP2955, which makes it a popular choice for audio power amplifiers, linear bench supplies and heavy-load switching.

Transistor TIP3055 15A 60V NPN Specifications

• Type: NPN bipolar junction transistor (BJT)
• Collector-emitter voltage (VCEO): 60 V
• Collector-base voltage (VCB): 100 V
• Collector current (IC): 15 A continuous
• Base current (IB): 7 A max
• Power dissipation: 90 W with the case at 25 °C
• DC current gain (hFE): 20–70 at 4 A
• Transition frequency: 2.5 MHz minimum
• Package: TO-247 or TO-218 (SOT-93) power package, pins 1-2-3 = base, collector, emitter
• Complement: TIP2955 (PNP)

Transistor TIP3055 15A 60V NPN Applications

• Audio power amplifier output stages with the TIP2955
• Pass transistors in high-current linear power supplies
• Switching DC motors, solenoids and heaters
• Battery chargers and current boosters for voltage regulators

What's in the Box

• 1 × TIP3055 NPN power transistor

Tip: The gain falls at high current (as low as 20 at 4 A), so a microcontroller pin cannot drive it directly at full load; use a driver transistor or a Darlington arrangement. Always use a heatsink with thermal paste, and insulate the metal back, which is connected to the collector.
