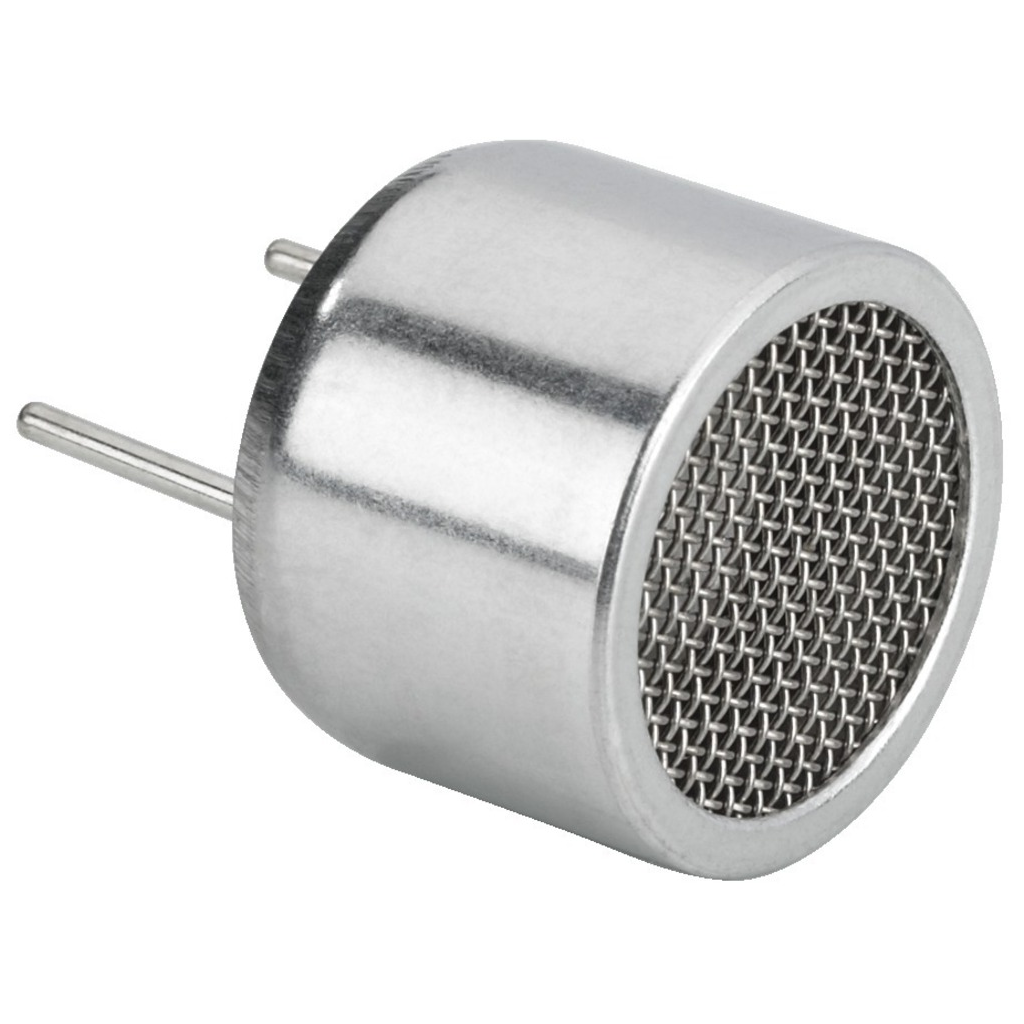

Ultrasonic Transmitter UST-40T

The Ultrasonic Transmitter UST-40T is a 40 kHz ultrasonic transducer that turns an electrical signal into sound waves above the range of human hearing. The "T" marks it as the transmitter; it works together with a matching receiver such as the UST-40R to build distance sensors, object detectors and remote triggers, using the same principle as the popular HC-SR04 sensor module.

Ultrasonic Transmitter UST-40T Specifications

• Type: ultrasonic transmitter (sender) transducer
• Centre frequency: 40 kHz
• Matching receiver: UST-40R
• Terminals: 2 pins
• Drive signal: 40 kHz square or sine wave

Ultrasonic Transmitter UST-40T Applications

• DIY ultrasonic distance meters
• Obstacle detection for robots
• Ultrasonic proximity and intrusion alarms
• Simple signalling links between a transmitter and a receiver
• Physics demonstrations of sound waves and echoes

What's in the Box

• 1 × UST-40T ultrasonic transmitter

Tip: Drive the transmitter at 40 kHz, for example with a 555 timer or a microcontroller PWM output. A higher drive voltage through a transistor or driver IC gives longer range, as long as you stay within the part's rating. Aim it straight at the receiver or target, because the beam is directional.
