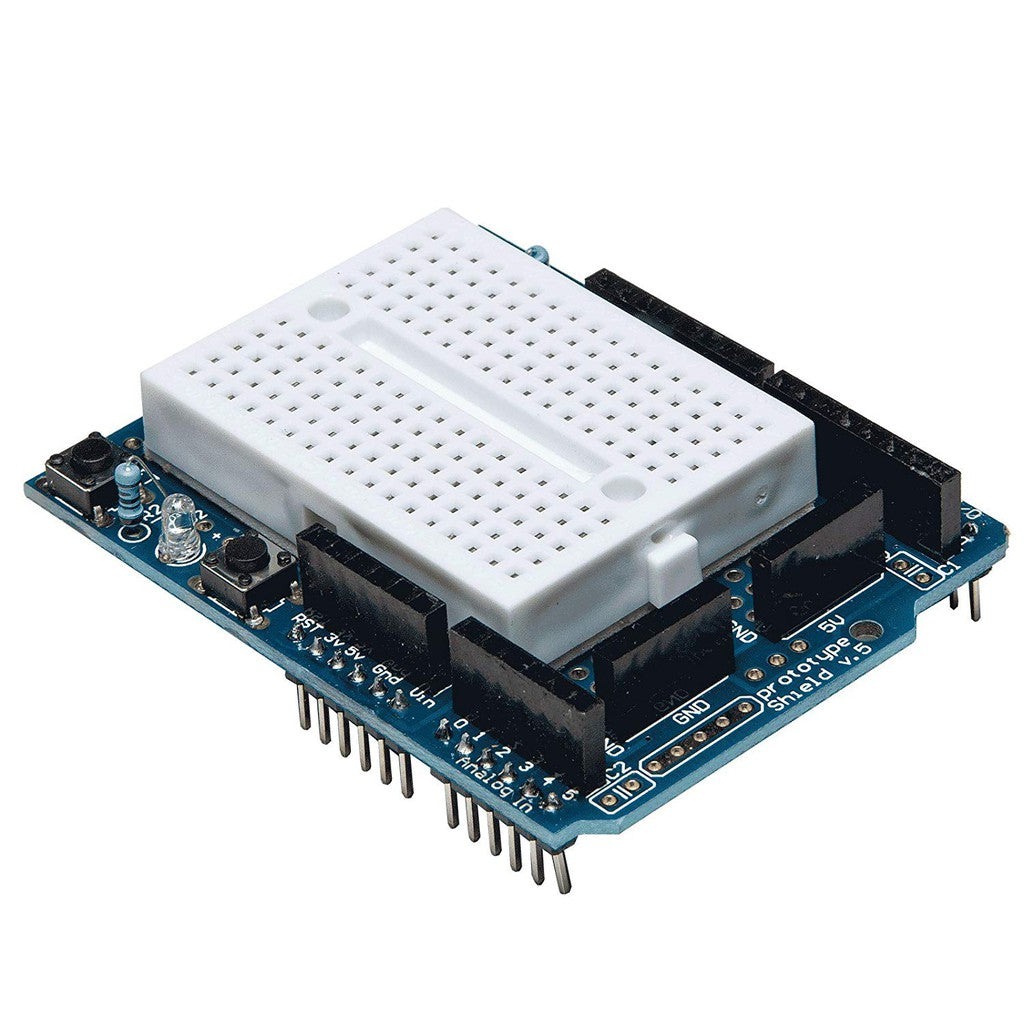

UNO Proto Prototype Shield + 170pts Breadboard

The UNO Proto Prototype Shield plugs on top of an Arduino Uno and gives you a place to build circuits right above the board. It comes with a 170 tie-point mini breadboard for solderless testing, and the shield's prototyping area can be soldered when a design is ready to become permanent.

UNO Proto Prototype Shield Specifications

• Compatible board: Arduino Uno R3 and compatible boards
• Form factor: stacks on the Uno headers
• Prototyping area: through-hole pads for soldering parts
• Breadboard: 170 tie-point mini breadboard included
• Pin access: Uno I/O and power pins broken out on the shield
• Pitch: 2.54 mm (0.1 in)

UNO Proto Prototype Shield Applications

• Building small circuits directly on top of an Arduino Uno
• Testing sensors, LEDs and buttons without a separate breadboard
• Turning a working breadboard circuit into a soldered add-on
• Compact classroom and workshop projects

What's in the Box

• 1 × UNO prototype shield
• 1 × 170-point mini breadboard
• Arduino Uno not included

Tip: Check that no solder joints or long leads on the underside touch the Uno's USB connector, as this can cause short circuits. Use short jumper wires on the mini breadboard to keep the shield neat.
