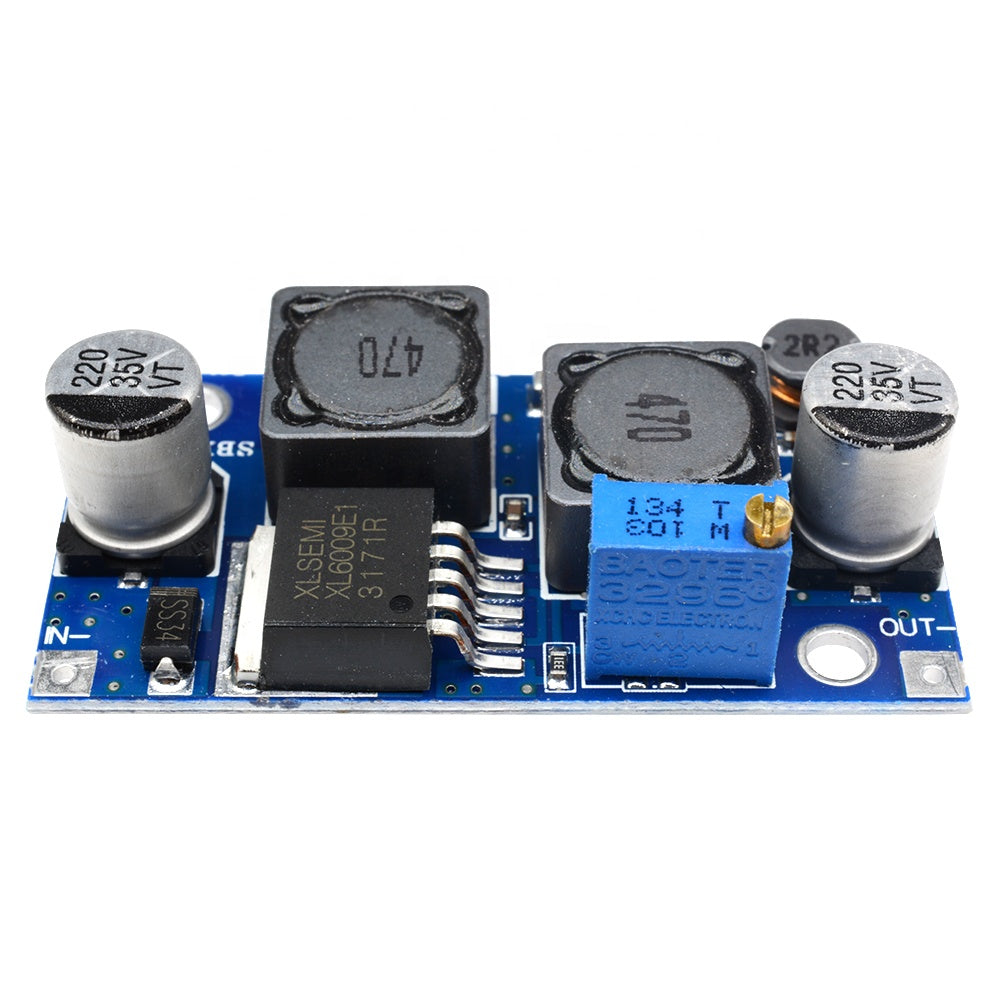

XL6009 DC-DC Booster Step-Up Module

The XL6009 DC-DC Booster Step-Up Module raises a lower DC voltage to a higher, adjustable output using the XL6009 switching regulator chip. You set the output voltage with the onboard potentiometer, so one module can turn a Li-ion battery or a 5 V USB supply into 9 V, 12 V or more for modules, LED strips and small motors.

XL6009 DC-DC Booster Step-Up Module Specifications

• Regulator chip: XL6009
• Input voltage: about 3 V to 32 V
• Output voltage: adjustable, about 5 V to 35 V, always higher than the input
• Switching frequency: 400 kHz
• Switch current: up to 4 A (internal switch limit; the usable output current is lower)
• Efficiency: up to about 94%
• Terminals: IN+, IN−, OUT+, OUT−

XL6009 DC-DC Booster Step-Up Module Applications

• Raising 3.7 V Li-ion or 5 V USB power to 9 V or 12 V
• Powering 12 V LED strips, fans and small motors from batteries
• Running 12 V modules from a 5 V supply in Arduino and ESP32 projects
• Bench experiments and portable power projects

What's in the Box

• 1 × XL6009 step-up module

Tip: Before connecting your load, power the module and turn the potentiometer while measuring the output with a multimeter. A boost converter draws more current from its input than it delivers, roughly output power ÷ input voltage ÷ efficiency, so make sure your battery or supply can provide it.
