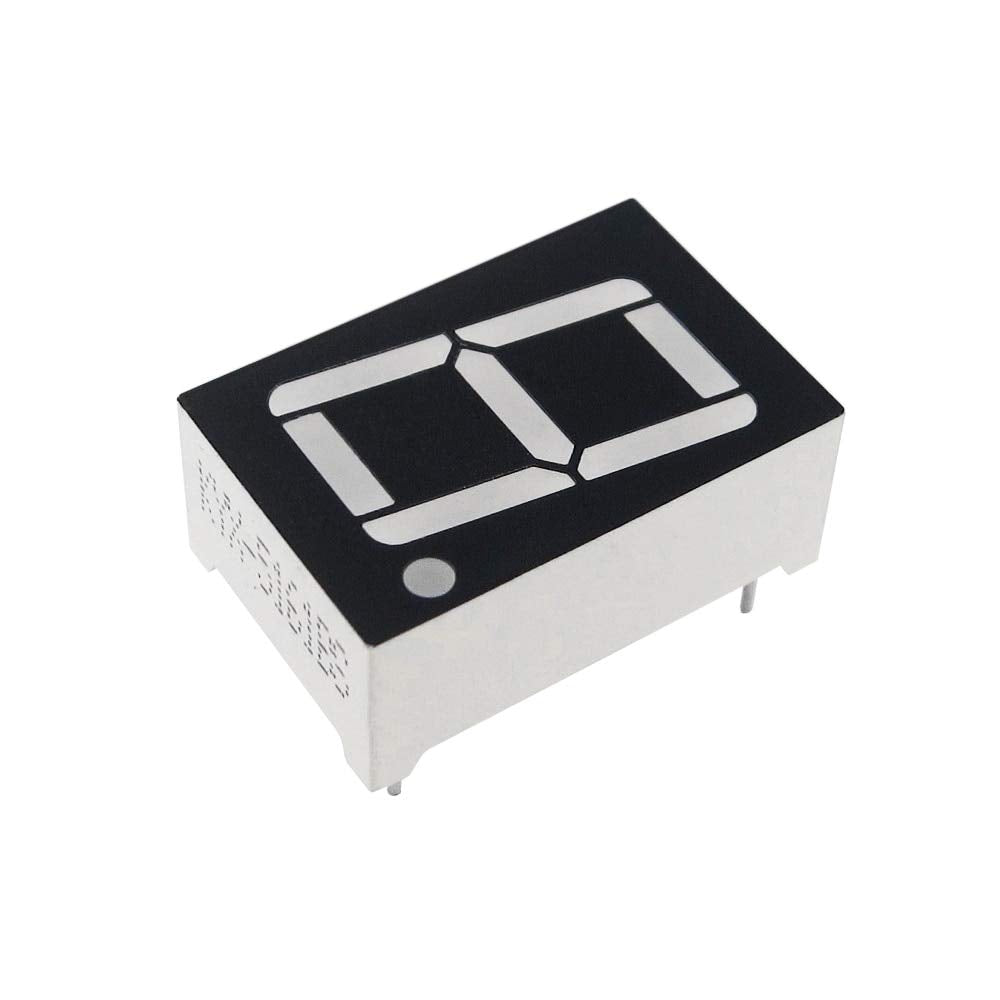

0.56 inch Red 1 Digit 7 Segment LED Display CC

The 0.56 inch Red 1 Digit 7 Segment LED Display CC is a single-digit red display with seven segments and a decimal point, in a common cathode (CC) configuration. All the segment cathodes are joined to the common pins, which go to ground, and each segment lights when its pin is driven HIGH through a resistor. It is a simple way to show numbers in counters, timers and Arduino projects.

1 Digit 7 Segment LED Display Specifications

• Digits: 1, with decimal point
• Digit height: 0.56 in (about 14.2 mm)
• Colour: red
• Configuration: common cathode (CC)
• Pins: 10 (7 segments, decimal point and 2 common pins)
• Segment forward voltage: about 2 V, typical for red LEDs
• Segment current: 10–20 mA, set with a series resistor

1 Digit 7 Segment LED Display Applications

• Counters, timers and electronic dice with Arduino
• Digital electronics labs with BCD decoders such as the 7448 or CD4511
• Status and error-code displays on small devices
• Learning segment control and display multiplexing

What's in the Box

• 1 × 0.56 inch red single-digit 7-segment display, common cathode

Tip: Connect the common pins to GND and drive each segment through its own 220–330 Ω resistor at 5 V; a single shared resistor on the common pin makes the brightness change with the number shown. You can find each segment quickly with a multimeter in diode test mode.
