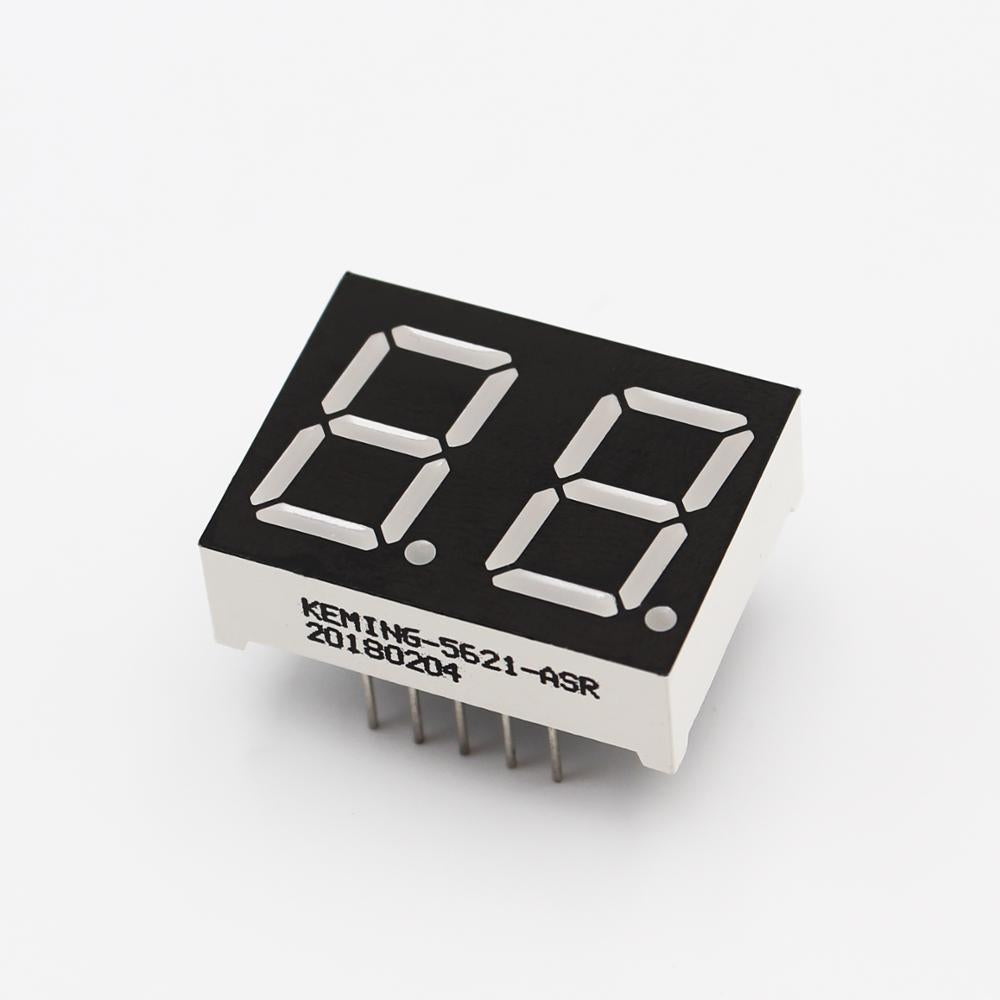

0.56 inch Red 2 Digit 7 Segment LED Display CA

Part no. 10020753

$0.75
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The 0.56 inch Red 2 Digit 7 segment LED display is a dual-digit numeric display with red segments and a common anode (CA) connection. Each digit is 0.56 in (about 14 mm) high, which is easy to read from across a workbench, and the two digits make it a good fit for counters, timers, temperature readouts and scoreboards built with Arduino, PIC or ESP32 boards.

0.56 inch Red 2 Digit Display Specifications

  • Digit height: 0.56 in (approx. 14.2 mm)
  • Digits: 2
  • Segments: 7 per digit (a to g)
  • Colour: red
  • Configuration: common anode (CA)
  • Typical segment rating: about 2 V forward voltage at 10–20 mA (typical for red LED segments)
  • Mounting: through-hole pins

0.56 inch Red 2 Digit Display Applications

  • Two-digit counters and countdown timers
  • Temperature and humidity readouts
  • Scoreboards, queue numbers and electronic dice
  • Learning display multiplexing with Arduino and other microcontrollers

What's in the Box

  • 1 × 0.56 in red 2-digit 7-segment display, common anode

Tip: On a common anode display the common pins go to the positive supply (or to a PNP transistor when multiplexing) and each segment lights when its pin is pulled low. Use a 220–330 Ω resistor on every segment line at 5 V, and check the pinout of your part before wiring.
