0.56 inch Red 4 Digit 7 Segment LED Display CC 5461AS

Part no. 10010761

$1.00
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

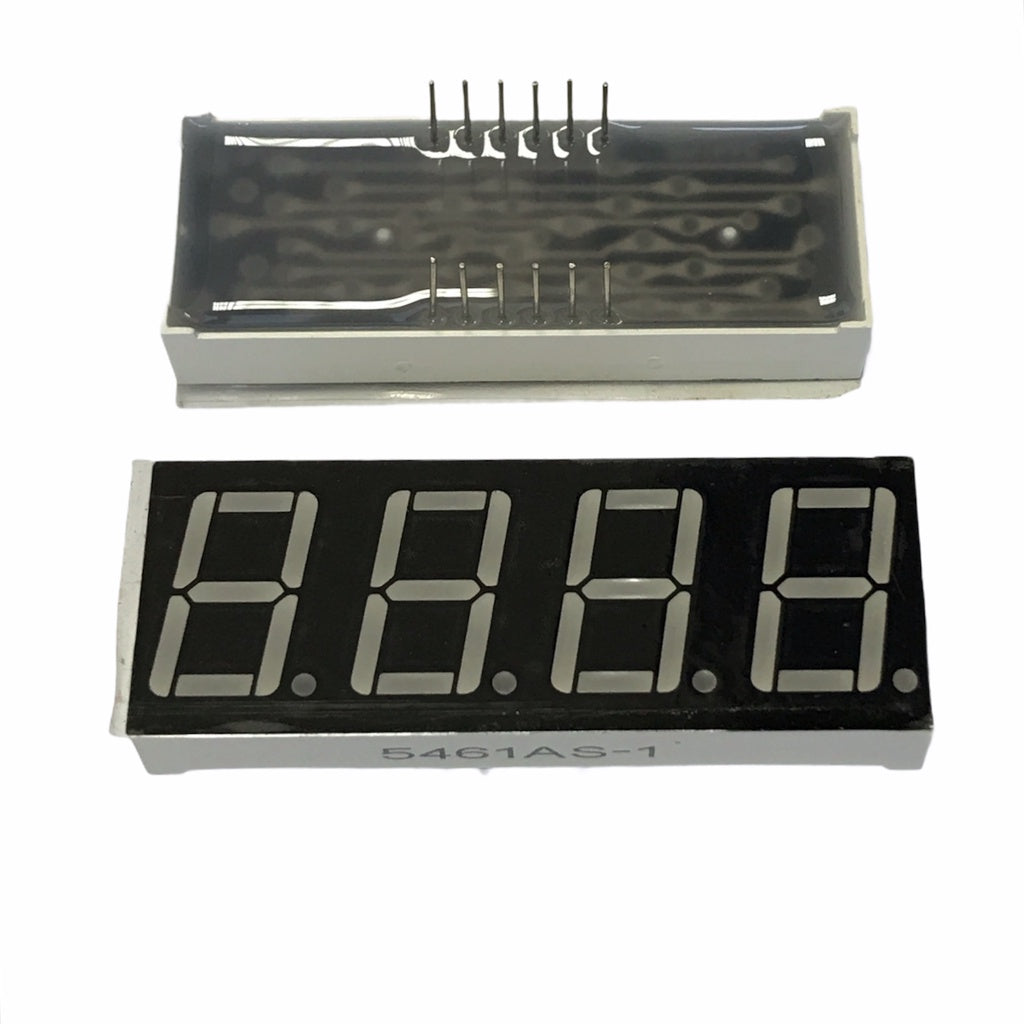

The 0.56 inch Red 4 Digit 7 Segment LED Display CC 5461AS shows four red digits, each 0.56 inch (about 14 mm) tall, with a decimal point after every digit. It is a common cathode (CC) type with 12 pins: 8 segment pins shared by all digits and 4 digit-select pins, so it is driven by multiplexing from an Arduino or ESP32, or from a driver chip such as the MAX7219.

4 Digit 7 Segment LED Display Specifications

  • Model: 5461AS
  • Digits: 4, each with 7 segments and a decimal point
  • Digit height: 0.56 inch (about 14 mm)
  • Colour: red
  • Configuration: common cathode (CC)
  • Pins: 12 (8 segment pins + 4 digit pins), 2.54 mm pitch
  • Segment forward voltage: about 2 V (red LED)

4 Digit 7 Segment LED Display Applications

  • Digital clocks and countdown timers
  • Counters, scoreboards and frequency displays
  • Showing sensor readings such as temperature or voltage
  • Learning multiplexing with Arduino in electronics classes

What's in the Box

  • 1 × 5461AS 4-digit 7-segment display, red, common cathode

Tip: Put a current-limiting resistor (220 Ω to 330 Ω at 5 V) on each of the 8 segment pins, and switch the 4 digit pins to ground, ideally through NPN transistors, because one digit pin carries the current of all its lit segments. The SevSeg library for Arduino handles the multiplexing for you.
