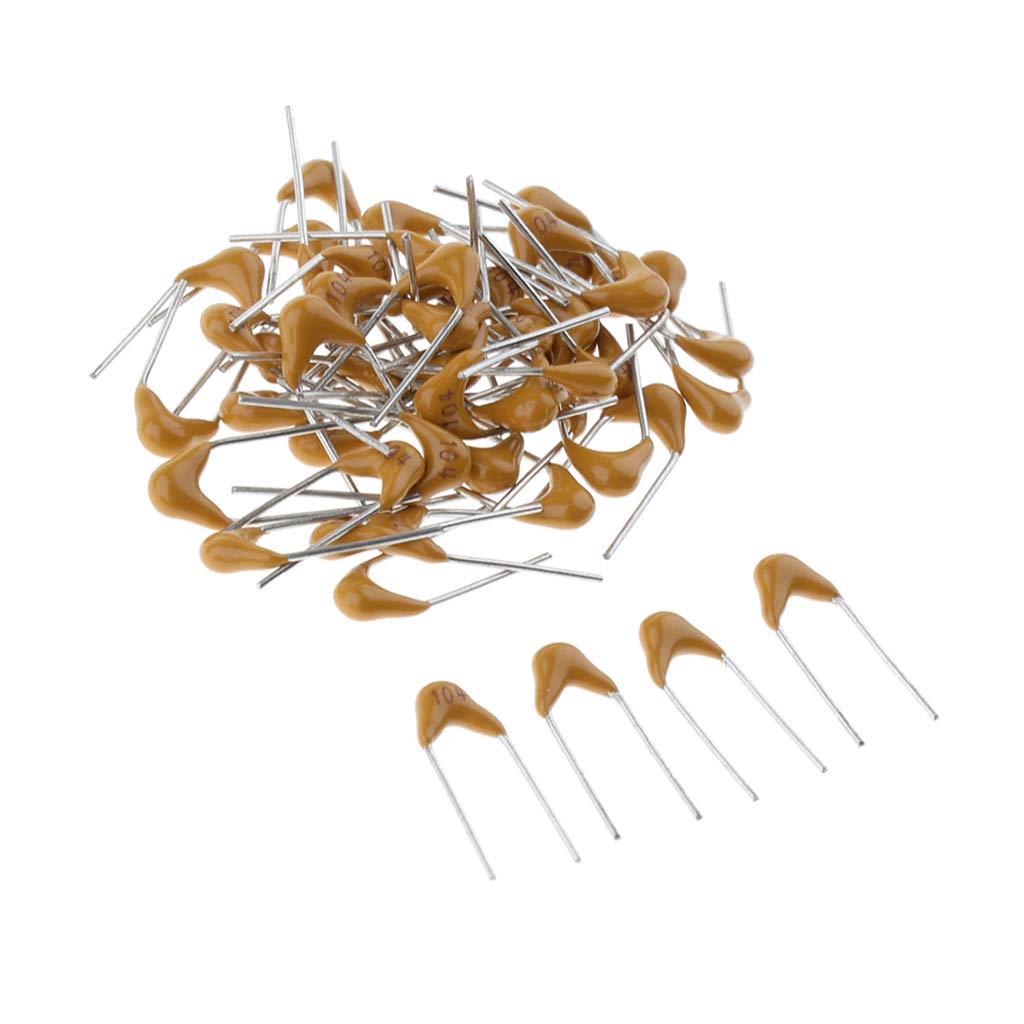

Ceramic Capacitor (104) 100nF 0.1uf 50V (5 pcs)

The Ceramic Capacitor (104) 100nF is a non-polarised ceramic capacitor with a capacitance of 100 nF (0.1 µF) and a 50 V rating, sold in a pack of 5. The 100 nF value is the standard decoupling capacitor placed next to the power pins of almost every IC and microcontroller, so it is one of the most useful parts to keep in your component drawer.

Ceramic Capacitor (104) 100nF Specifications

• Capacitance: 100 nF (0.1 µF, 100,000 pF)
• Marking code: 104 (10 followed by 4 zeros, in pF)
• Voltage rating: 50 V
• Type: ceramic, non-polarised
• Pack size: 5 pieces

Ceramic Capacitor (104) 100nF Applications

• Decoupling (bypass) capacitors on the supply pins of microcontrollers, 555 timers and 74-series logic chips
• Filtering noise on Arduino, ESP32 and sensor power lines
• Suppressing brush noise across small DC motors
• Debouncing push buttons together with a resistor
• Coupling and RC filter circuits

What's in the Box

• 5 × 100 nF (104) 50 V ceramic capacitors

Tip: Ceramic capacitors have no polarity, so they can be fitted either way round. For decoupling, place the capacitor as close as possible to the IC's VCC and GND pins and keep the leads short; one capacitor per IC is a good rule.
