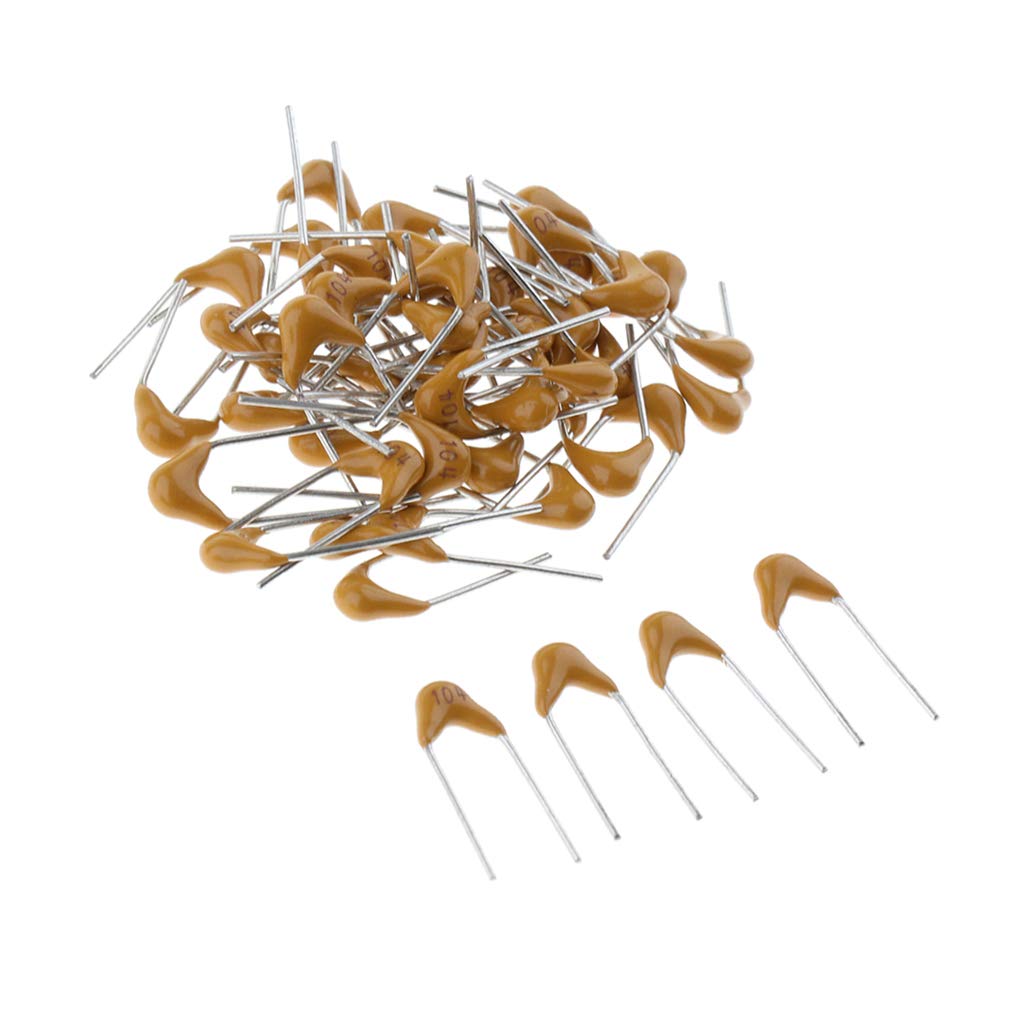

Ceramic Capacitor (109) 1pF 50V (5 pcs)

The Ceramic Capacitor (109) 1pF is a non-polarised ceramic capacitor with a very small capacitance of 1 pF and a 50 V rating, sold in a pack of 5. Values this small are used in RF and high-frequency circuits for fine tuning, impedance matching and light coupling between stages, where even a few picofarads make a difference.

Ceramic Capacitor (109) 1pF Specifications

• Capacitance: 1 pF (1.0 pF)
• Marking code: 109 (10 × 0.1 pF; a third digit of 9 means multiply by 0.1)
• Voltage rating: 50 V
• Type: ceramic, non-polarised
• Pack size: 5 pieces

Ceramic Capacitor (109) 1pF Applications

• RF matching and antenna circuits
• Fine tuning the frequency of oscillators
• High-frequency filters
• Small coupling capacitors in radio and VHF circuits
• RF and communication electronics labs

What's in the Box

• 5 × 1 pF (109) 50 V ceramic capacitors

Tip: Ceramic capacitors have no polarity, so they can be fitted either way round. At such small values the stray capacitance of a breadboard, a few picofarads between rows, can be larger than the capacitor itself, so build RF circuits on a PCB with very short leads.
