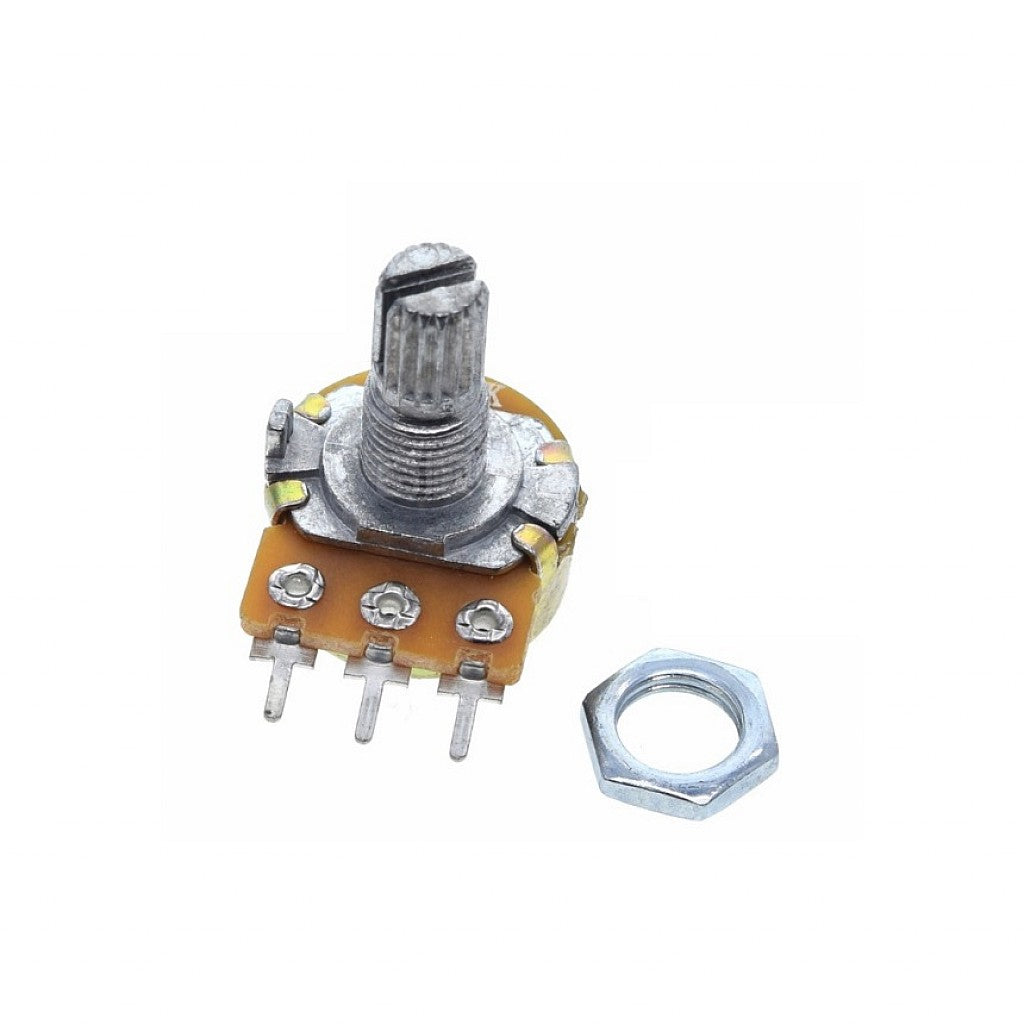

10K Potentiometer 15mm Shaft WH148 AC025 10K

The 10K Potentiometer 15mm Shaft WH148 is a single-turn rotary potentiometer with a 10 kΩ track, three pins and a 15 mm shaft that takes a standard knob. The WH148 is one of the most common panel potentiometers in hobby electronics, used as a control knob with Arduino, as an LCD contrast adjuster and in audio and power supply projects.

10K Potentiometer 15mm Shaft WH148 Specifications

• Resistance: 10 kΩ between the outer pins
• Series: WH148
• Type: rotary, single turn, about 300° rotation
• Shaft: 15 mm long, 6 mm diameter
• Pins: 3 (two track ends and the wiper)
• Mounting: threaded bushing for panel mounting

10K Potentiometer 15mm Shaft WH148 Applications

• Analog input knob for Arduino and ESP32 projects
• Contrast adjustment for LCD1602 displays
• Speed control input for PWM motor controllers
• Volume, tone and level controls
• Adjustable voltage dividers on test circuits

What's in the Box

• 1 × WH148 10 kΩ potentiometer, 15 mm shaft

Tip: Connect the outer pins to 5 V and GND and the middle pin (wiper) to an analog input; swapping the outer pins reverses the direction of the knob. Do not pass motor or LED current through the potentiometer itself.
