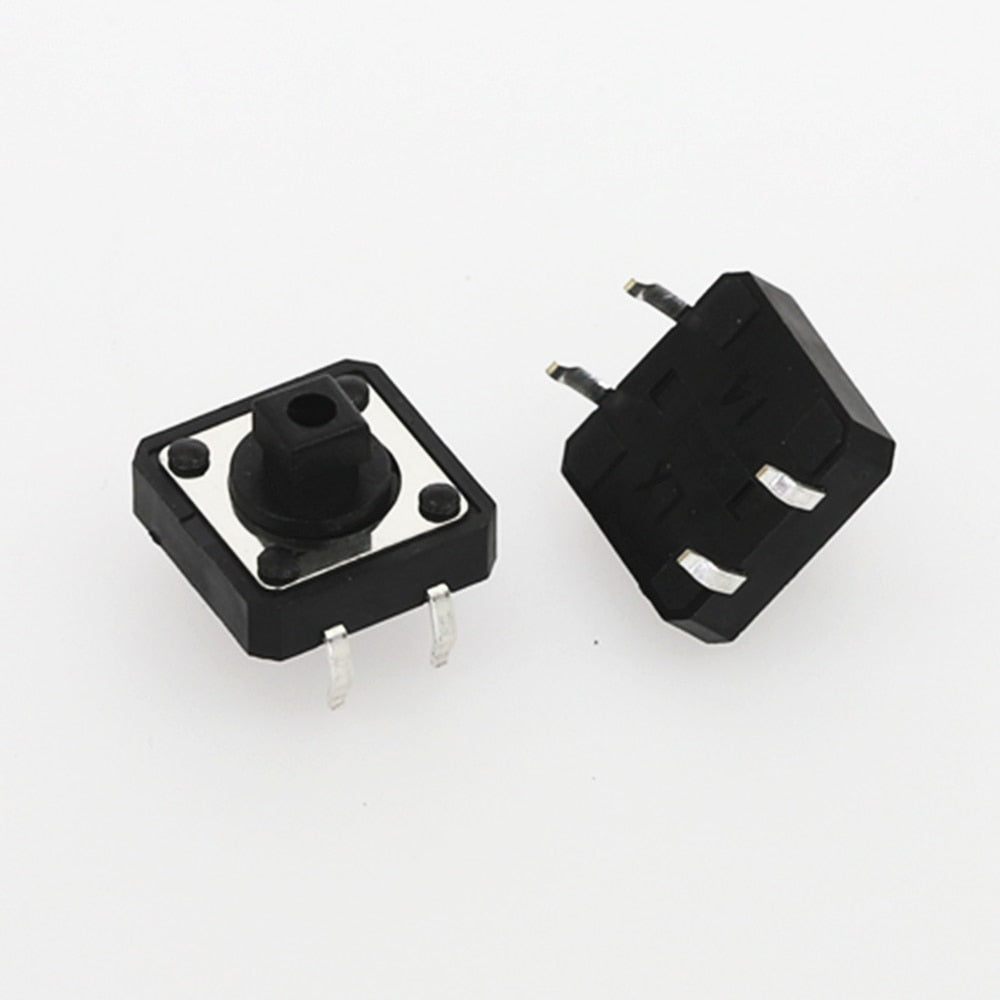

12x12x7.3mm Tactile Push Button Switch Square ( 5pcs)

The 12x12x7.3mm Tactile Push Button switch with a square button is a momentary switch sold in a pack of 5. It closes the circuit only while pressed and springs back with a click you can feel when released. The 12 × 12 mm body is larger than the common 6 × 6 mm button, so it is easier to press on keypads, control panels and student projects.

12x12x7.3mm Tactile Push Button Specifications

• Dimensions: 12 × 12 × 7.3 mm
• Button: square
• Action: momentary, normally open (closes only while pressed)
• Pins: 4, joined internally in two pairs
• Mounting: through-hole, for PCBs, perfboards and breadboards
• Pack size: 5 pieces

12x12x7.3mm Tactile Push Button Applications

• Digital inputs for Arduino, ESP32 and Raspberry Pi projects
• Start, stop and reset buttons on control panels and custom PCBs
• Keypads, game controllers and menu navigation
• Electronics classes and STEM kits

What's in the Box

• 5 × 12 × 12 × 7.3 mm tactile push buttons (square)

Tip: Use INPUT_PULLUP in your Arduino code so the pin reads LOW only while the button is pressed. If the input reads as always pressed, the button is wired across an internally joined pair: rotate it 90° or check the pins with a multimeter.
