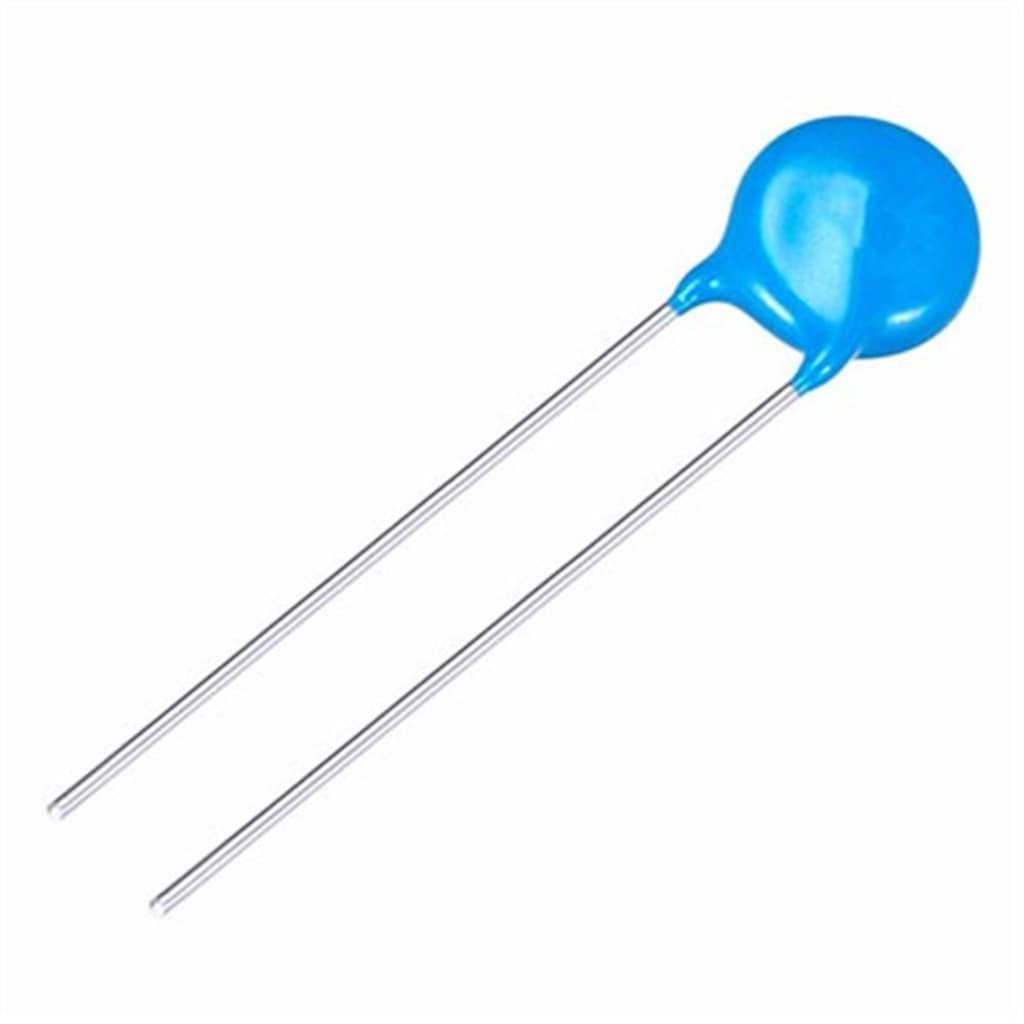

Ceramic Capacitor 150pF 330V 331K 5pcs

The Ceramic Capacitor 150pF 330V 331K is a disc-type metal oxide varistor (MOV) with a varistor voltage of 330 V, sold in a pack of 5. Although it is listed as a ceramic capacitor, the 331K code and the 330 V rating mark it as a varistor: a voltage-dependent resistor that barely conducts at normal working voltage and clamps voltage spikes and surges to protect the rest of the circuit.

Ceramic Capacitor 150pF 330V 331K Specifications

• Type: metal oxide varistor (MOV), disc, 2 radial leads, through-hole
• Varistor voltage: 330 V (code 331 = 33 × 10¹), measured at 1 mA DC
• Tolerance: ±10% (letter K)
• Capacitance: 150 pF (typical, as listed)
• Typical maximum continuous voltage for the 331K code: 210 V AC / 270 V DC
• Polarity: none, works in both directions
• Pack size: 5 pieces

Ceramic Capacitor 150pF 330V 331K Applications

• Surge protection on 110–127 V AC supplies and other AC lines up to 210 V
• Transient protection on DC circuits up to 270 V
• Suppressing voltage spikes from motors, relays, solenoids and other inductive loads
• Repairing power supplies, chargers and household appliances

What's in the Box

• 5 × 330 V (331K) varistors

Tip: Connect the varistor in parallel with the line you want to protect, after a fuse, so that if it ever fails short the fuse opens. The 331K is too low for 220–230 V mains; use a 431K or 471K varistor there instead.
