16:1 MUX 74150

The 16:1 MUX 74150 is a TTL data selector/multiplexer that routes one of 16 data inputs to a single output, chosen by a 4-bit select code. It also has an active-low strobe (enable) input. It is a standard part in digital electronics labs and is used for data routing, parallel-to-serial conversion and logic function generation.

16:1 MUX 74150 Specifications

• Function: 1-of-16 data selector/multiplexer
• Data inputs: 16
• Select inputs: 4 (A, B, C, D)
• Enable: strobe input, active low
• Output: one inverted output that gives the complement of the selected input
• Logic family: TTL, 5 V supply
• Pins: 24

16:1 MUX 74150 Applications

• Selecting one of 16 signals with a 4-bit address
• Parallel-to-serial data conversion
• Generating any 4-variable logic function from a truth table
• Scanning switches and keypads
• University and school digital logic labs

What's in the Box

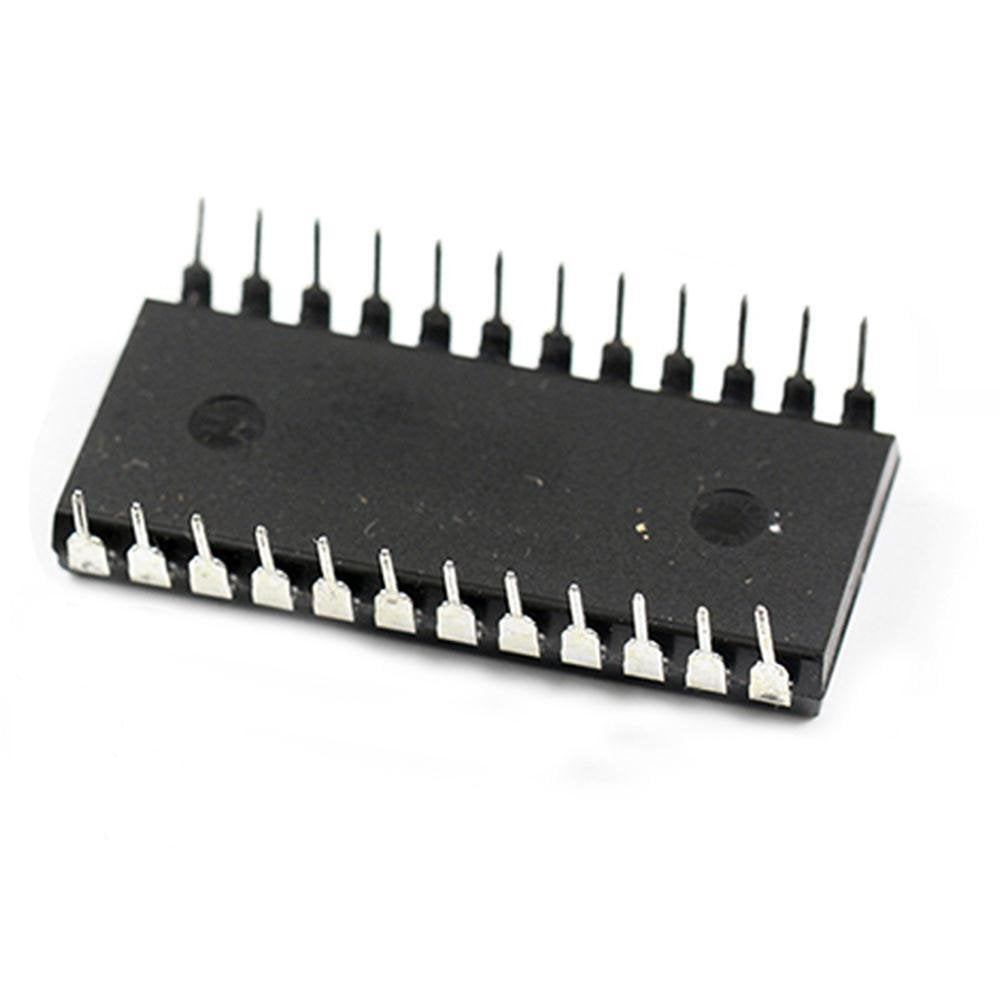

• 1 × 74150 16-to-1 multiplexer IC

Tip: Because the output is inverted, add an inverter such as a 7404 if you need the true data. Hold the strobe low to enable the chip, run it from a regulated 5 V supply and fit a 100 nF decoupling capacitor near the power pins.
