16 Channel Analog Multiplexer 74HC4067

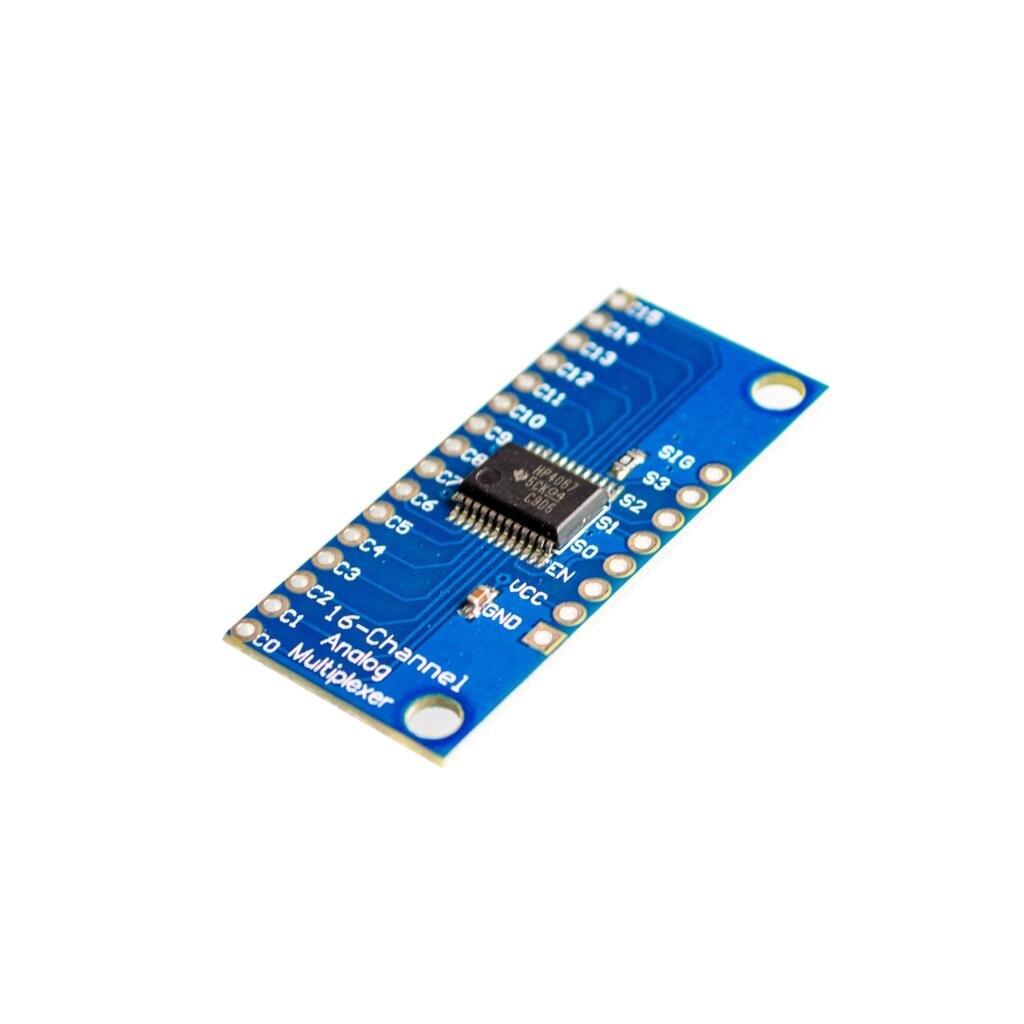

The 16 Channel Analog Multiplexer 74HC4067 connects one common signal pin to any of 16 channels, chosen with four digital select lines. It works in both directions with analog and digital signals, so a single Arduino or ESP32 analog input can read up to 16 sensors, potentiometers or buttons one after another, saving many I/O pins.

16 Channel Analog Multiplexer 74HC4067 Specifications

• Chip: 74HC4067 high-speed CMOS multiplexer/demultiplexer
• Channels: 16 (C0–C15) to 1 common pin (SIG)
• Select inputs: 4 (S0–S3), binary addressed
• Enable: active LOW (pull EN to GND to switch on)
• Signals: analog or digital, bidirectional
• Supply voltage: 2 V to 6 V

16 Channel Analog Multiplexer 74HC4067 Applications

• Reading many sensors or potentiometers with one analog pin
• Expanding inputs for button panels and MIDI controllers
• Switching audio or low-level analog signals
• Scanning sensor arrays such as line-follower bars
• Any project where the microcontroller is short of pins

What's in the Box

• 1 × 74HC4067 16-channel analog multiplexer

Tip: Power it from the same voltage as your microcontroller (3.3 V for ESP32, 5 V for Arduino Uno) and keep signals between GND and VCC. Tie EN to GND, set S0–S3 to the channel number in binary, then wait a moment before reading SIG.
