Timer 555 NE555

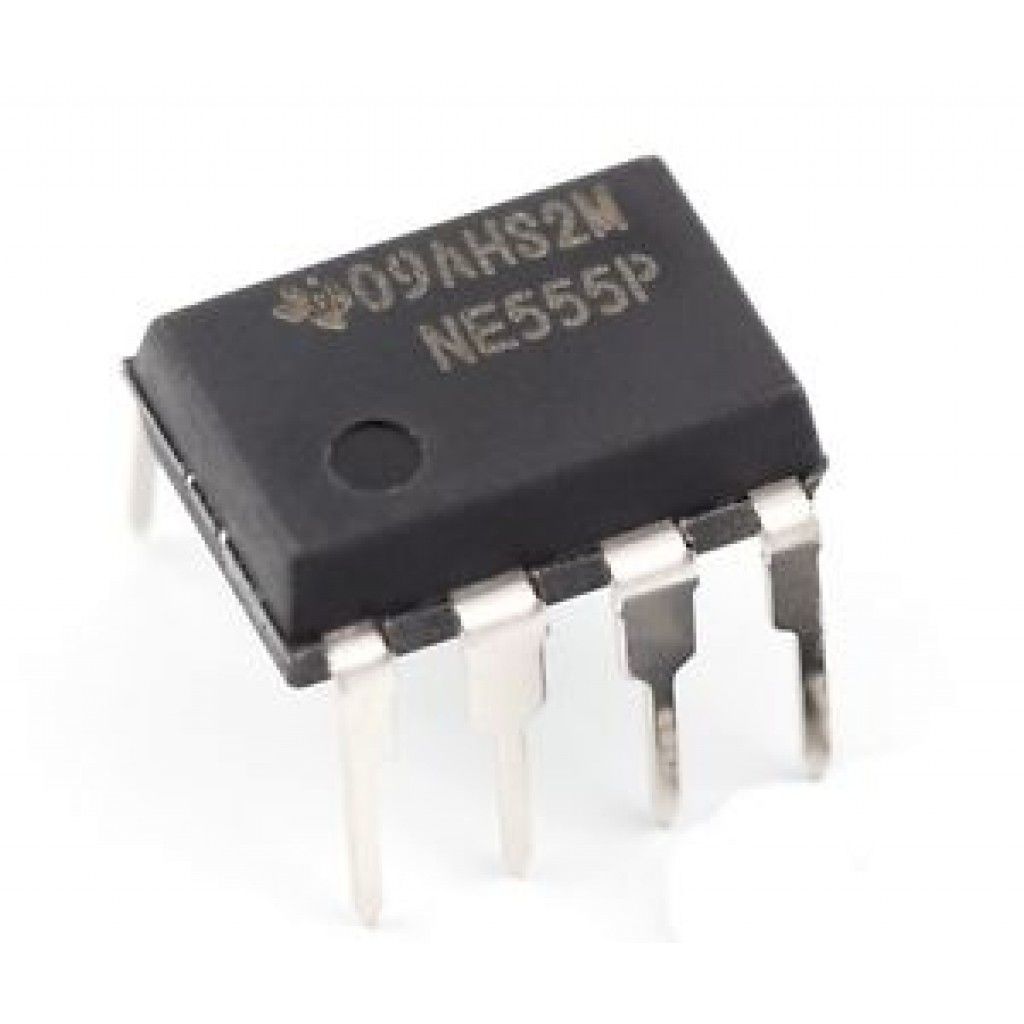

The Timer 555 NE555 is the classic 555 timer IC, used to build oscillators, pulse generators and time delays with just a few resistors and capacitors. It works in astable mode, giving a continuous square wave to flash an LED or sound a buzzer, or in monostable mode, giving a single pulse of a set length. Its output can drive LEDs, buzzers and small relays directly.

Timer 555 NE555 Specifications

• Supply voltage: 4.5 V to 16 V
• Output current: up to 200 mA, sink or source
• Operating modes: astable and monostable
• Timing range: microseconds to hours
• Output: TTL-compatible
• Pins: 8 (1 GND, 2 TRIG, 3 OUT, 4 RESET, 5 CONT, 6 THRES, 7 DISCH, 8 VCC)

Timer 555 NE555 Applications

• LED flashers and blinking lights
• Tone and alarm generators with a buzzer or speaker
• Delay timers and switch debounce circuits
• PWM signals for LED dimming and small motor speed control
• Electronics classes and lab experiments

What's in the Box

• 1 × NE555 timer IC

Tip: In astable mode the frequency is about 1.44 ÷ ((R1 + 2 × R2) × C). Tie pin 4 (RESET) to VCC when not used, and connect a 10 nF capacitor from pin 5 to GND for stable timing. Add a diode across any relay coil it drives.
