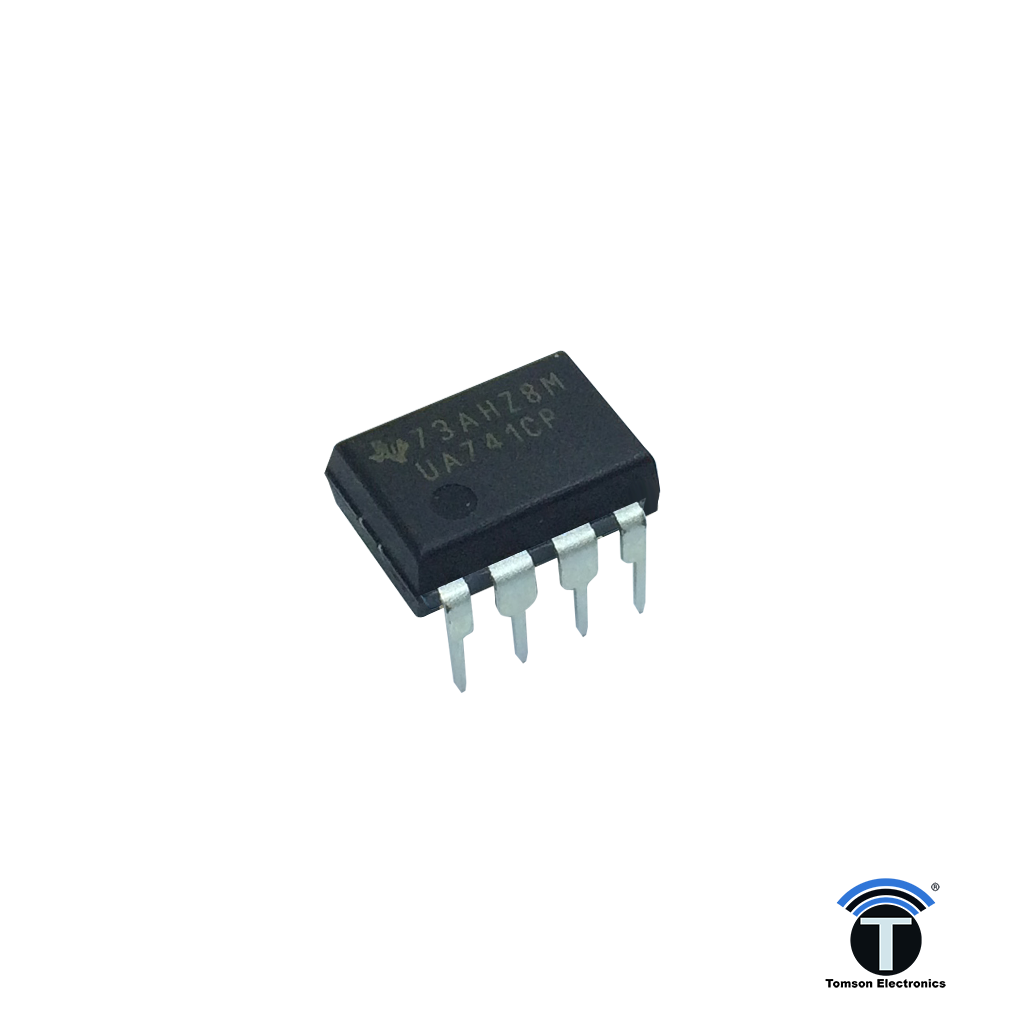

OP-Amp UA741

The OP-Amp UA741 is the classic general-purpose operational amplifier, with one op-amp in an 8-pin package. It has internal frequency compensation and output short-circuit protection, so it is stable and forgiving in lab circuits. It is widely used in electronics courses to learn inverting and non-inverting amplifiers, comparators, integrators and active filters.

OP-Amp UA741 Specifications

• Channels: 1 op-amp
• Supply voltage: typically ±5 V to ±15 V (dual supply)
• Unity-gain bandwidth: about 1 MHz
• Slew rate: about 0.5 V/µs
• Open-loop gain: about 200 V/mV (typical)
• Protection: output short-circuit protection, internal compensation
• Pins: 8 (2 IN−, 3 IN+, 4 V−, 6 OUT, 7 V+, 1 and 5 offset null)

OP-Amp UA741 Applications

• Inverting and non-inverting amplifiers
• Voltage comparators and level detectors
• Active low-pass and high-pass filters
• Integrators, differentiators and summing amplifiers
• Analog electronics labs and university courses

What's in the Box

• 1 × UA741 op-amp IC

Tip: The UA741 is not rail-to-rail: its output stays one to two volts away from each supply rail, so it works best on ±12 V or ±15 V. For single 5 V Arduino projects, a rail-to-rail op-amp is usually a better choice.
